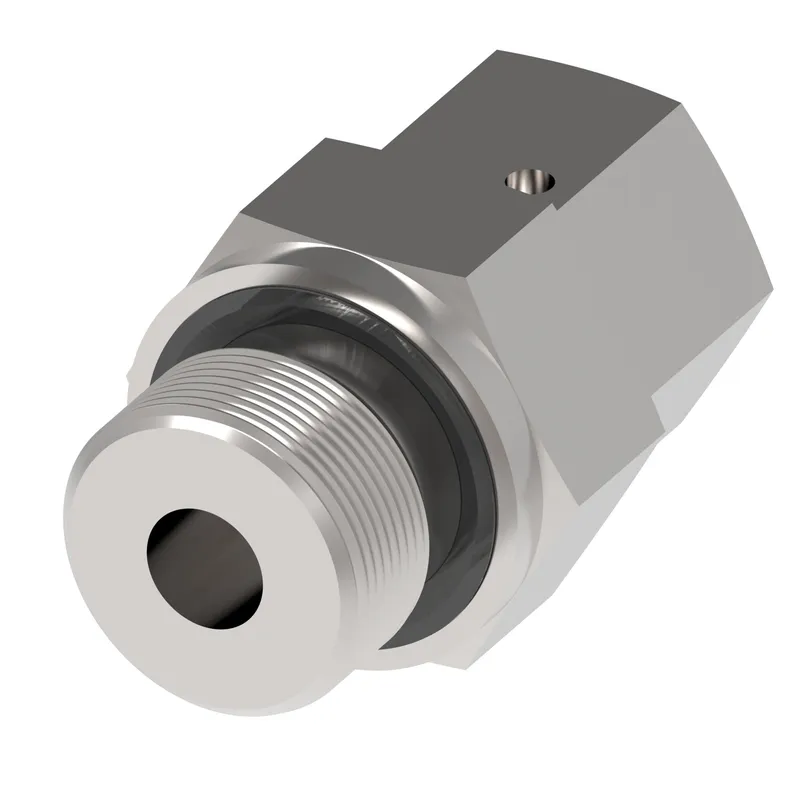

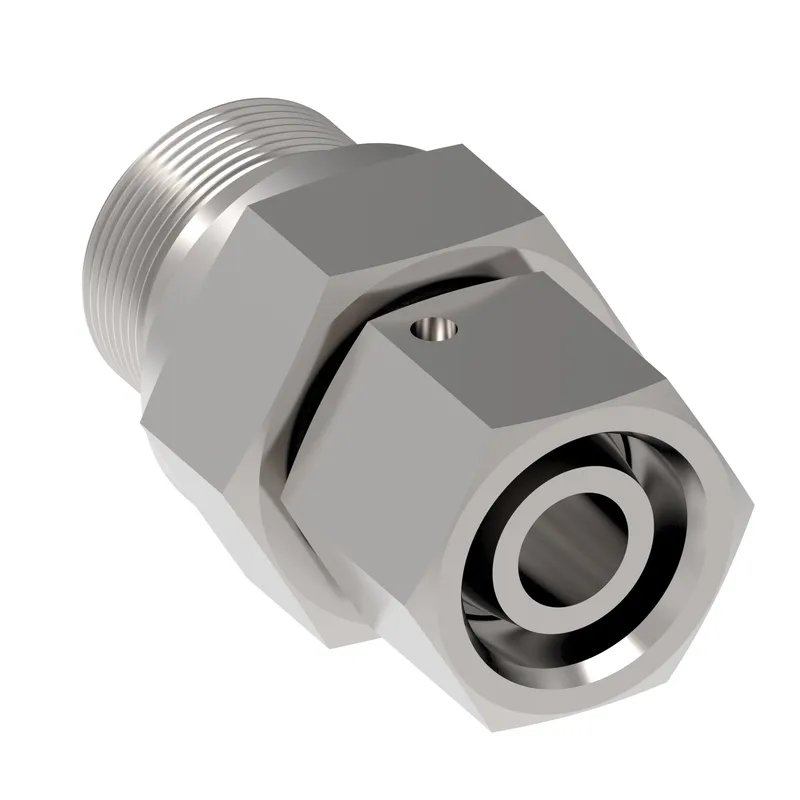

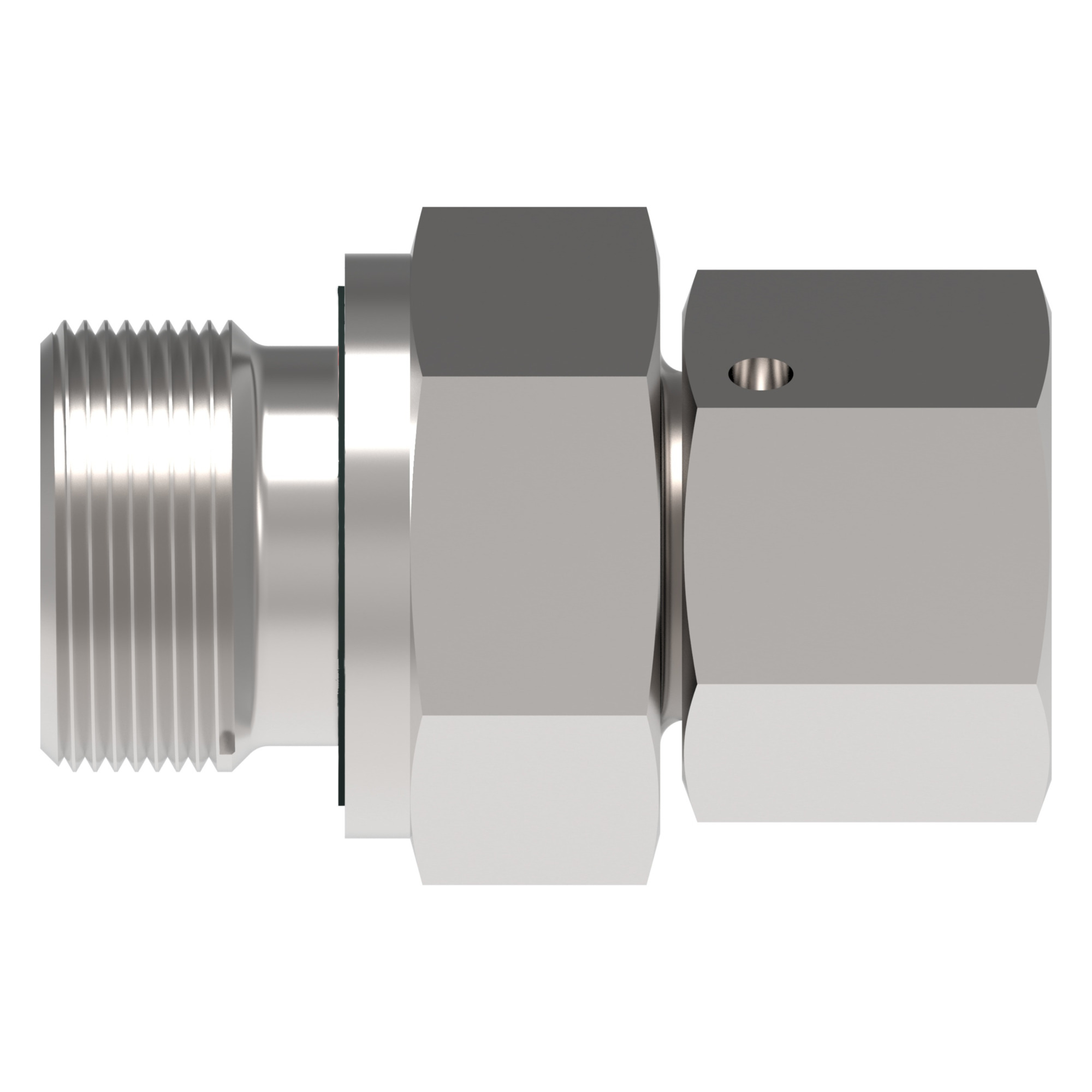

Danfoss WAL611431

TUBE FTG, EGESD 20 S/R1/2-WD A4GS

MPN: WAL611431
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL611431?

Danfoss TUBE FTG, EGESD 20 S/R1/2-WD A4GS, manufacturer part number WAL611431. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	20S
End Type 1	Male ISO 9974-2 type E (S)
End Type 2	24 deg. DKO swivel heavy duty
Finish plating	Guardian Seal
Hex size 1 MM	32.000
Hex size 2 MM	36.000
Item type	Adjustable connector
Model Code 1	EGESD 20 SM-WD A4GS
Product height in	1.417
Product height mm	35.992
Product length in	2.145
Product length mm	54.483
Product material	Carbon steel
Product serial name	EGESD … M-WD
Product width in	1.417
Product width mm	35.992
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 2	M30x2
Tube outside diameter 1 MM	20.0
Tube outside diameter 2 MM	20.0
Working pressure bar	420.0
