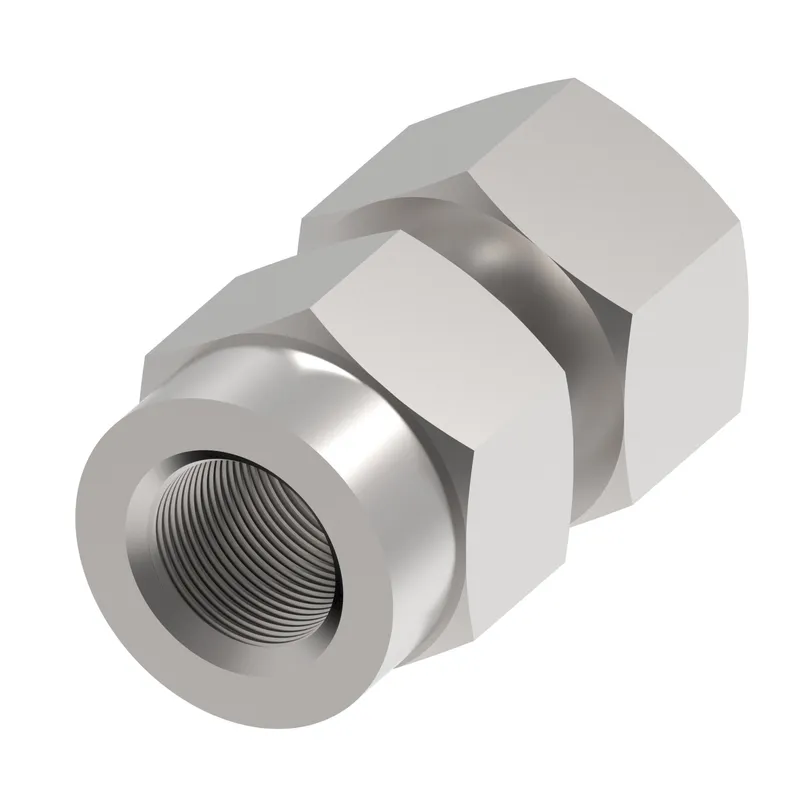

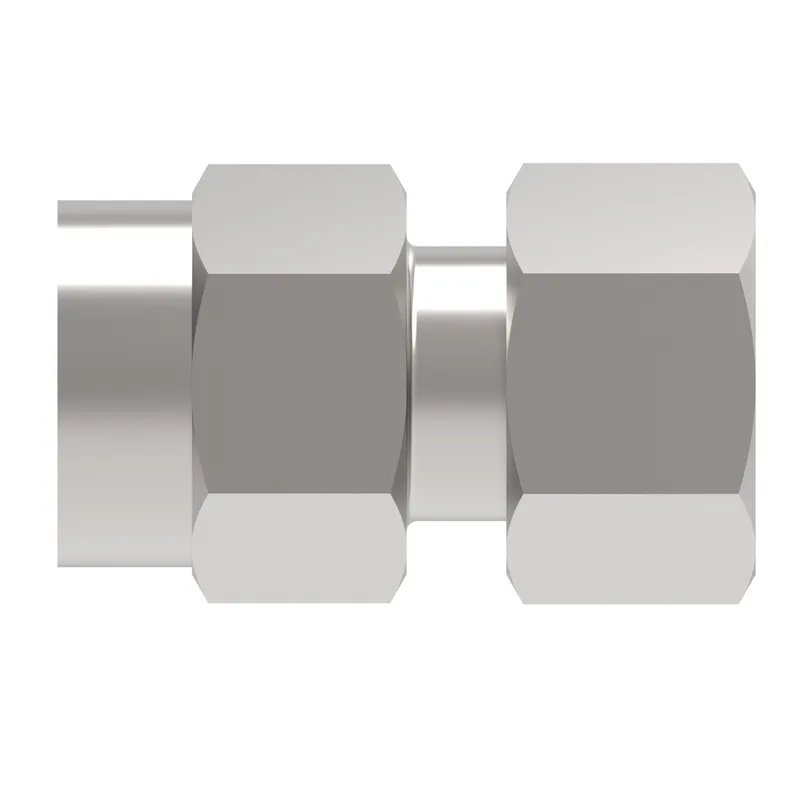

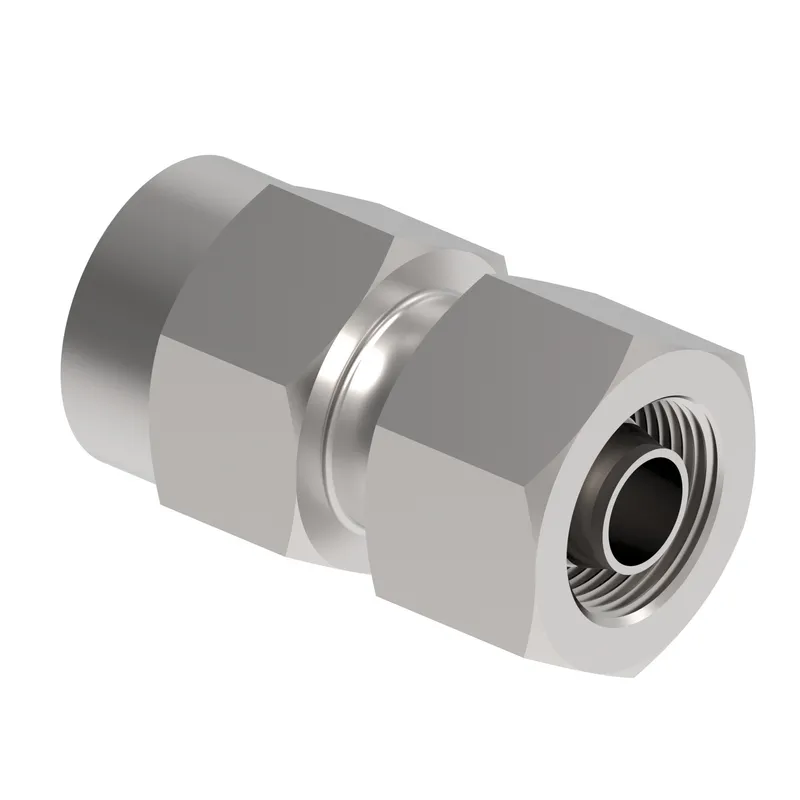

Danfoss WAL611390

TUBE FTG, EMASD 12 S/R1/4 A4GS

MPN: WAL611390
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL611390?

Danfoss TUBE FTG, EMASD 12 S/R1/4 A4GS, manufacturer part number WAL611390. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 1	12S
End Type 1	24 deg. DKO swivel heavy duty
End Type 2	Female 1179-1 BSPP
Finish plating	Guardian Seal
Hex size 1 IN	0.748
Hex size 2 IN	0.944
Item type	Gauge fitting
Model Code 1	EMASD 12 S/R1/4 VI A4GS
Product height in	0.944
Product height mm	23.978
Product length in	1.535
Product length mm	38.989
Product material	Carbon steel
Product serial name	EMASD …
Product width in	0.944
Product width mm	23.978
Seal material	Fluorocarbon (FKM)
Sub brand	Waltech
Thread size 1	M20x1.5
Thread size 2	G 1/4
Tube outside diameter 1 IN	0.216
Tube outside diameter 2 IN	0.137
Working pressure bar	630.0
Working temperature max C	120
Working temperature min C	-40
