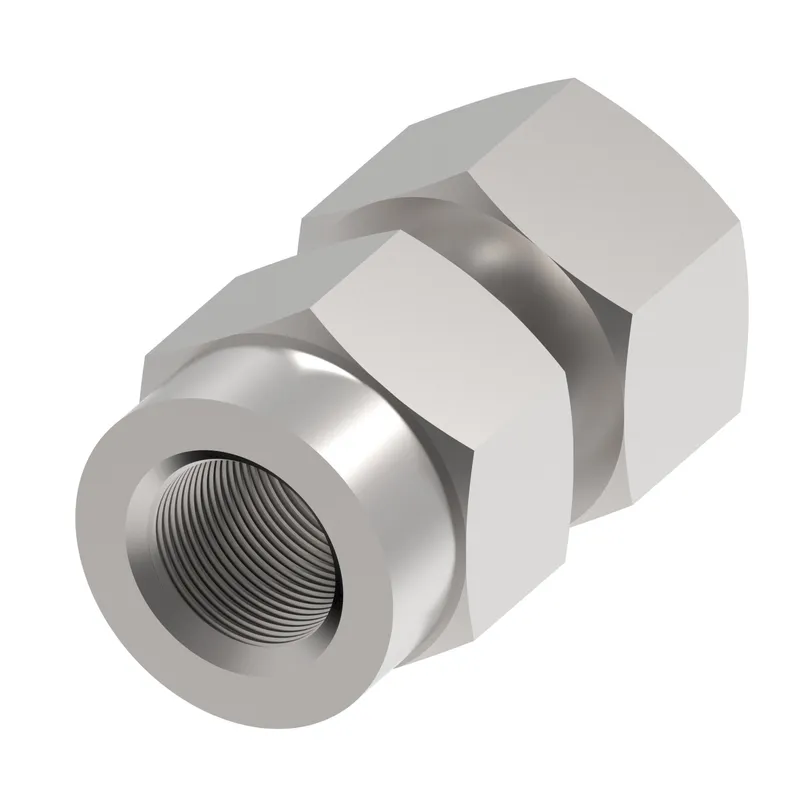

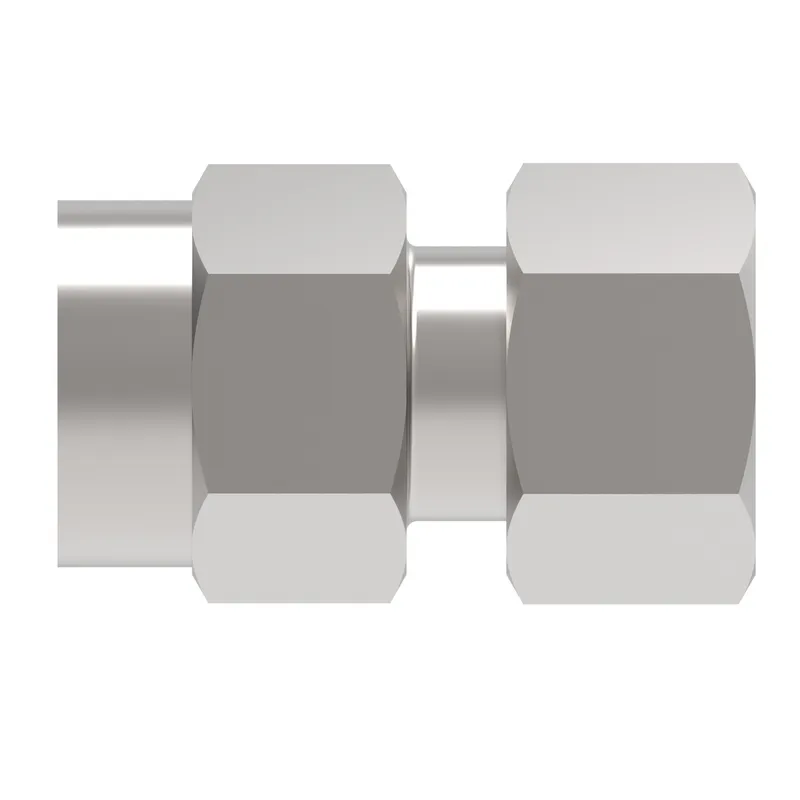

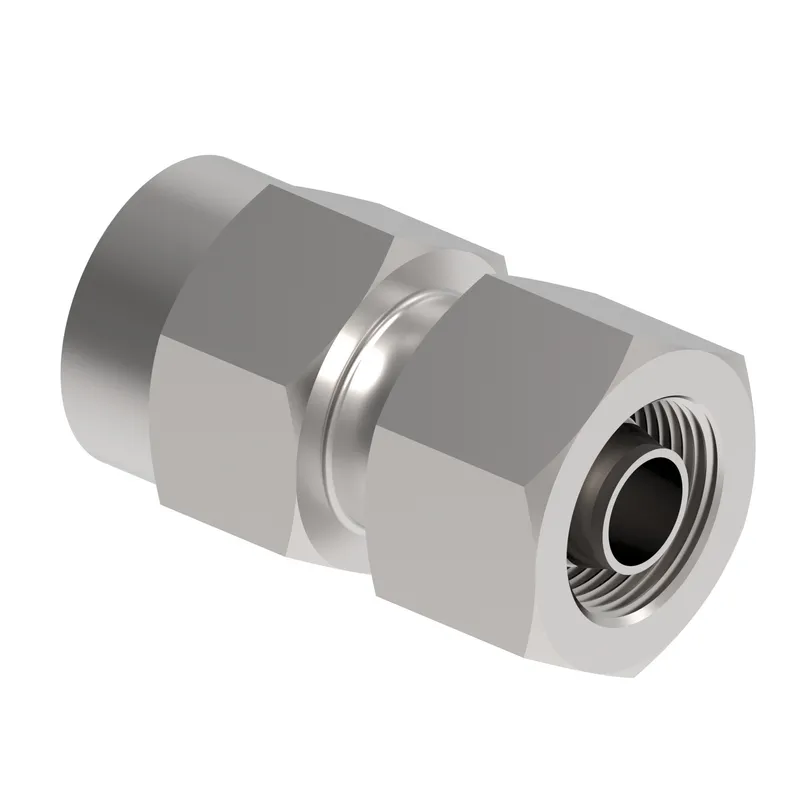

Danfoss WAL608982

TUBE FTG, EMASD 12 LR VI A4GS

MPN: WAL608982
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL608982?

Danfoss TUBE FTG, EMASD 12 LR VI A4GS, manufacturer part number WAL608982. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 1	12L
End Type 1	24 deg. DKO swivel light duty
End Type 2	Female ISO 9974-1 port
Hex size 1 MM	19.000
Hex size 2 MM	22.000
Item type	Gauge fitting
Model Code 1	EMASD 12 LR-VI-1.4571
Product height in	0.866
Product height mm	22.000
Product length in	1.595
Product length mm	40.500
Product material	316Ti Stainless steel
Product serial name	EMASD …
Product width in	0.866
Product width mm	22
Seal material	Fluorocarbon (FKM)
Sub brand	Waltech
Thread size 1	M18x1.5
Thread size 2	M18x1.5
Tube outside diameter 1 MM	12.0
Tube outside diameter 2 MM	12.0
Working pressure bar	400.0
Working temperature max C	400
Working temperature min C	-60
