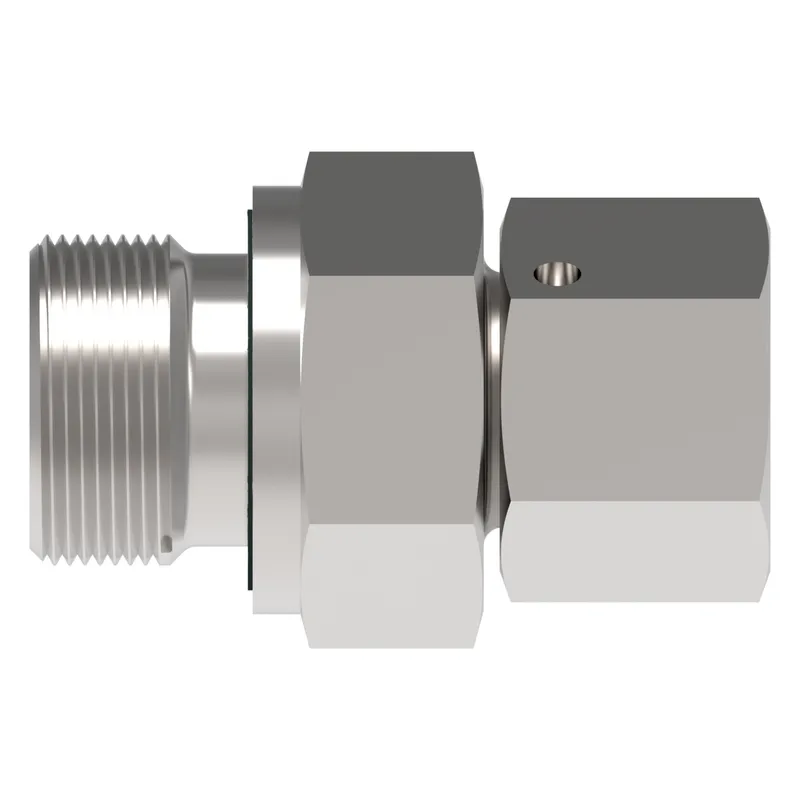

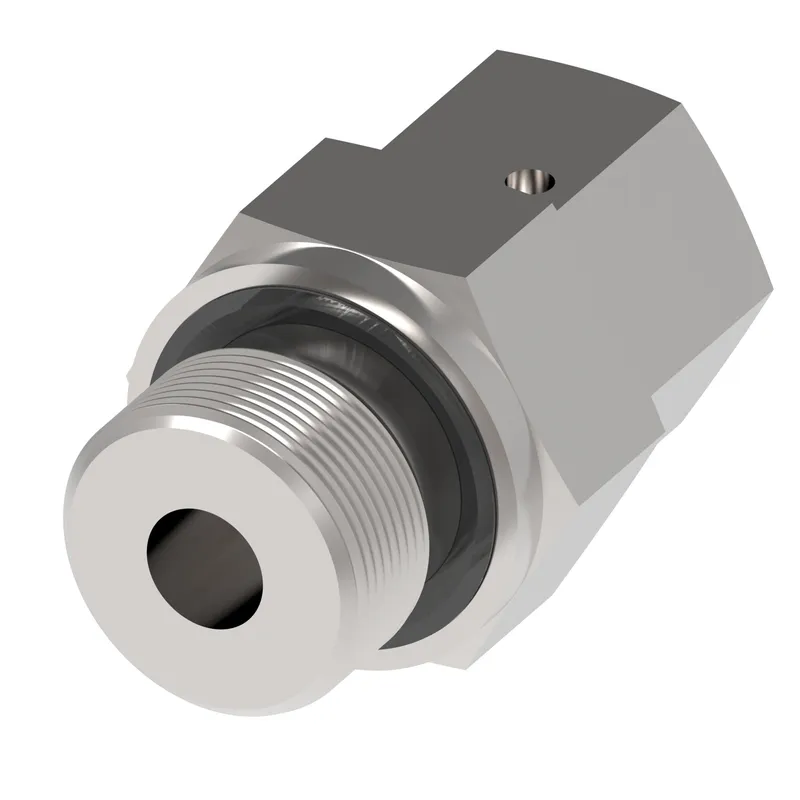

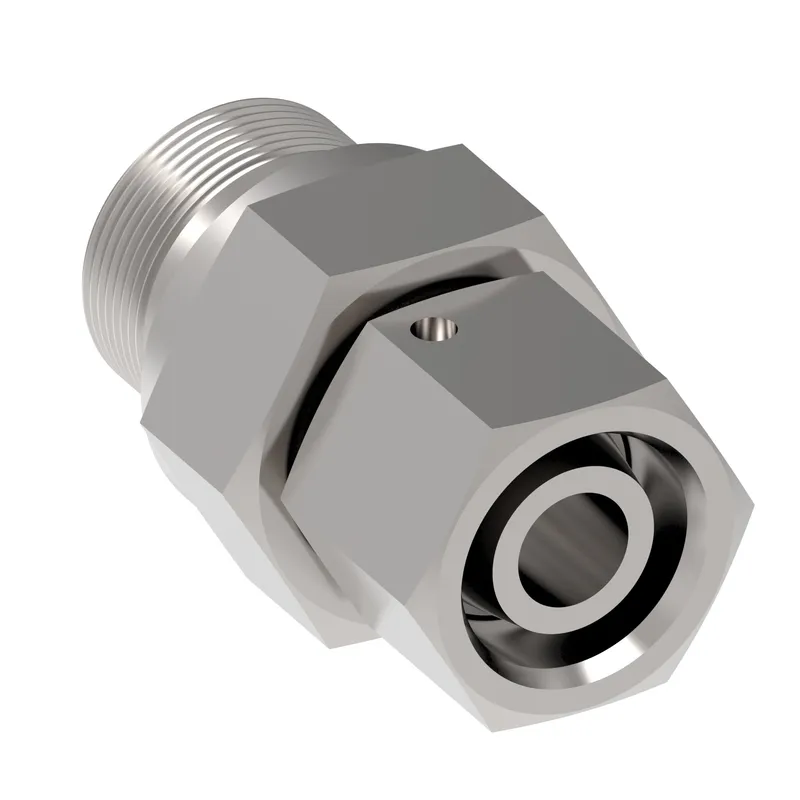

Danfoss WAL606296

TUBE FTG, EGESD 22 L/M22x1,5-WD A4GS

MPN: WAL606296
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL606296?

Danfoss TUBE FTG, EGESD 22 L/M22x1,5-WD A4GS, manufacturer part number WAL606296. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	22L
End Type 1	Male 1179-2 BSPP type E (L)
End Type 2	24 deg. DKO swivel light duty
Finish plating	Guardian Seal
Hex size 1 MM	32.000
Hex size 2 MM	36.000
Item type	Adjustable connector
Model Code 1	EGESD 22 L/R1/2-WD A4GS
Product height in	1.330
Product height mm	33.782
Product length in	1.880
Product length mm	47.752
Product material	Carbon steel
Product serial name	EGESD … R-WD
Product width in	1.410
Product width mm	35.814
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 1	G 1/2 A
Thread size 2	M30x2
Tube outside diameter 2 MM	22.0
Working pressure bar	250.0
Working temperature max C	120
Working temperature min C	-40
