TUBE FTG, EMASD 6 SR A4GS
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Tube fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can WAL605751 be shipped?
WAL605751 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up WAL605751 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for WAL605751 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL605751, subject to availability and destination.

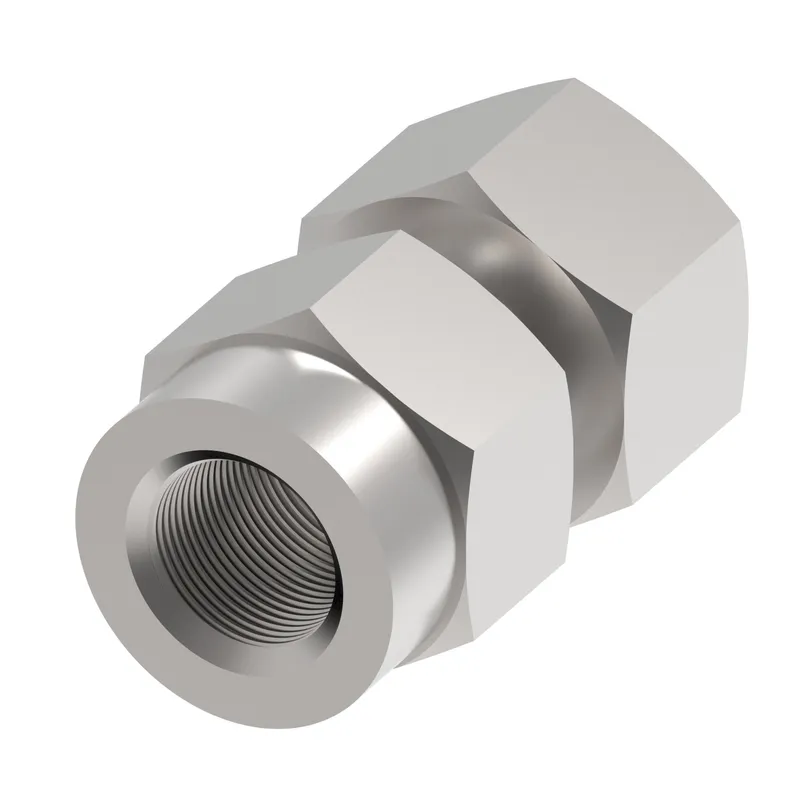

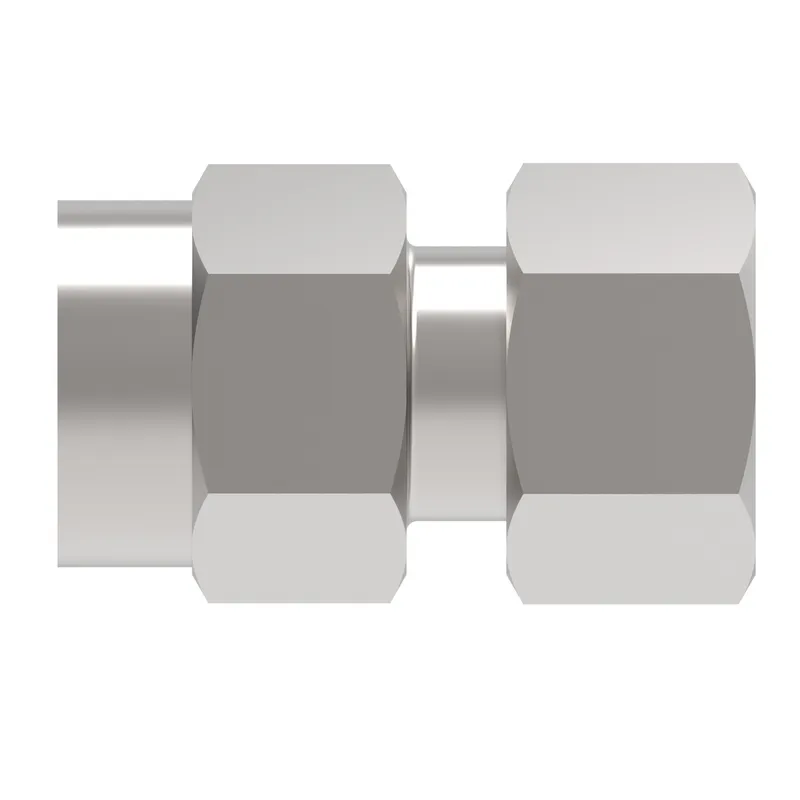

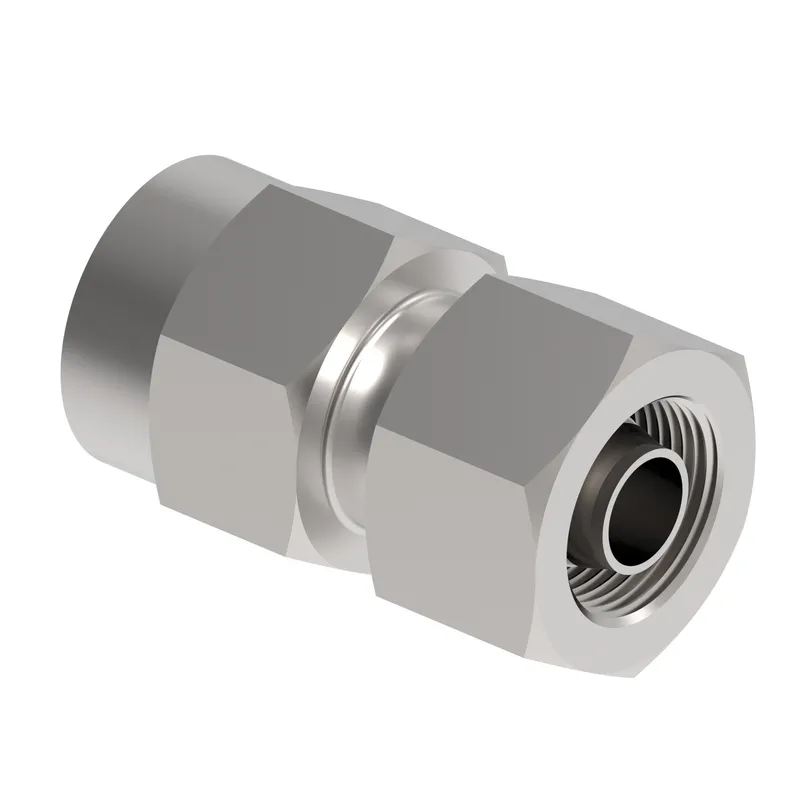

Danfoss TUBE FTG, EMASD 6 SR A4GS, manufacturer part number WAL605751. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Angle shape | Straight |
| Brand | Danfoss |
| Complete connector | No |
| End size 1 | 6S |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| End Type 2 | Female ISO 9974-1 port |
| Hex size 1 MM | 27.000 |
| Hex size 2 MM | 17.000 |
| Item type | Gauge fitting |
| Model Code 1 | EMASD 6 SR-VI-1.4571 |
| Product height in | 1.063 |
| Product height mm | 27.000 |
| Product length in | 1.772 |
| Product length mm | 45.000 |
| Product material | 316Ti Stainless steel |
| Product serial name | EMASD … |
| Product width in | 1.063 |
| Product width mm | 27 |
| Seal material | Fluorocarbon (FKM) |
| Sub brand | Waltech |
| Thread size 1 | M14x1.5 |
| Thread size 2 | M14x1.5 |
| Tube outside diameter 1 MM | 6.0 |
| Tube outside diameter 2 MM | 6.0 |
| Working pressure bar | 630.0 |
| Working temperature max C | 400 |
| Working temperature min C | -60 |
