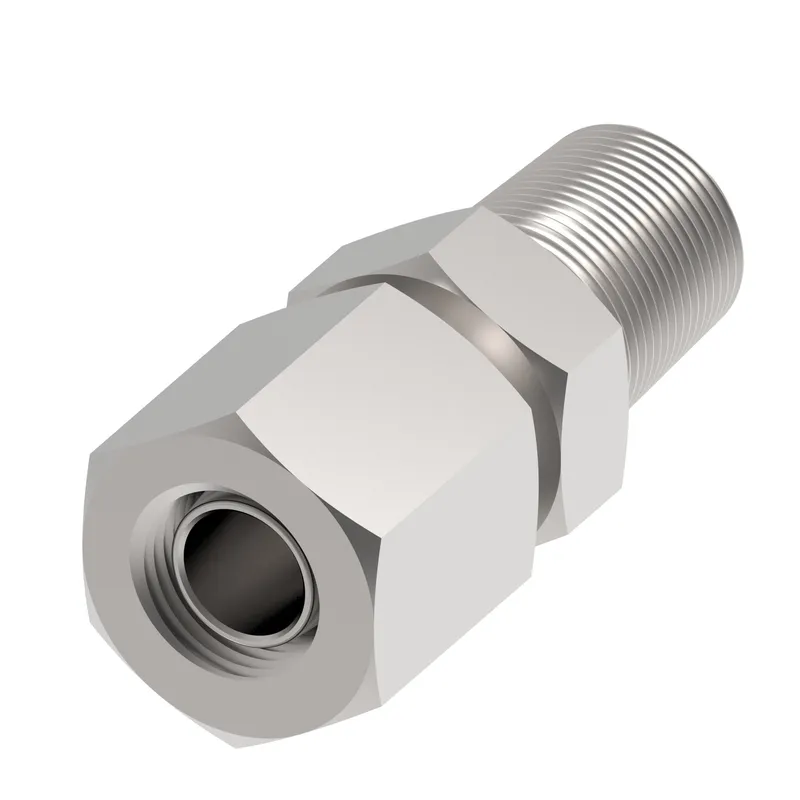

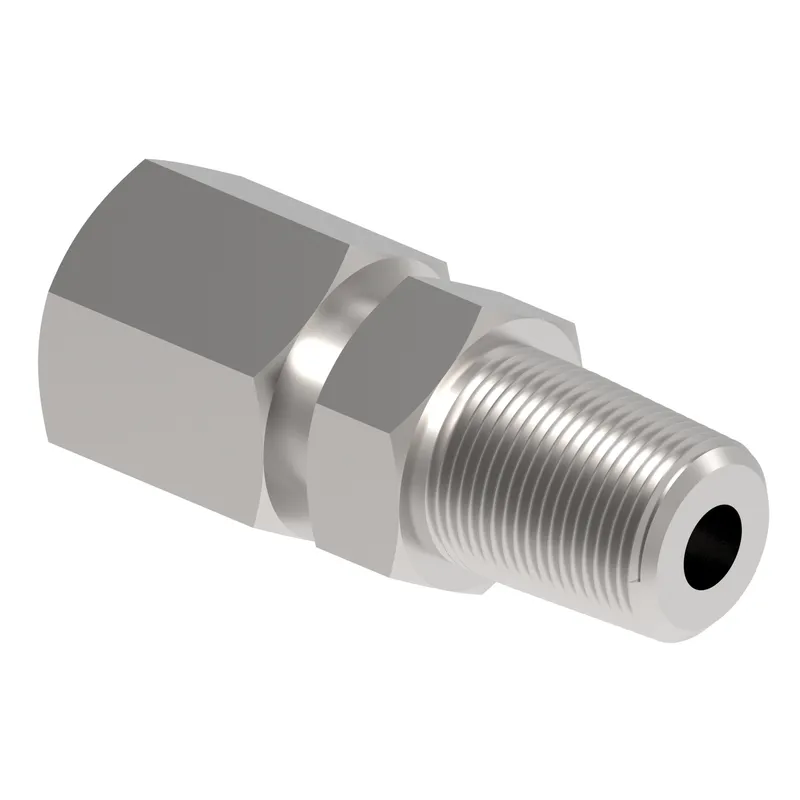

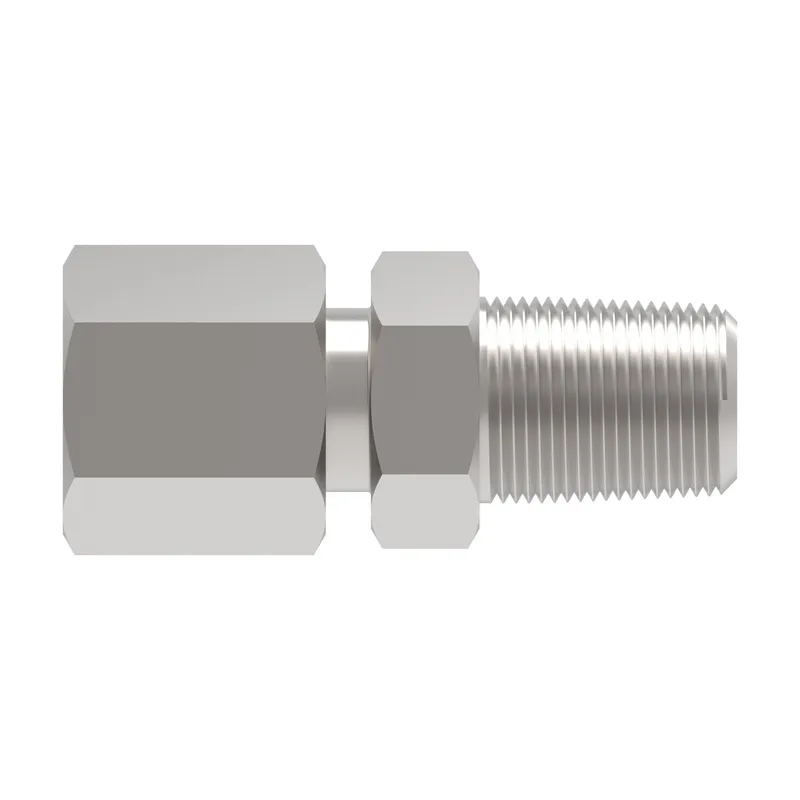

Danfoss WAL605737

TUBE FTG, EGESD 20 S/3/4NPT A4GS

MPN: WAL605737
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL605737?

Danfoss TUBE FTG, EGESD 20 S/3/4NPT A4GS, manufacturer part number WAL605737. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146152404
Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	20S
End Type 2	24 deg. DKO swivel heavy duty
Hex size 1 MM	30.000
Hex size 2 MM	36.000
Item type	Adjustable connector
Model Code 1	EGESD 20 S/3/4NPT-VI-1.4571
Product height in	1.417
Product height mm	36.000
Product length in	2.284
Product length mm	58.000
Product material	316Ti Stainless steel
Product serial name	EGESD … NPT
Product width in	1.417
Product width mm	36
Seal material	Fluorocarbon (FKM)
Sub brand	Waltech
Thread size 2	M30x2
Tube outside diameter 1 MM	20.0
Tube outside diameter 2 MM	20.0
Working pressure bar	400.0
Working temperature max C	400
Working temperature min C	-60
