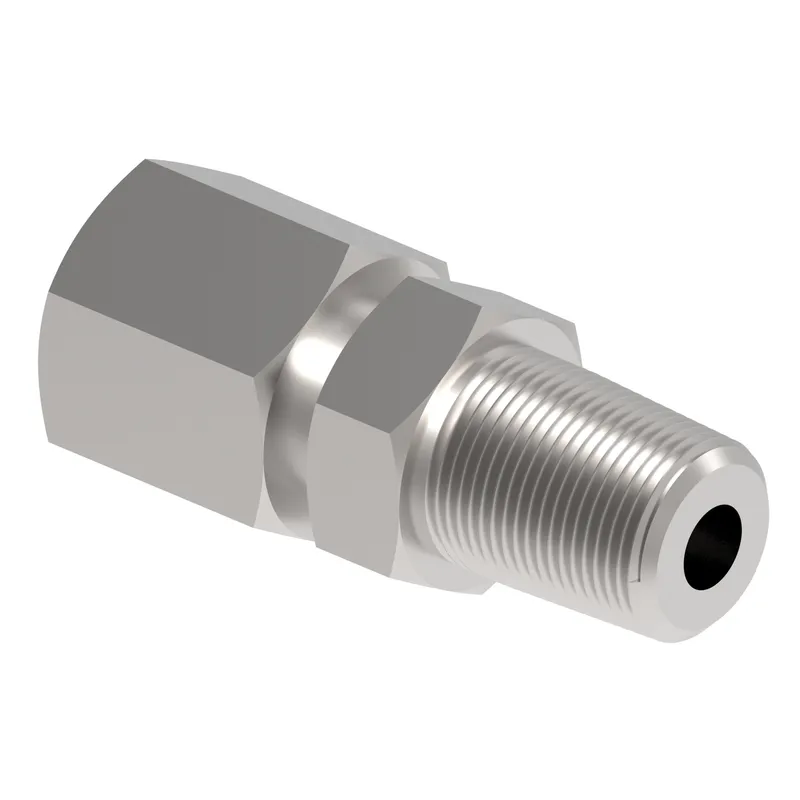

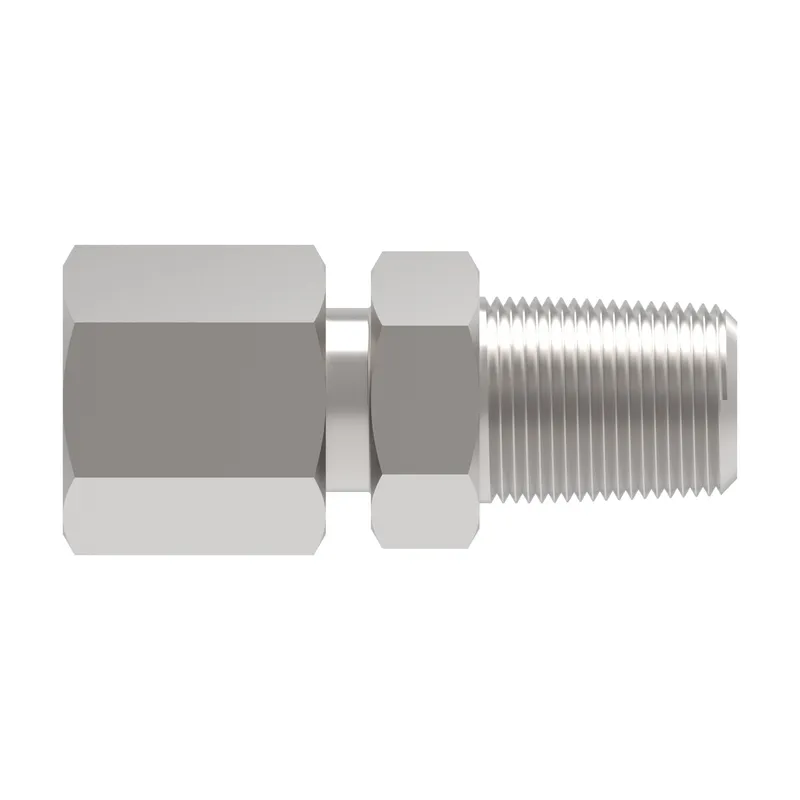

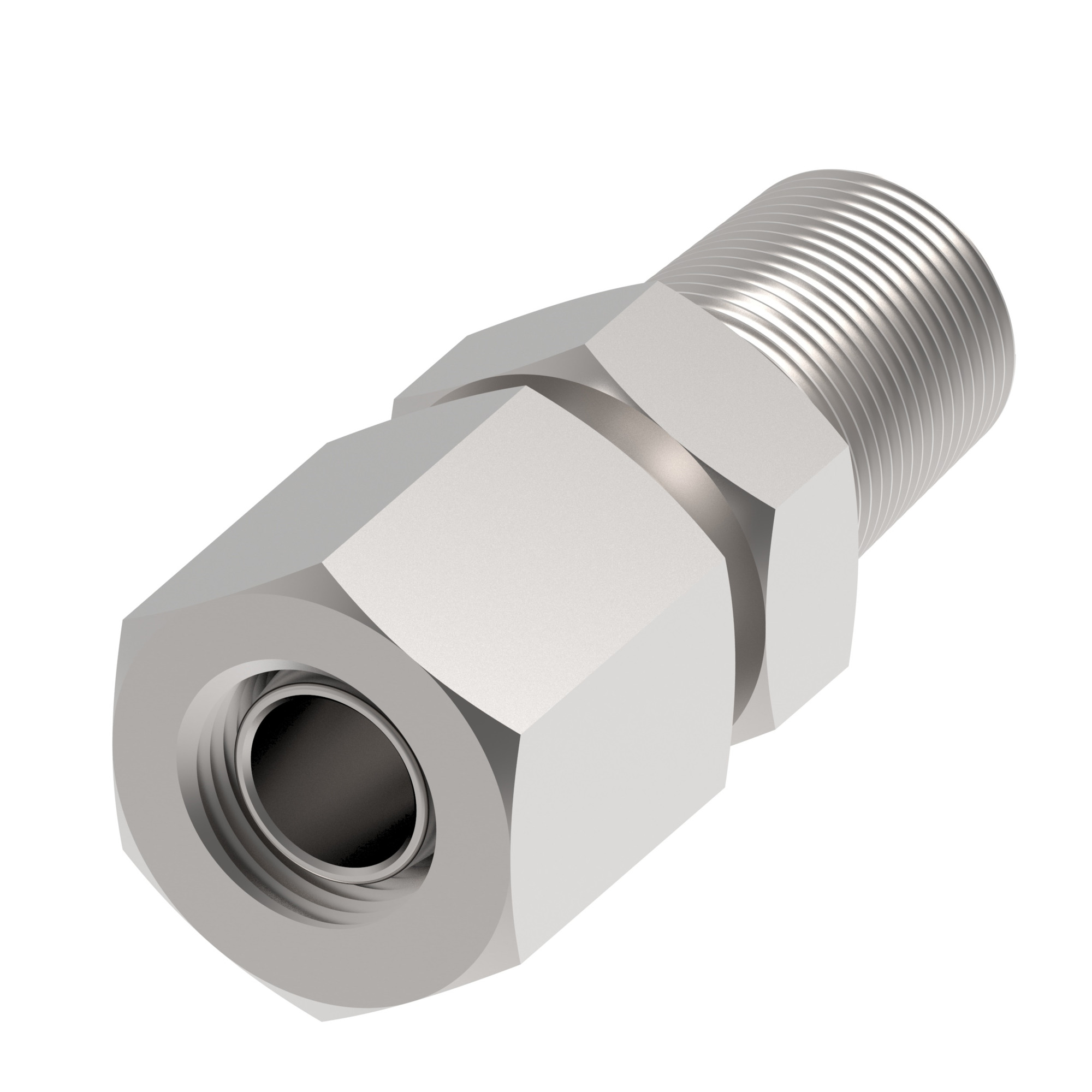

Danfoss WAL605731

TUBE FTG, EGESD 6 S/1/4NPT A4GS

MPN: WAL605731
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL605731?

Danfoss TUBE FTG, EGESD 6 S/1/4NPT A4GS, manufacturer part number WAL605731. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146152350
Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	6S
End Type 1	Male ISO 9974-2 type E (S)
End Type 2	24 deg. DKO swivel heavy duty
Finish plating	Guardian Seal
Hex size 1 MM	17.000
Hex size 2 MM	17.000
Item type	Adjustable connector
Model Code 1	EGESD 6 SM-WD A4GS
Product height in	0.669
Product height mm	17.000
Product length in	1.634
Product length mm	41.500
Product material	Carbon steel
Product serial name	EGESD … M-WD
Product width in	0.669
Product width mm	17
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 1	M12x1.5
Thread size 2	M14x1.5
Tube outside diameter 1 MM	6.0
Tube outside diameter 2 MM	6.0
Working pressure bar	800.0
Working temperature max C	120
Working temperature min C	-40
