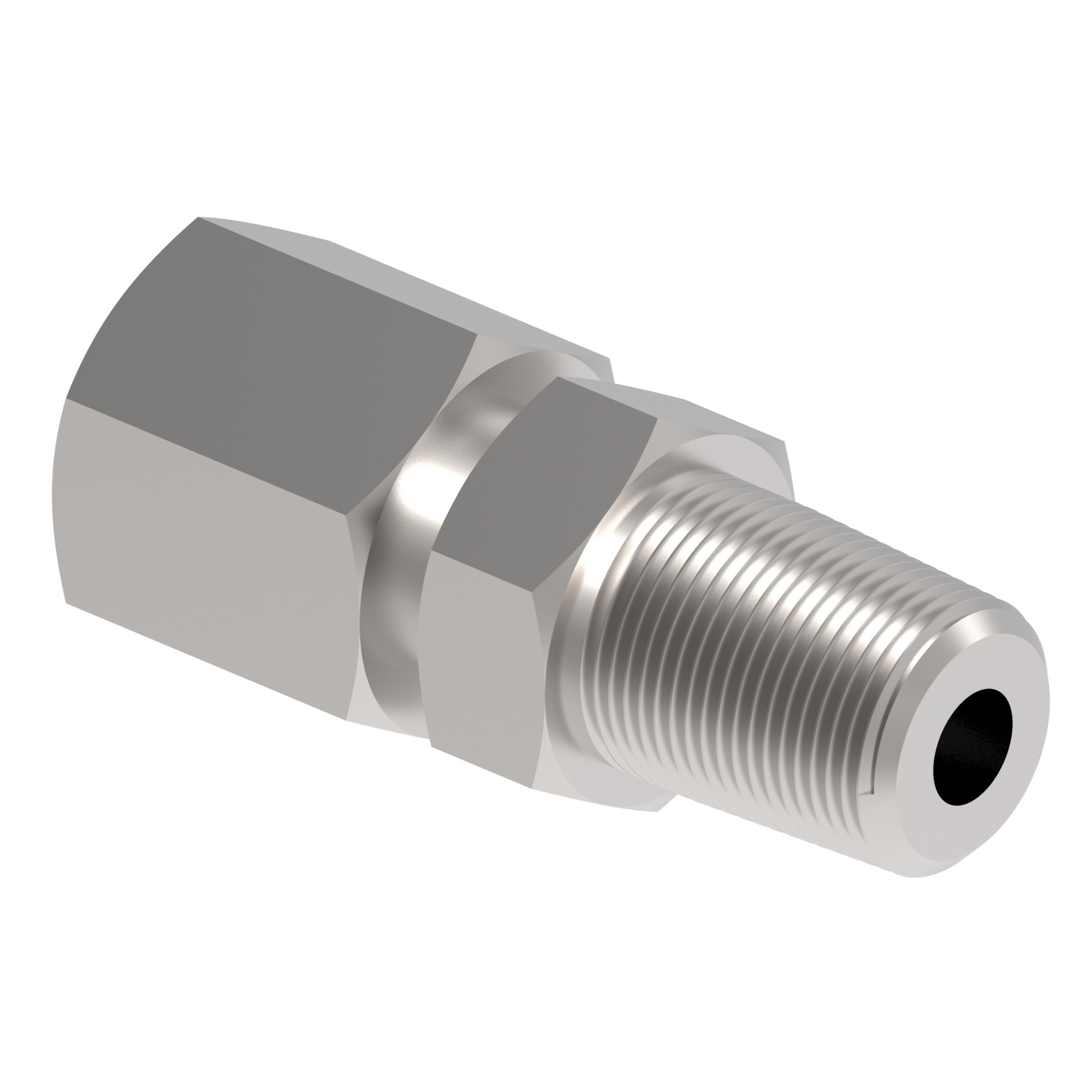

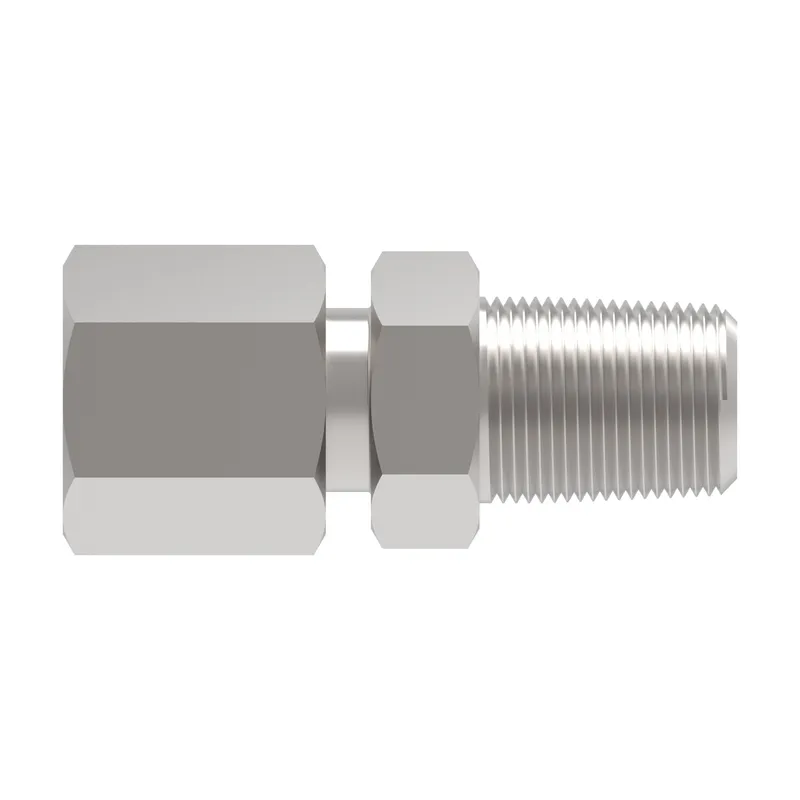

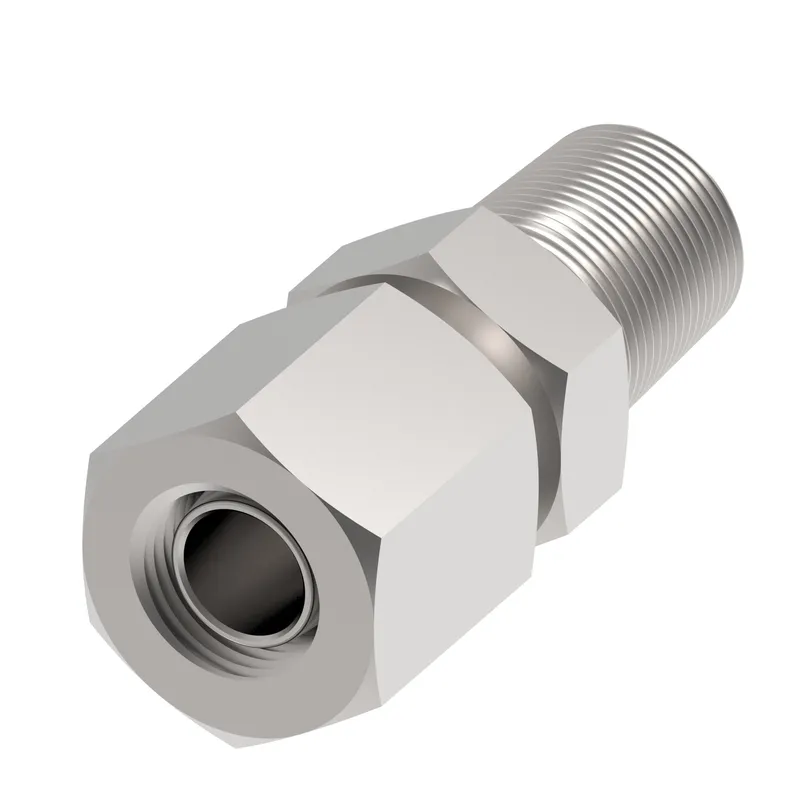

TUBE FTG, EGESD 10 L/1/4NPT A4GS

Name: TUBE FTG, EGESD 10 L/1/4NPT A4GS
Brand: Danfoss (Drives)
SKU: WAL605723

MPN: WAL605723 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Tube fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can WAL605723 be shipped?

WAL605723 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WAL605723 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WAL605723 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL605723, subject to availability and destination.

Danfoss TUBE FTG, EGESD 10 L/1/4NPT A4GS, manufacturer part number WAL605723. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146152275
Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	10L
End Type 1	Male ISO 9974-2 type E (L)
End Type 2	24 deg. DKO swivel light duty
Finish plating	Guardian Seal
Hex size 1 IN	0.944
Hex size 2 IN	0.748
Item type	Adjustable connector
Model Code 1	EGESD 10 L/M18X1,5-WD A4GS
Product height in	0.748
Product height mm	19.000
Product length in	1.595
Product length mm	40.500
Product material	Carbon steel
Product serial name	EGESD … M-WD
Product width in	0.748
Product width mm	19
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 1	M18x1.5
Thread size 2	M16x1.5
Tube outside diameter 1 IN	0.236
Tube outside diameter 2 IN	0.236
Working pressure bar	500.0
Working temperature max C	120
Working temperature min C	-40
