Danfoss WAL603298

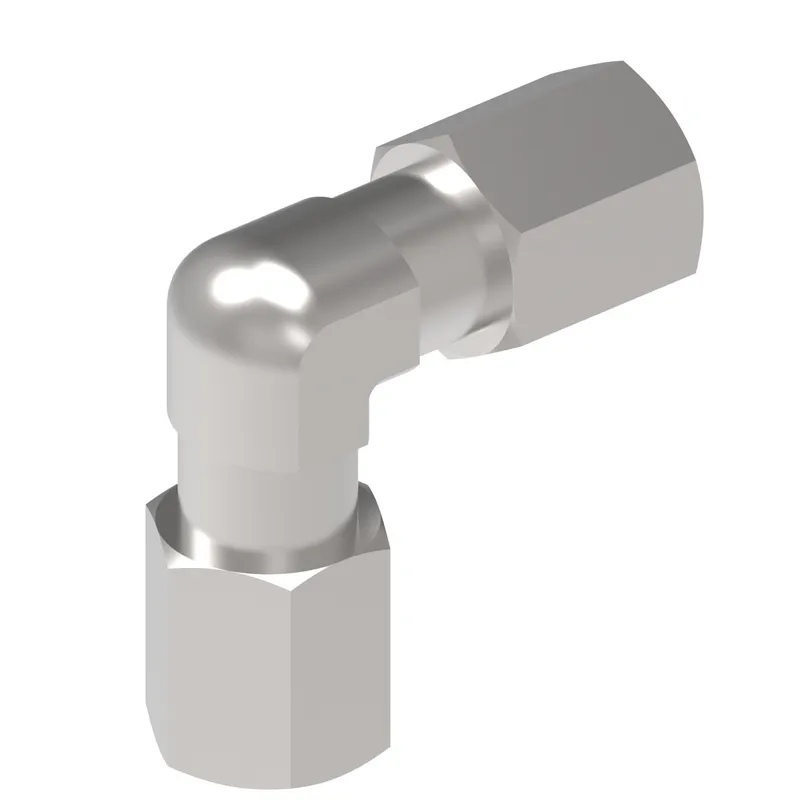

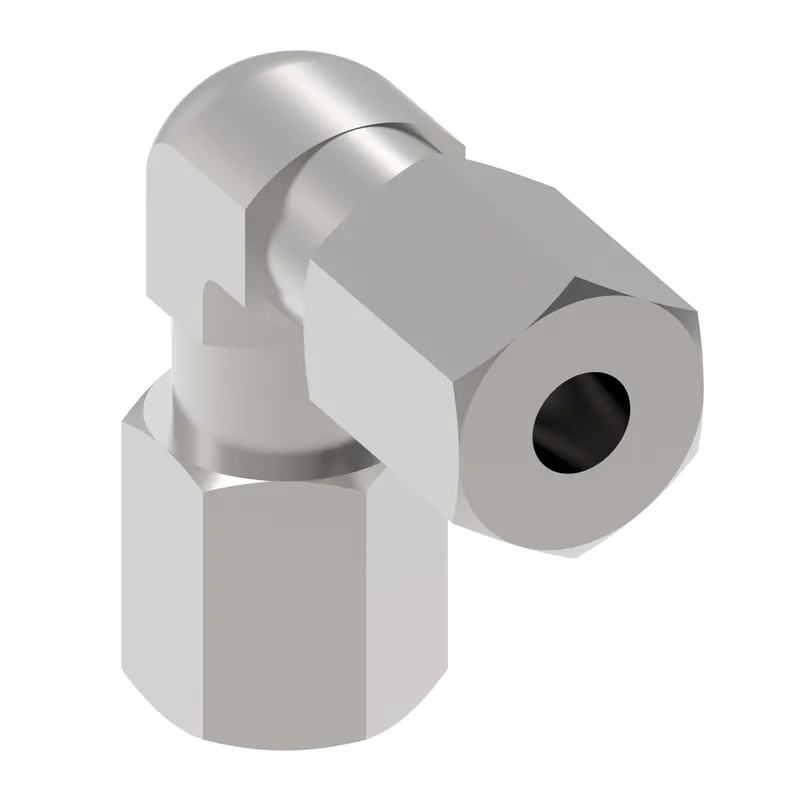

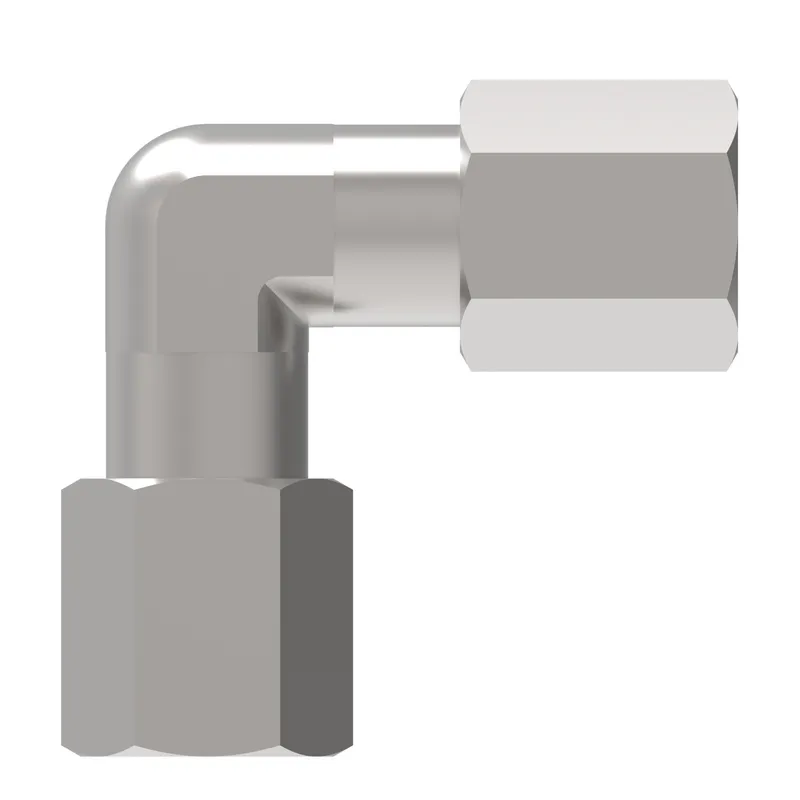

TUBE FTG, BO-WV 10 L VI A4GS

MPN: WAL603298
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL603298?

Danfoss TUBE FTG, BO-WV 10 L VI A4GS, manufacturer part number WAL603298. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Elbow 90 degree
Brand	Danfoss
Complete connector	Yes
End size 1	12L
End size 2	12L
Finish plating	Guardian Seal
Hex size 1 MM	12.000
Hex size 2 MM	14.000
Hex size 3 MM	14.0
Item type	Tube to tube connector
Model Code 1	BO-WV 12 L A4GS
Product height in	1.555
Product height mm	39.500
Product length in	1.555
Product length mm	39.500
Product material	Carbon steel
Product serial name	BO-WV …
Product width in	0.551
Product width mm	14
Sub brand	Waltech
Thread size 1	M18x1.5
Thread size 2	M18x1.5
Tube outside diameter 1 MM	12.0
Tube outside diameter 2 MM	12.0
Working pressure bar	400.0
Working temperature max C	120
Working temperature min C	-40
