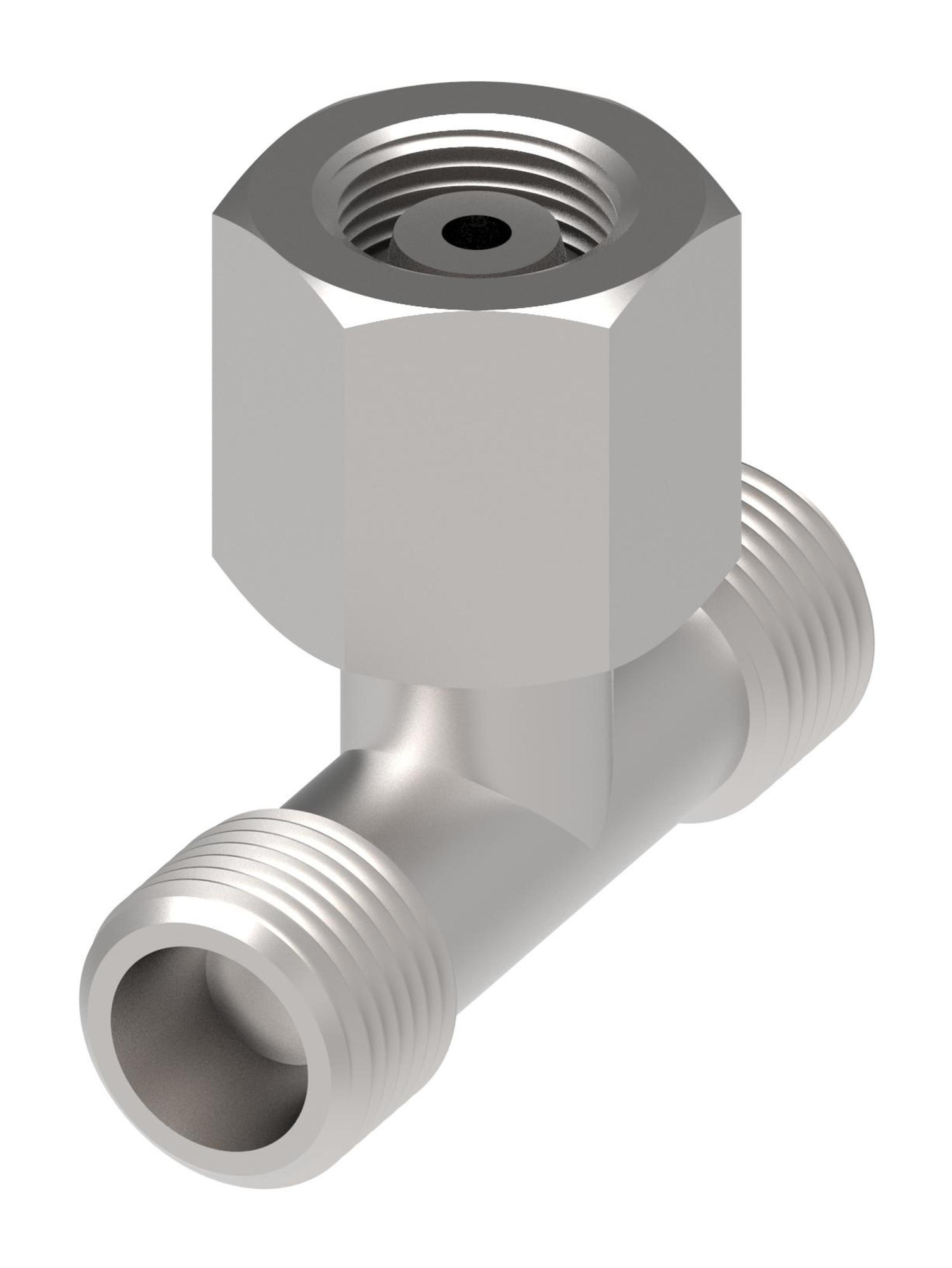

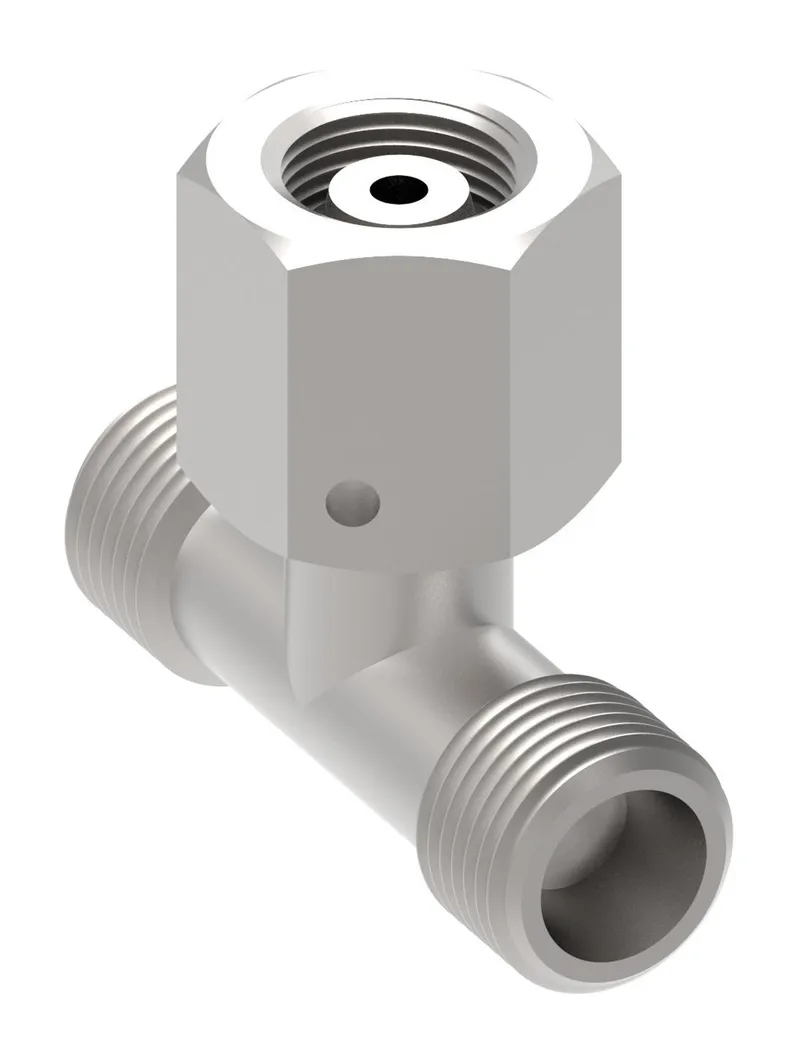

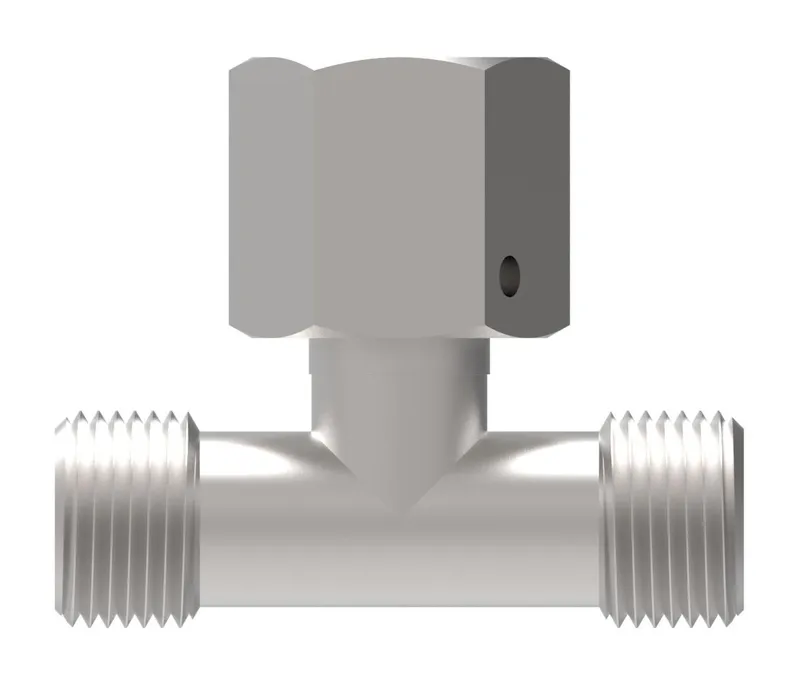

Danfoss WAL063902-K

TUBE FTG, VI-ETSD 18 L A4GS

MPN: WAL063902-K
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL063902-K?

Danfoss TUBE FTG, VI-ETSD 18 L A4GS, manufacturer part number WAL063902-K. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Tee
Brand	Danfoss
Complete connector	No
End size 1	18L
End size 2	18L
End size 3	18L
End Type 1	24 deg. DKO swivel light duty
End Type 2	24 deg. tube port light duty
End type 3	24 deg. tube port light duty
Finish plating	Guardian Seal
Hex size 1 MM	24.000
Hex size 2 MM	32.000
Item type	Adjustable connector
Model Code 1	ETSD 18 L VI A4GS
Product material	Carbon steel
Product serial name	ETSD …
Seal material	Fluorocarbon (FKM)
Sub brand	Waltech
Thread size 1	M26x1.5
Thread size 2	M26x1.5
Thread size 3	M26x1.5
Tube outside diameter 1 MM	18.0
Tube outside diameter 2 MM	18.0
Tube outside diameter 3 MM	18.0
Working pressure bar	400.0
