Danfoss RD702SL

ONE WAY SOCKET

MPN: RD702SL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

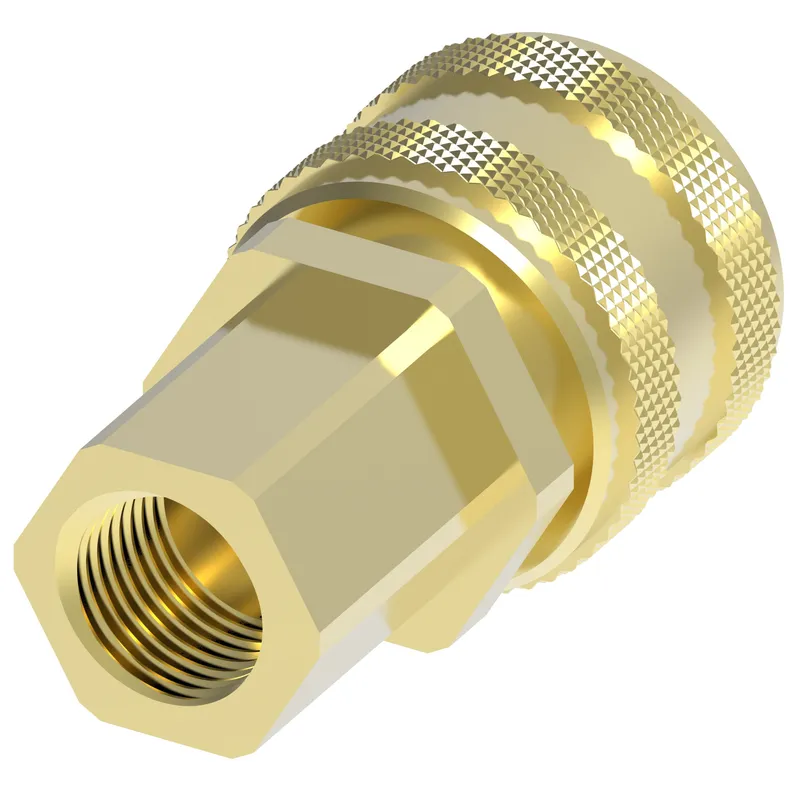

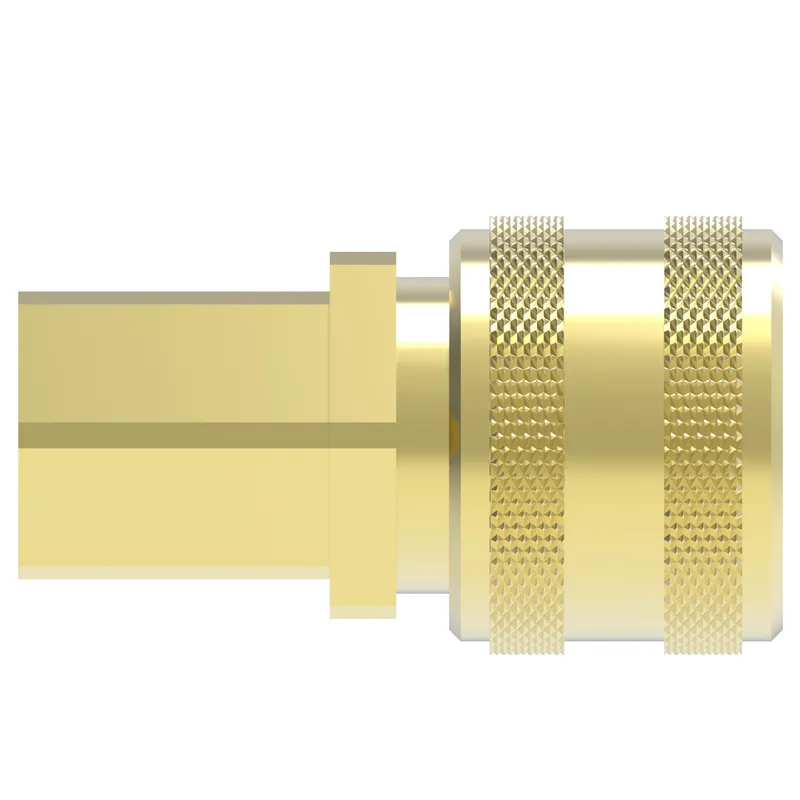

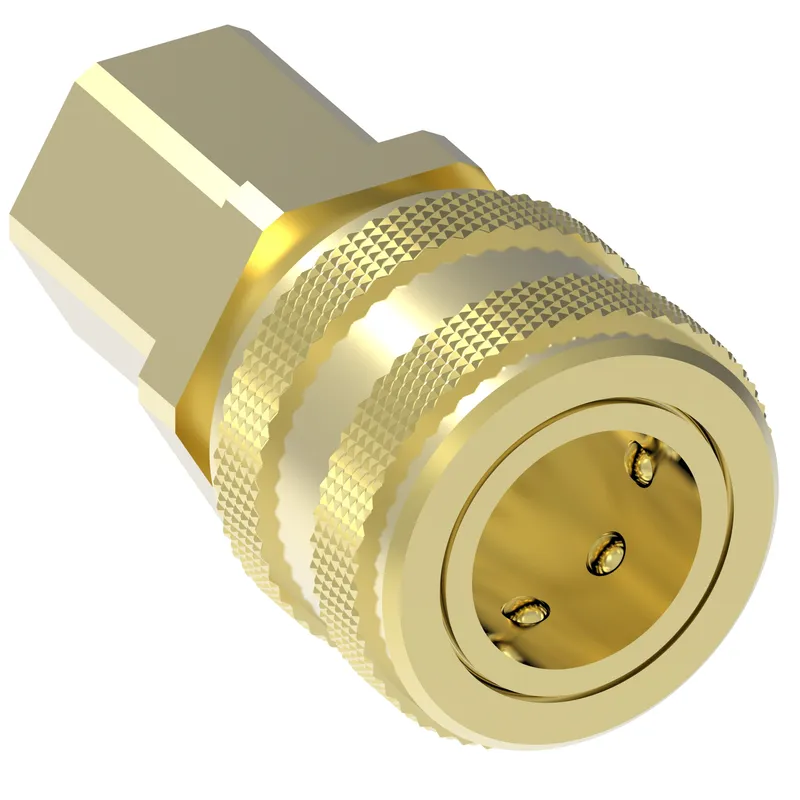

What is the Danfoss RD702SL?

Danfoss ONE WAY SOCKET, manufacturer part number RD702SL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146210128
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	414
Burst pressure min psi	6000
Connection style	Manual connect
End size 2	-4
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	157.00
Flow rate LPM	594.31
Fluid compatibility	Compressed air and other gases, Oxyacetylene service
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Product length in	1.960
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	1 way
Working pressure max psi	1500
Working pressure max BAR	103.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

RD702SL: frequently asked questions

When can RD702SL be shipped?

RD702SL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD702SL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD702SL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD702SL, subject to availability and destination.
