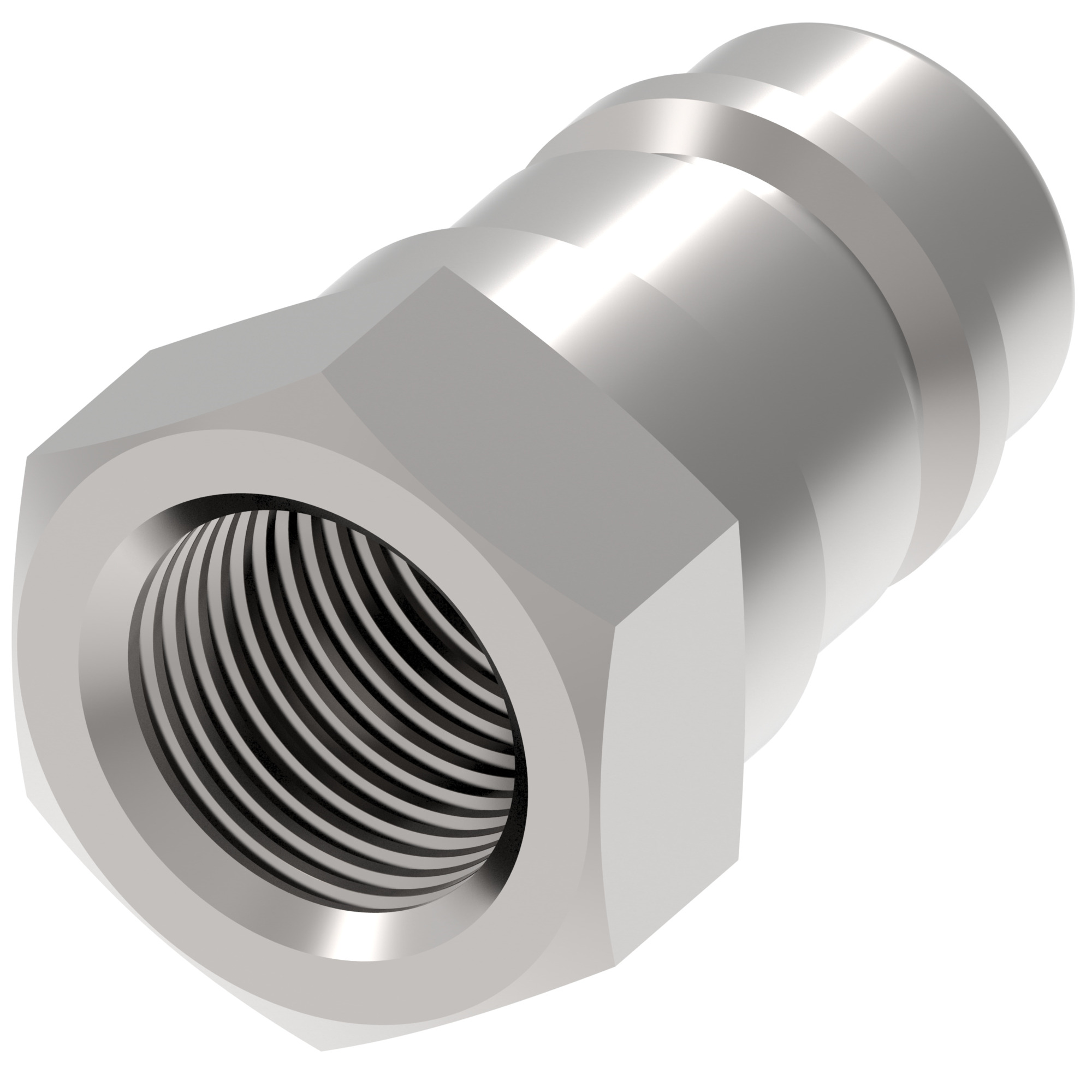

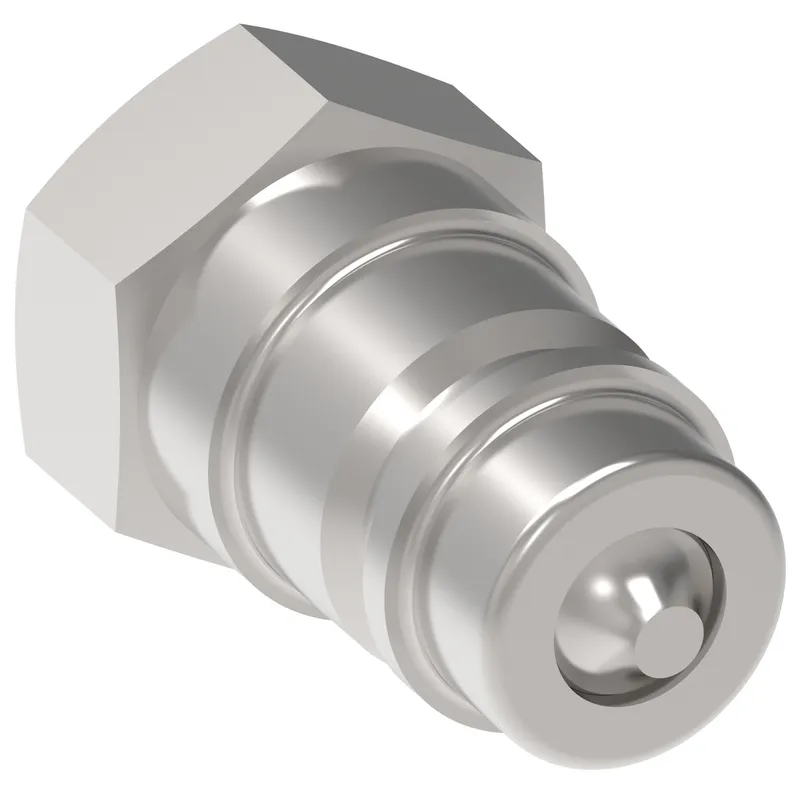

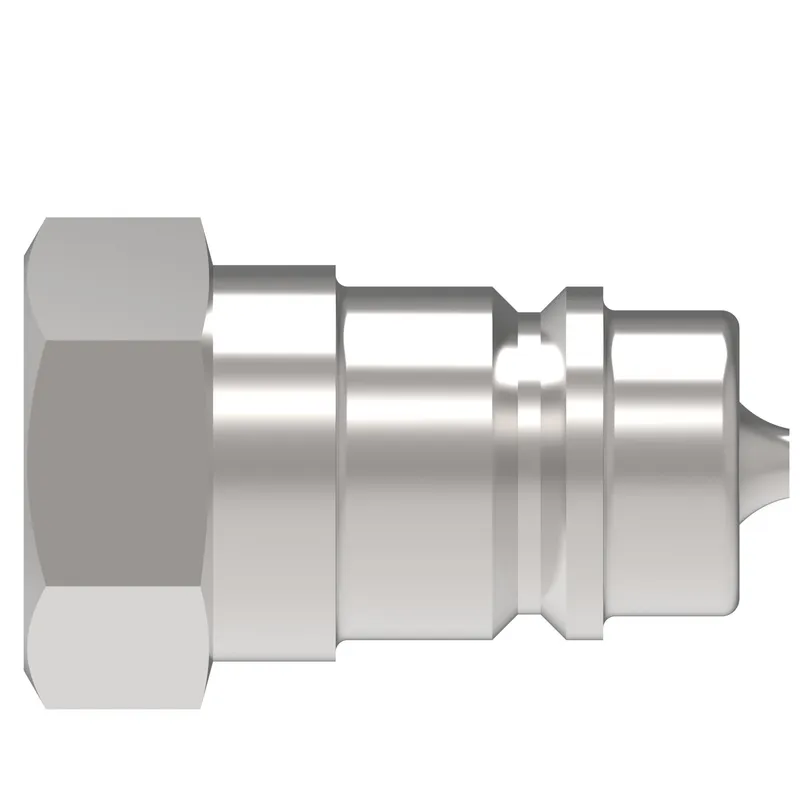

Danfoss ML8KFR36
COUPLING,HKFR,M,1",SS,-16NPTF,NBR
- MPN
- ML8KFR36
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss ML8KFR36?
Danfoss COUPLING,HKFR,M,1",SS,-16NPTF,NBR, manufacturer part number ML8KFR36. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 813688024431 |
| Angle shape | Straight |
| Body size | 1" |
| Burst pressure min bar | 1379 |
| Burst pressure min psi | 20000 |
| Certifications | Lloyd&apos |
| Connection style | Manual connect |
| End size 1 | -16 |
| End size 2 | -16 |
| End Type 1 | Male push to connect |
| End Type 2 | Female pipe (NPTF) |
| Flow rate GPM | 25.00 |
| Flow rate LPM | 94.64 |
| Fluid compatibility | Hazardous oil and gas |
| Fluid loss cc | 16.90000 |
| Fluid loss in3 | 1.03100 |
| Hex size 1 IN | 1.630 |
| Hex size 1 MM | 41.402 |
| Item type | Male half |
| Latch type | Push/pull |
| Product material | Stainless steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile (NBR) |
| Thread size 1 | 1-11 1/2 NPTF |
| Valve type | 2 way |
| Working pressure max psi | 5000 |
| Working pressure max BAR | 345.00 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
ML8KFR36: frequently asked questions
When can ML8KFR36 be shipped?
ML8KFR36 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ML8KFR36 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ML8KFR36 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML8KFR36, subject to availability and destination.
