Danfoss ML8DBS100F

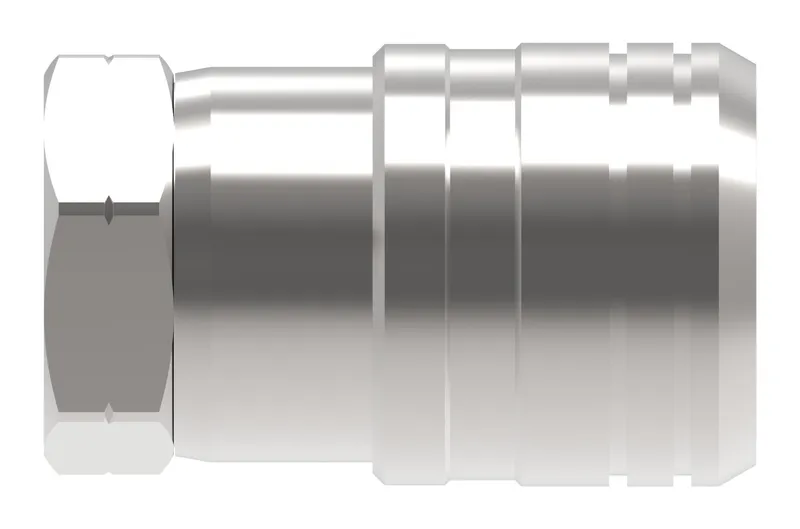

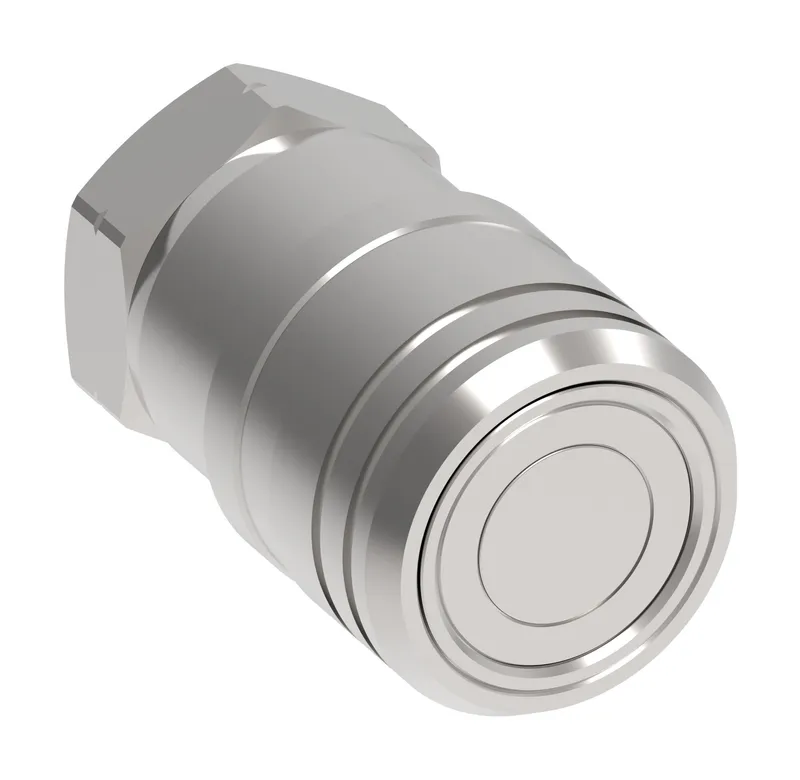

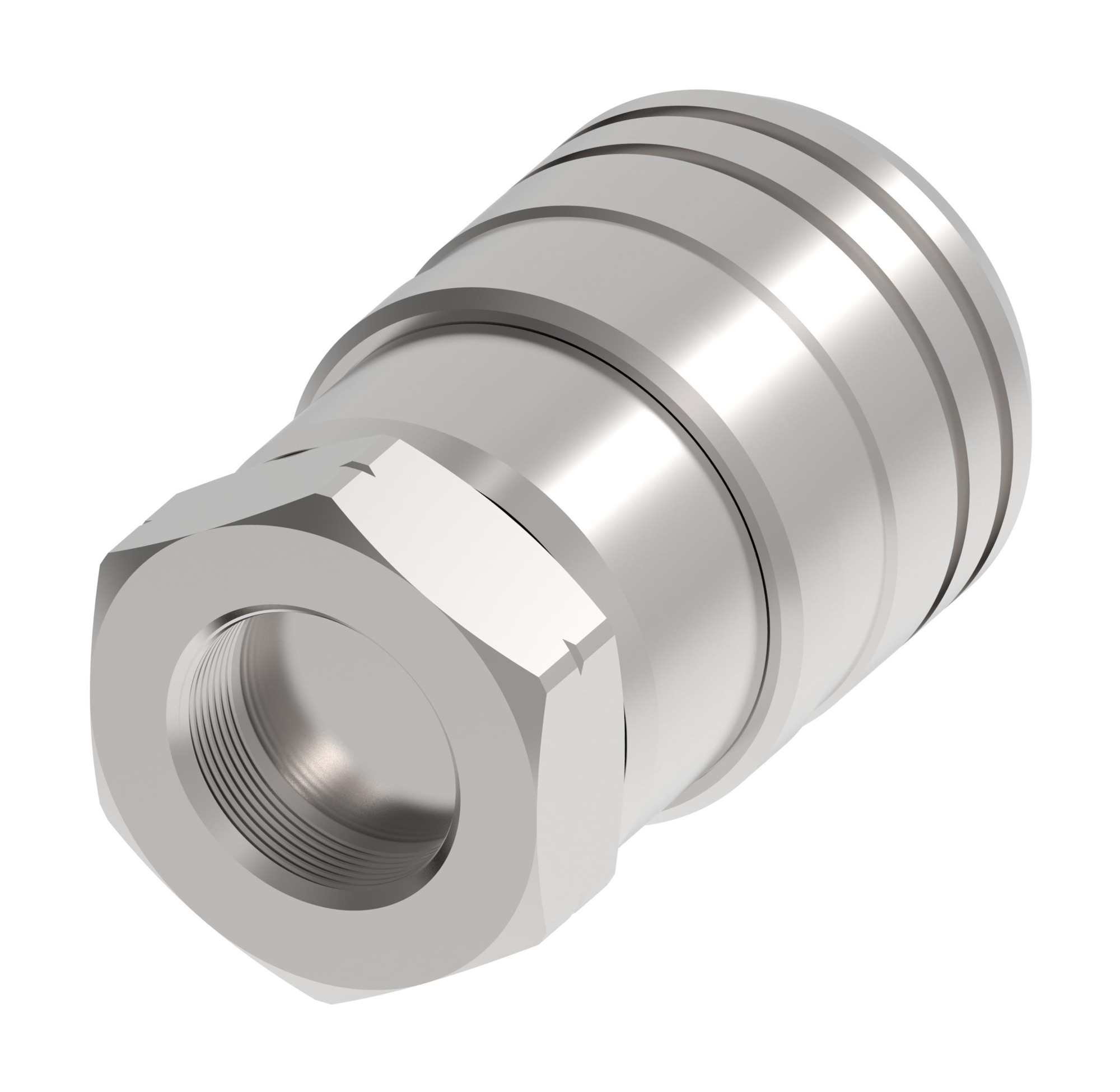

COUPLING,MLDB,F,1",SS,-16NPT,FKM

MPN: ML8DBS100F
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ML8DBS100F?

Danfoss COUPLING,MLDB,F,1",SS,-16NPT,FKM, manufacturer part number ML8DBS100F. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146114341
Angle shape	Straight
Body size	1"
Brand	Danfoss
Compliances	PED 2014/68 EU Article 4.3
End size 1	-16
End Type 1	Female Pipe (NPT)
Hex size 1 IN	1.970
Item type	Female half
Latch type	Push to connect
Product length in	3.420
Product material	Stainless steel
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	1-11 1/2 NPTF
Valve type	2 way
Working pressure max psi	360
Working temperature max F	392
Working temperature min F	-4
