Danfoss ML4UQP56ORMBL

COUPLING,UQD,M,1/4,304,-6MUNF,EPDM

MPN: ML4UQP56ORMBL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

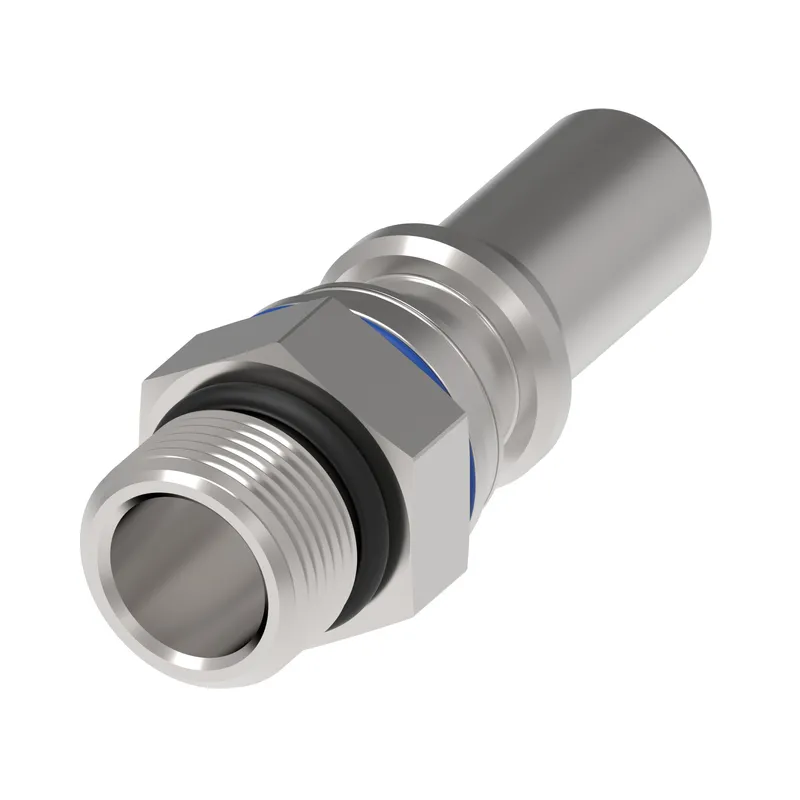

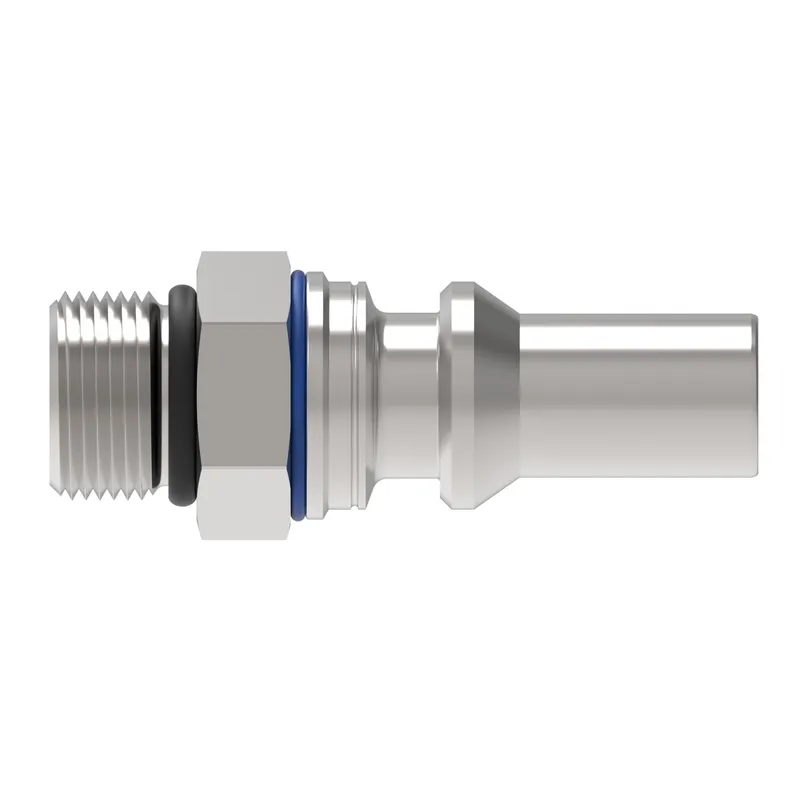

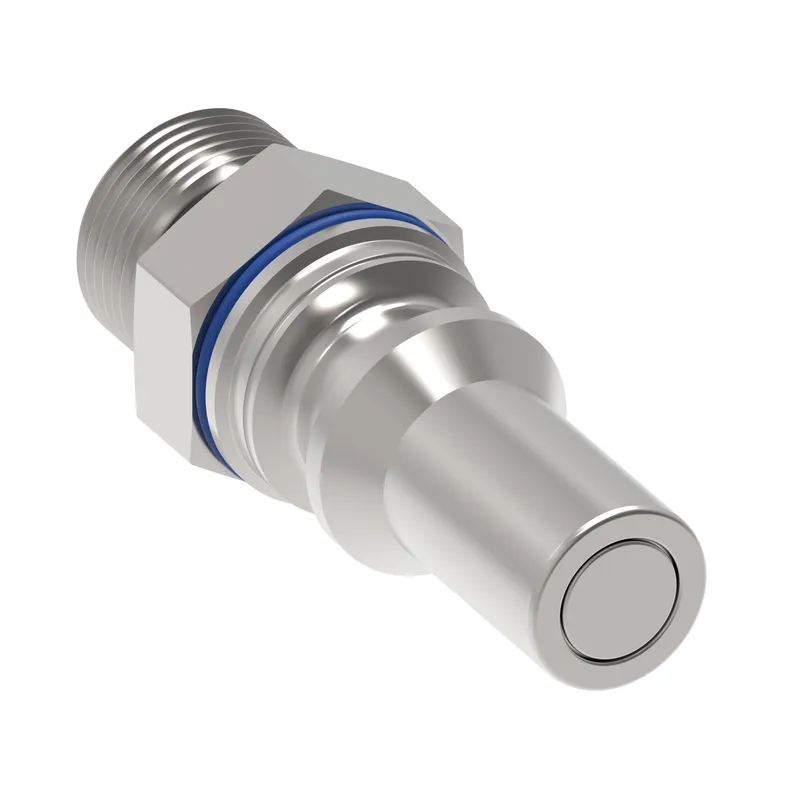

What is the Danfoss ML4UQP56ORMBL?

Danfoss COUPLING,UQD,M,1/4,304,-6MUNF,EPDM, manufacturer part number ML4UQP56ORMBL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.02
Angle shape	Straight
Application	Cooling applications, Data centers, Electronics
Body size	1/4
Brand	Danfoss
Burst pressure min bar	48
Burst pressure min psi	696
Connection style	Manual connect
End size 1	-6
End Type 1	Male ORB ISO 11926-3
Flow rate GPM	1.70
Flow rate LPM	6.40
Fluid loss cc	0.01000
Hex size 1 IN	0.670
Hex size 1 MM	17.000
Item type	Male half
Latch type	Push to connect
Product material	304 Stainless Steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	9/16-18 UNF
Valve type	2 way
Working pressure max psi	232
Working pressure max BAR	16.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
