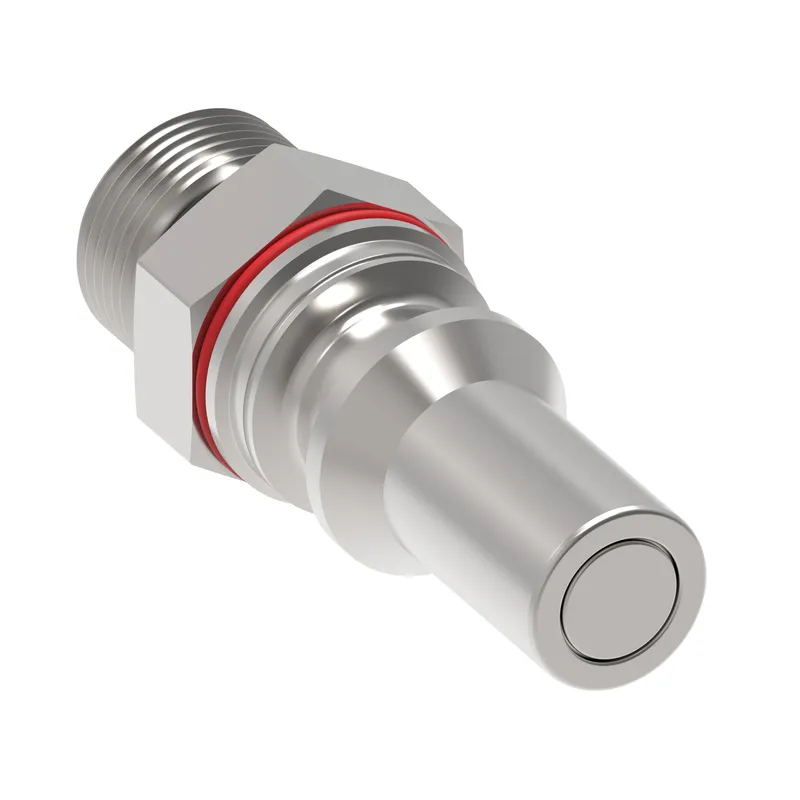

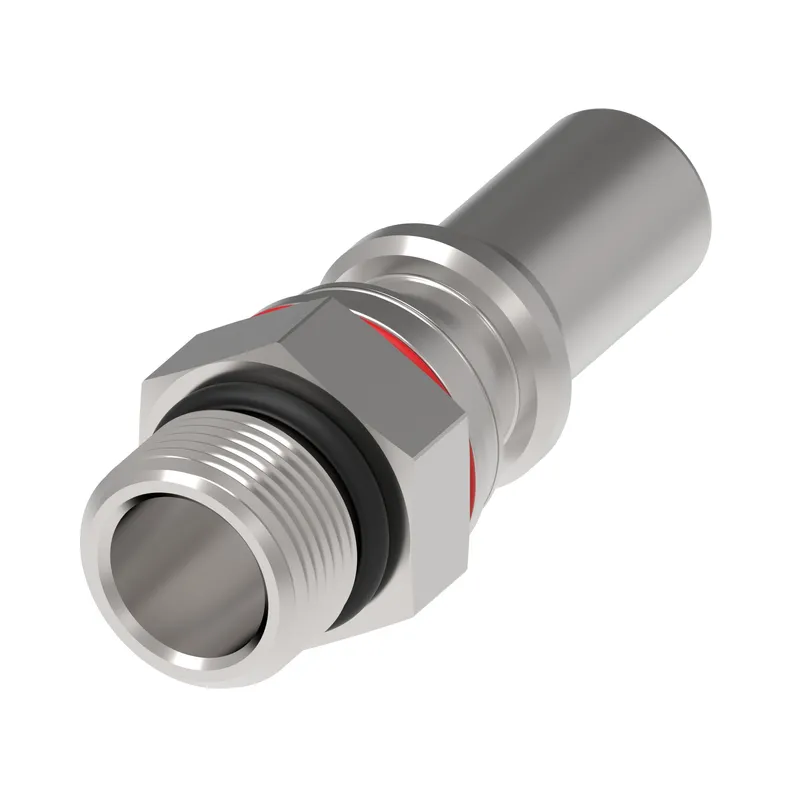

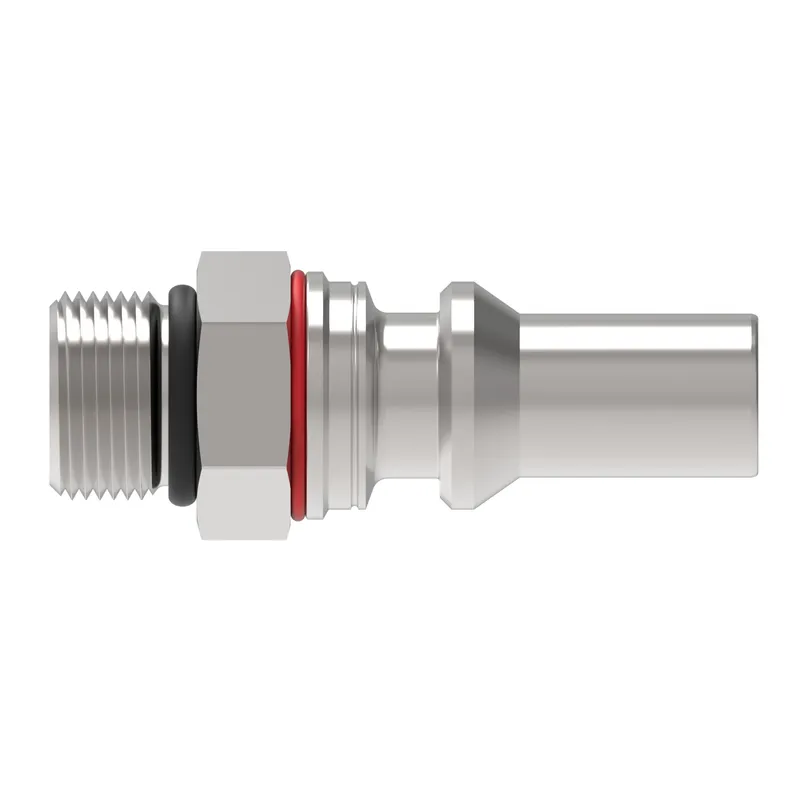

Danfoss ML2UQP43ORMRD

COUPLING,UQD,M,1/8,304,-4MUNF,EPDM

MPN: ML2UQP43ORMRD
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ML2UQP43ORMRD?

Danfoss COUPLING,UQD,M,1/8,304,-4MUNF,EPDM, manufacturer part number ML2UQP43ORMRD. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	4.00
Angle shape	Straight
Application	Cooling applications, Data centers, Electronics
Body size	1/8
Brand	Danfoss
Burst pressure min bar	60
Burst pressure min psi	870
Connection style	Manual connect
End size 1	-4
End Type 1	Male ORB ISO 11926-3
Flow rate GPM	0.60
Flow rate LPM	2.10
Fluid loss cc	7.00000
Hex size 1 IN	0.550
Hex size 1 MM	14.000
Item type	Male half
Latch type	Push to connect
Product material	304 Stainless Steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	7/16-20 UNF
Valve type	2 way
Working pressure max psi	290
Working pressure max BAR	20.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
