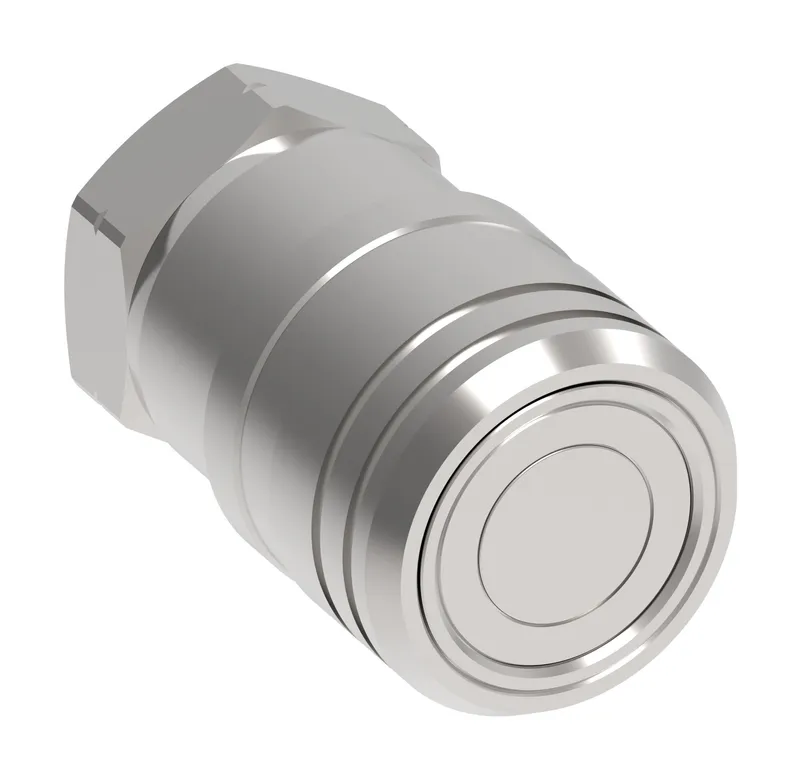

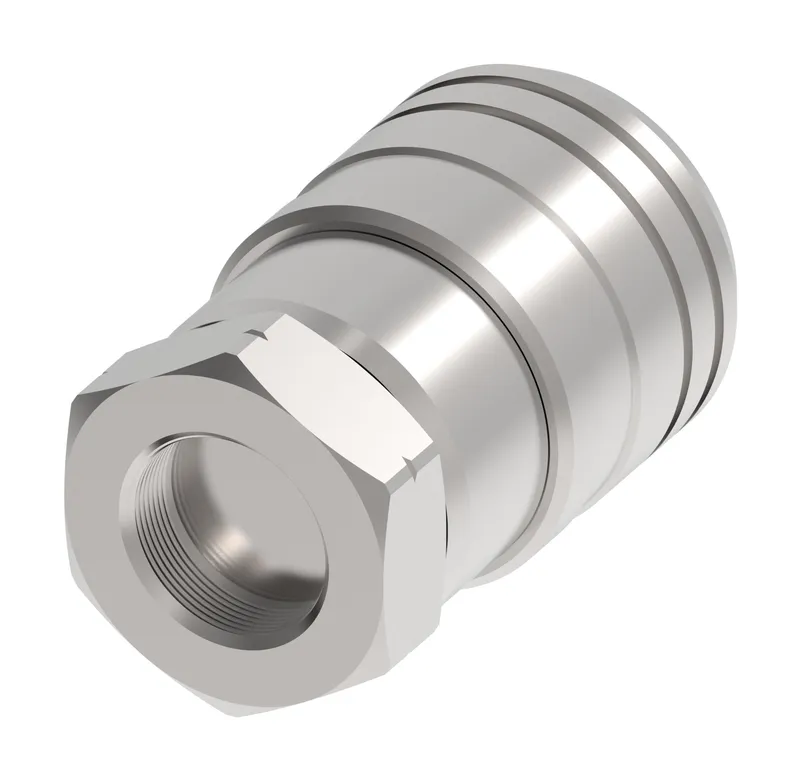

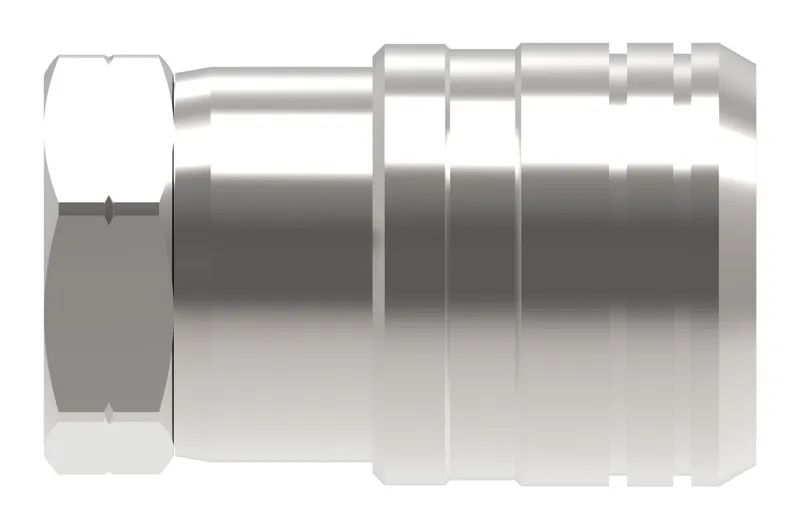

Danfoss ML2DBS25FBS292

COUPLING,MLDB,F,1/4,SS,-4BSPP,EPDM

MPN: ML2DBS25FBS292
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ML2DBS25FBS292?

Danfoss COUPLING,MLDB,F,1/4,SS,-4BSPP,EPDM, manufacturer part number ML2DBS25FBS292. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146208583
Angle shape	Straight
Body size	1/4
Brand	Danfoss
End size 1	-4
End Type 1	Female BSPP port washer seal.
Hex size 1 IN	0.870
Item type	Female half
Latch type	Push to connect
Product material	Stainless steel
Safety locking mechanism	Sleeve lock
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	G 1/4
Valve type	2 way
Working pressure max psi	360
Working temperature max F	302
Working temperature min F	-40

ML2DBS25FBS292: frequently asked questions

When can ML2DBS25FBS292 be shipped?

ML2DBS25FBS292 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML2DBS25FBS292 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML2DBS25FBS292 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML2DBS25FBS292, subject to availability and destination.
