Danfoss ML25FFS100BS143

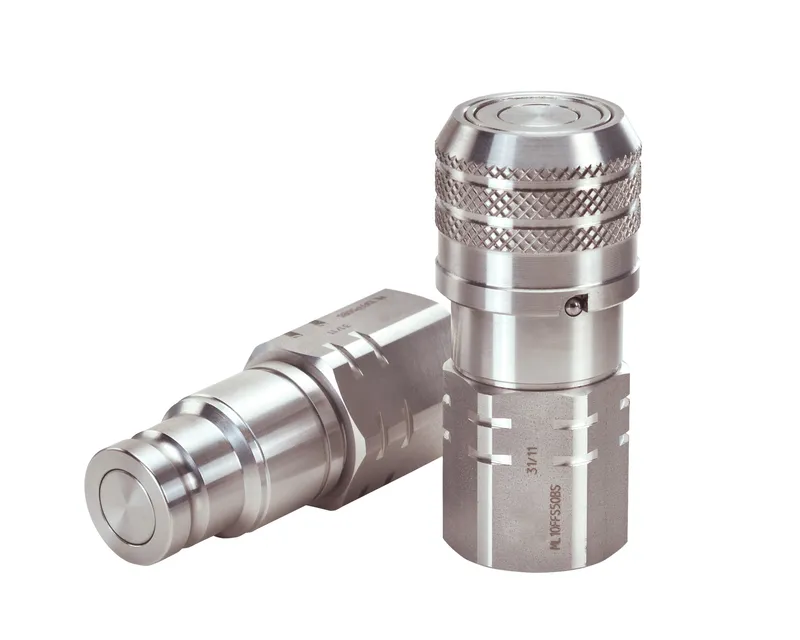

COUPLING,MLFF,F,1",316,-16BSP,FKM

MPN: ML25FFS100BS143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ML25FFS100BS143?

Danfoss COUPLING,MLFF,F,1",316,-16BSP,FKM, manufacturer part number ML25FFS100BS143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Body size	1"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
End size 1	-16
End Type 1	Female BSPP port washer seal.
Hex size 1 IN	2.170
Item type	Female half
Latch type	Push to connect
Product material	316 Stainless steel
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	G 1
Valve type	2 way
Working pressure max psi	3625
Working temperature max F	392
Working temperature min F	-4
