Danfoss ML1H4143

Coupling, HK/FD45 SS, SAE, FEMALE, FKM

MPN: ML1H4143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ML1H4143?

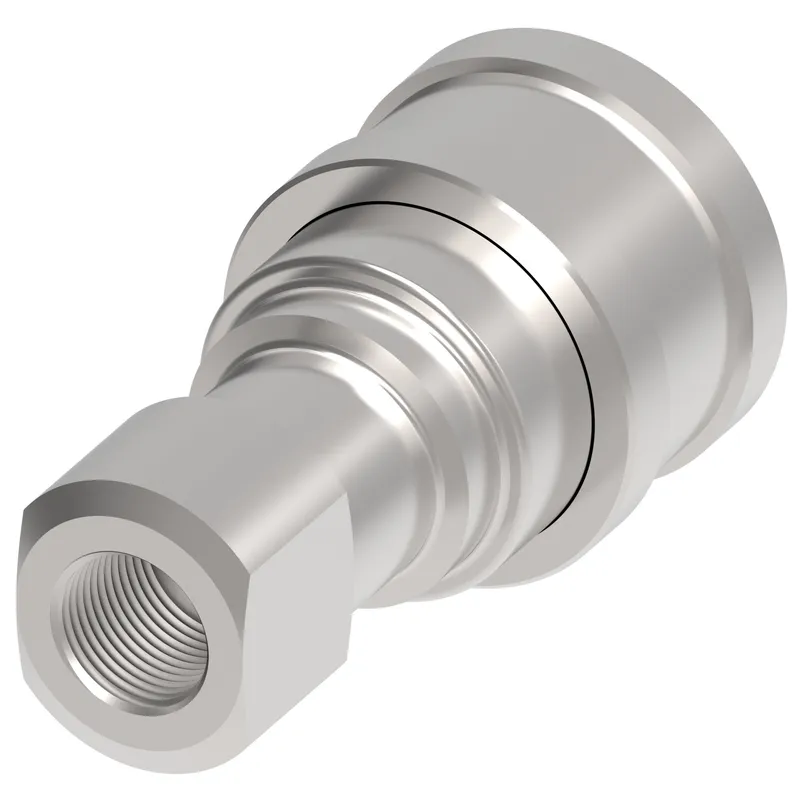

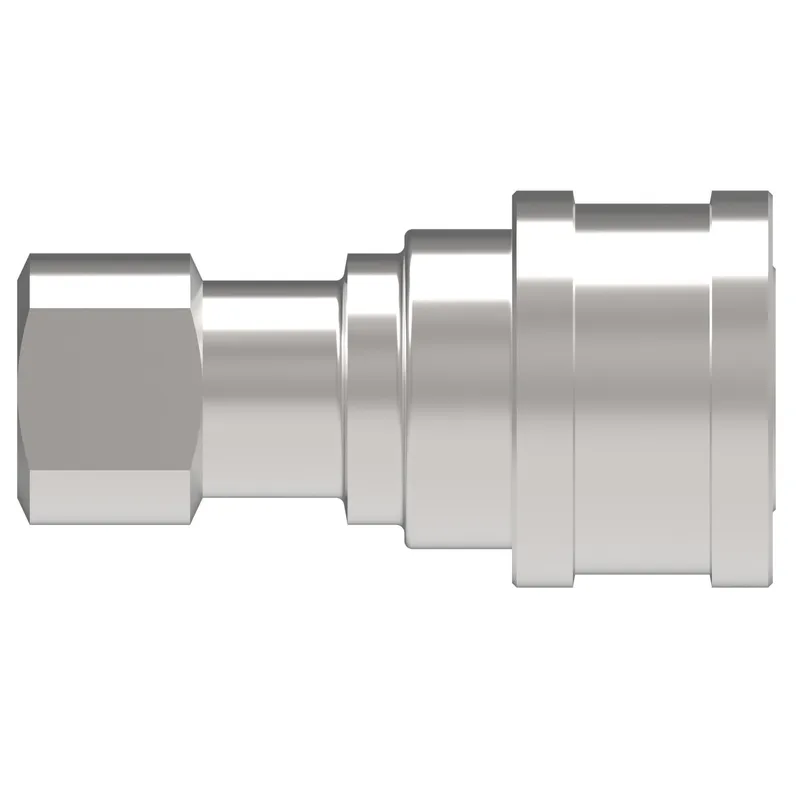

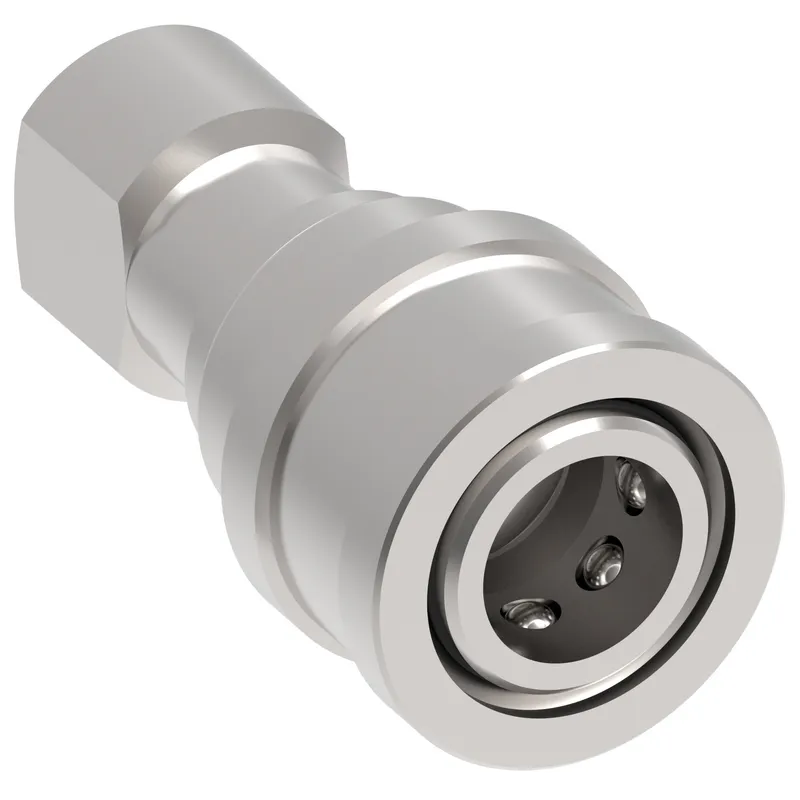

Danfoss Coupling, HK/FD45 SS, SAE, FEMALE, FKM, manufacturer part number ML1H4143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.60
Air inclusion max in3	0.04
Angle shape	Straight
Body size	1/8
Connection style	Manual connect
End size 1	7/16"
Flow rate GPM	0.80
Flow rate LPM	3.03
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Female half
Product material	Stainless steel
Seal material	Fluorocarbon (FKM)
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345.00
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15

ML1H4143: frequently asked questions

When can ML1H4143 be shipped?

ML1H4143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML1H4143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML1H4143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML1H4143, subject to availability and destination.
