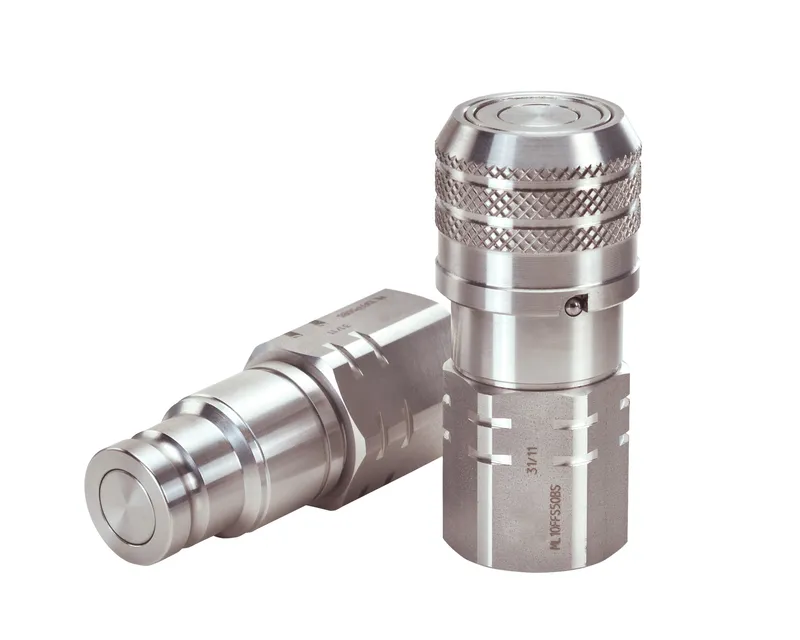

Danfoss ML16FFS75
COUPLING,MLFF,F,5/8,316,-12NPT,NBR
- MPN
- ML16FFS75
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss ML16FFS75?
Danfoss COUPLING,MLFF,F,5/8,316,-12NPT,NBR, manufacturer part number ML16FFS75. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146155887 |
| Air inclusion max cc | 0.03 |
| Air inclusion max in3 | 0.00 |
| Angle shape | Straight |
| Body size | 5/8 |
| Brand | Danfoss |
| Burst pressure min bar | 880 |
| Burst pressure min psi | 12760 |
| Certifications | ISO 16028 |
| Compliances | PED 2014/68 EU Article 4.3, REACH |
| Connection style | Manual connect |
| End size 1 | -12 |
| End size 2 | -12 |
| End Type 1 | Female Push to Connect |
| End Type 2 | Female Pipe (NPT) |
| Flow rate GPM | 17.70 |
| Flow rate LPM | 67.00 |
| Fluid loss cc | 0.01600 |
| Fluid loss in3 | 0.00100 |
| Hex size 1 IN | 1.420 |
| Hex size 1 MM | 36.068 |
| Item type | Female half |
| Latch type | Push to connect |
| Product material | Stainless steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile(NBR)+Polyurethane(AU) |
| Sub brand | Hansen |
| Thread size 1 | 3/4-14 NPTF |
| Torque lbs-ft | 46.10 |
| Valve type | 2 way |
| Working pressure max psi | 3625 |
| Working pressure max BAR | 250.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -25 |
| Working temperature min F | -13 |
ML16FFS75: frequently asked questions
When can ML16FFS75 be shipped?
ML16FFS75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ML16FFS75 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ML16FFS75 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML16FFS75, subject to availability and destination.
