Danfoss LL8S36192

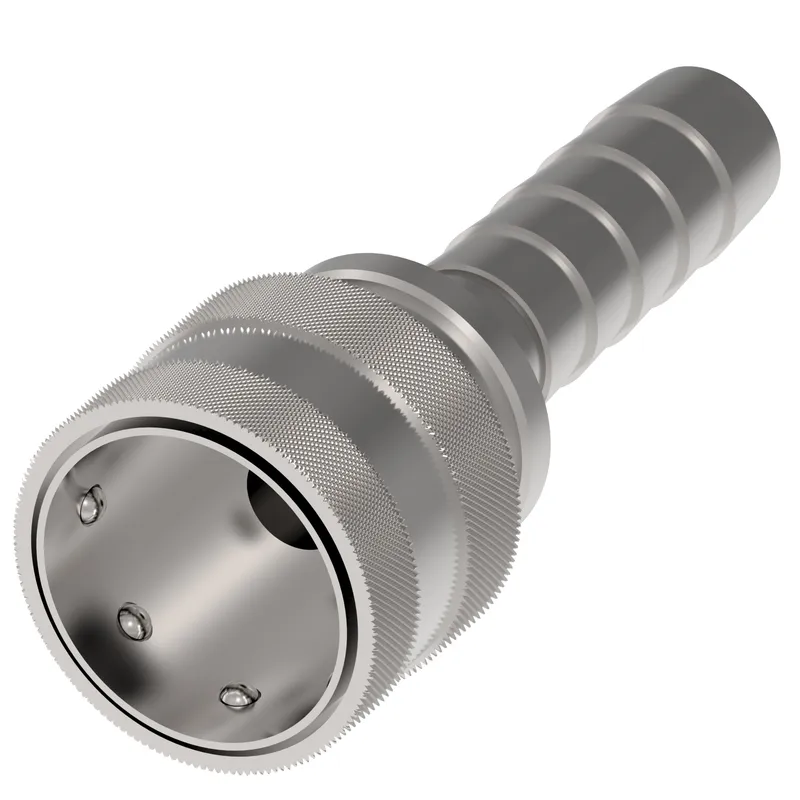

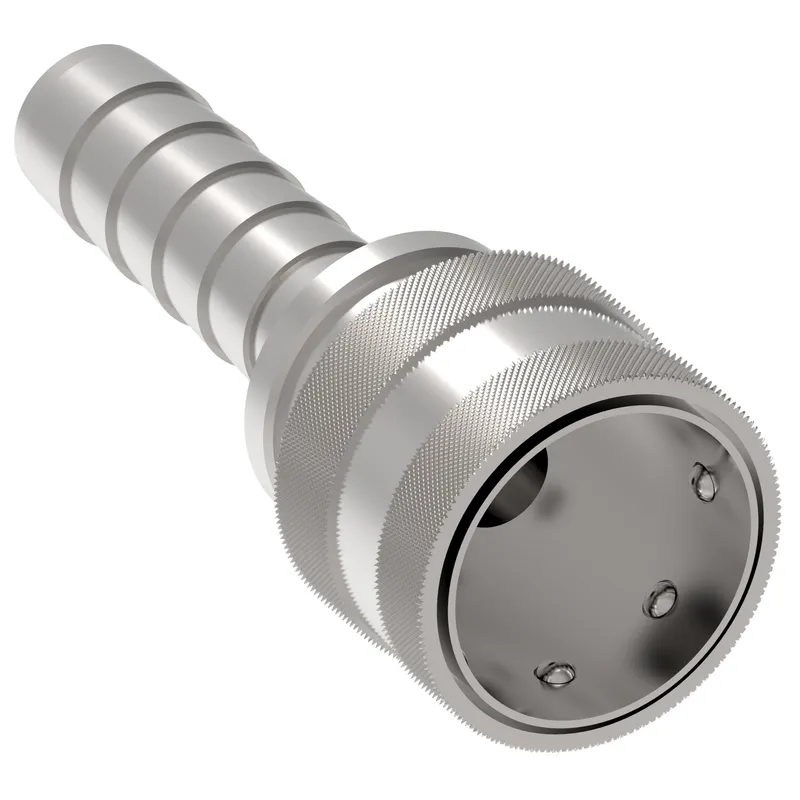

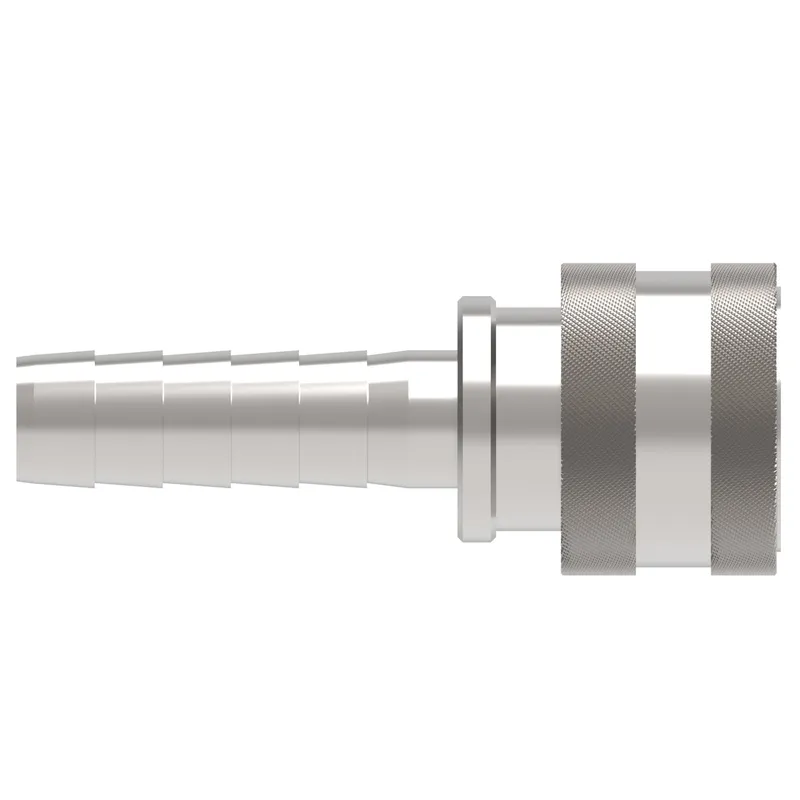

COUPLING,ST,F,1",SS,-16MNPTF,EPDM

MPN: LL8S36192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL8S36192?

Danfoss COUPLING,ST,F,1",SS,-16MNPTF,EPDM, manufacturer part number LL8S36192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146159380
Angle shape	Straight
Body size	1"
Burst pressure min bar	359
Burst pressure min psi	5200
Connection style	Manual connect
End size 1	-16
End size 2	-16
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	140.00
Flow rate LPM	529.96
Fluid compatibility	Versatile fluid
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Latch type	Push/pull
Product length in	2.330
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	1-11 1/2 NPTF
Valve type	Straight thru
Working pressure max psi	2000
Working pressure max BAR	138.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
