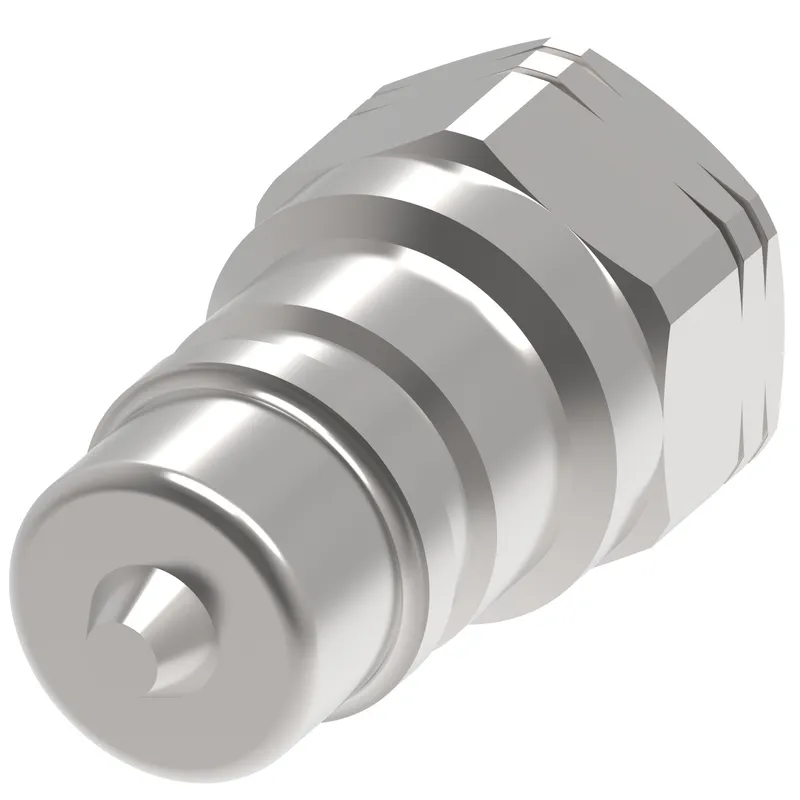

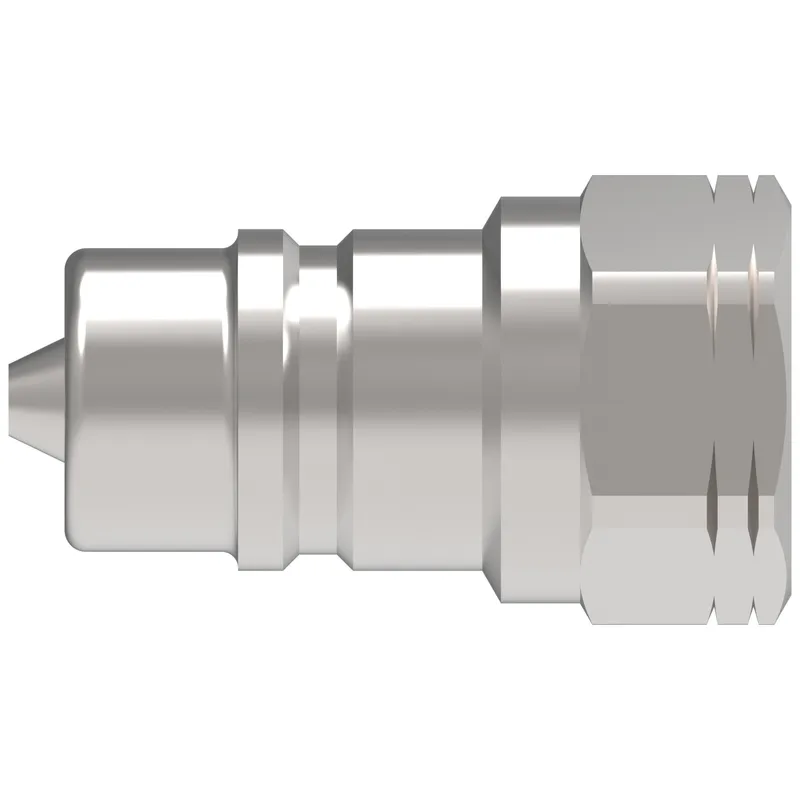

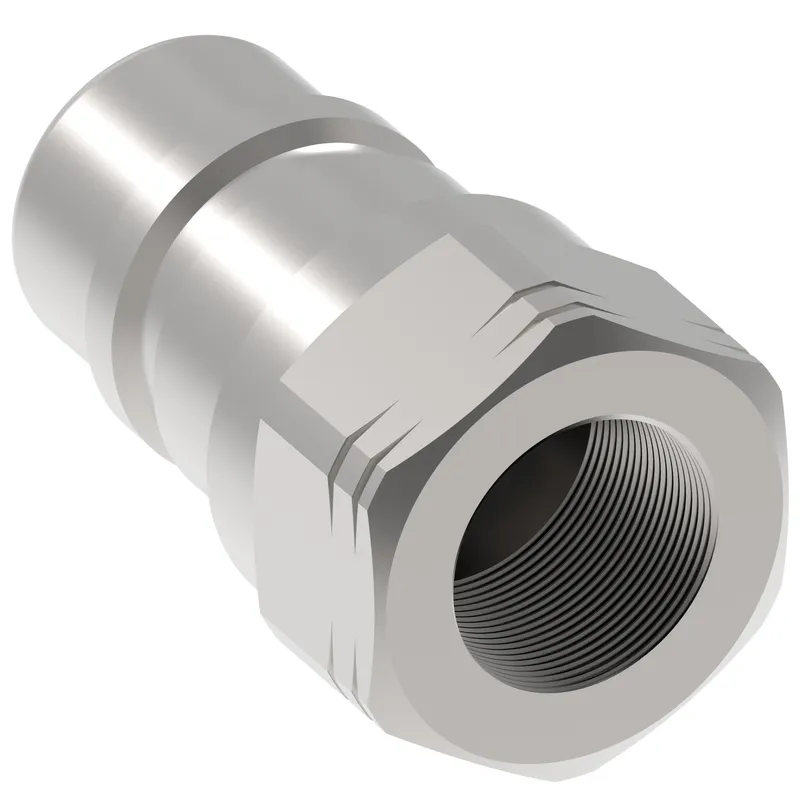

Danfoss LL3K8

COUPLING,HK,M,3/8,303,-8UNF,NBR

MPN: LL3K8
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL3K8?

Danfoss COUPLING,HK,M,3/8,303,-8UNF,NBR, manufacturer part number LL3K8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146111975
Air inclusion max cc	2.90
Air inclusion max in3	0.18
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	3/8
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-8
End size 2	-12
End Type 1	Male push to connect
End Type 2	Female 37 degree swivel
Flow rate GPM	6.00
Flow rate LPM	22.71
Fluid compatibility	Hydraulic fluid
Fluid loss cc	2.10000
Fluid loss in3	0.12800
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Item type	Male half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	3/4-16 UNF
Valve type	2 way
Working pressure max psi	3700
Working pressure max BAR	255.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
