Danfoss LL2H6192

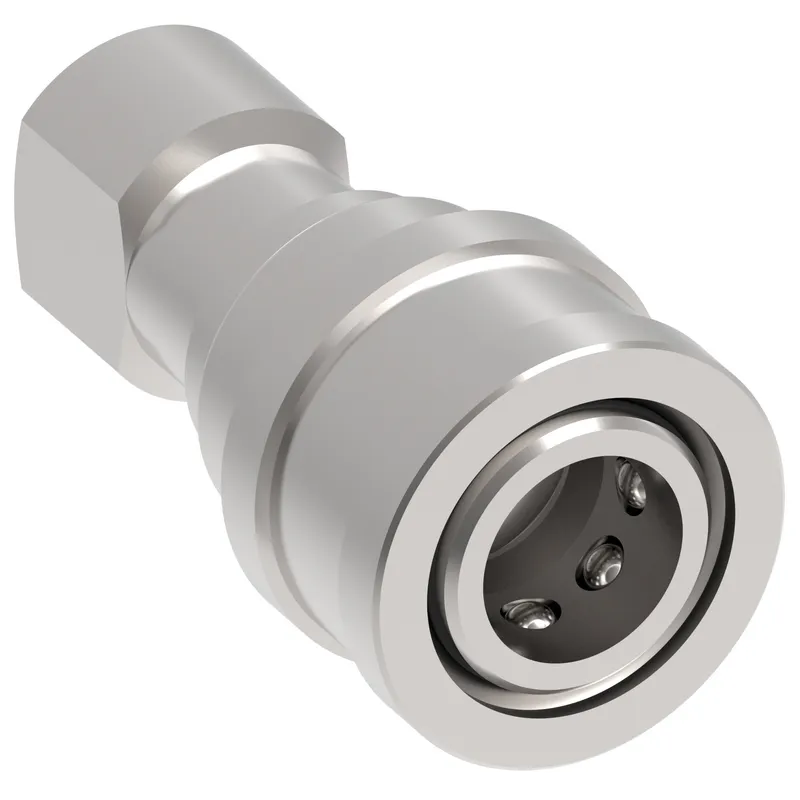

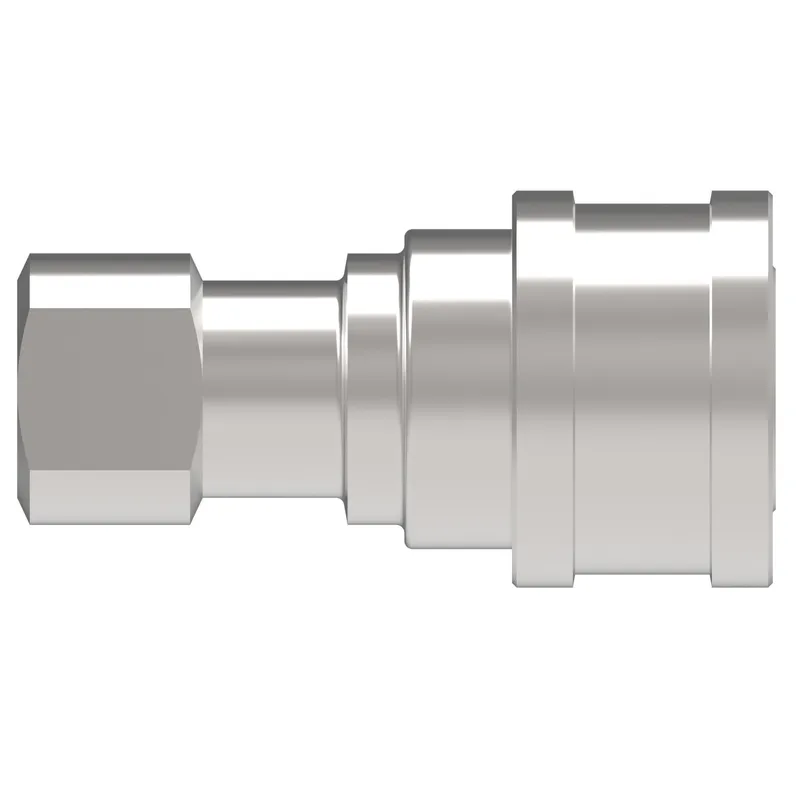

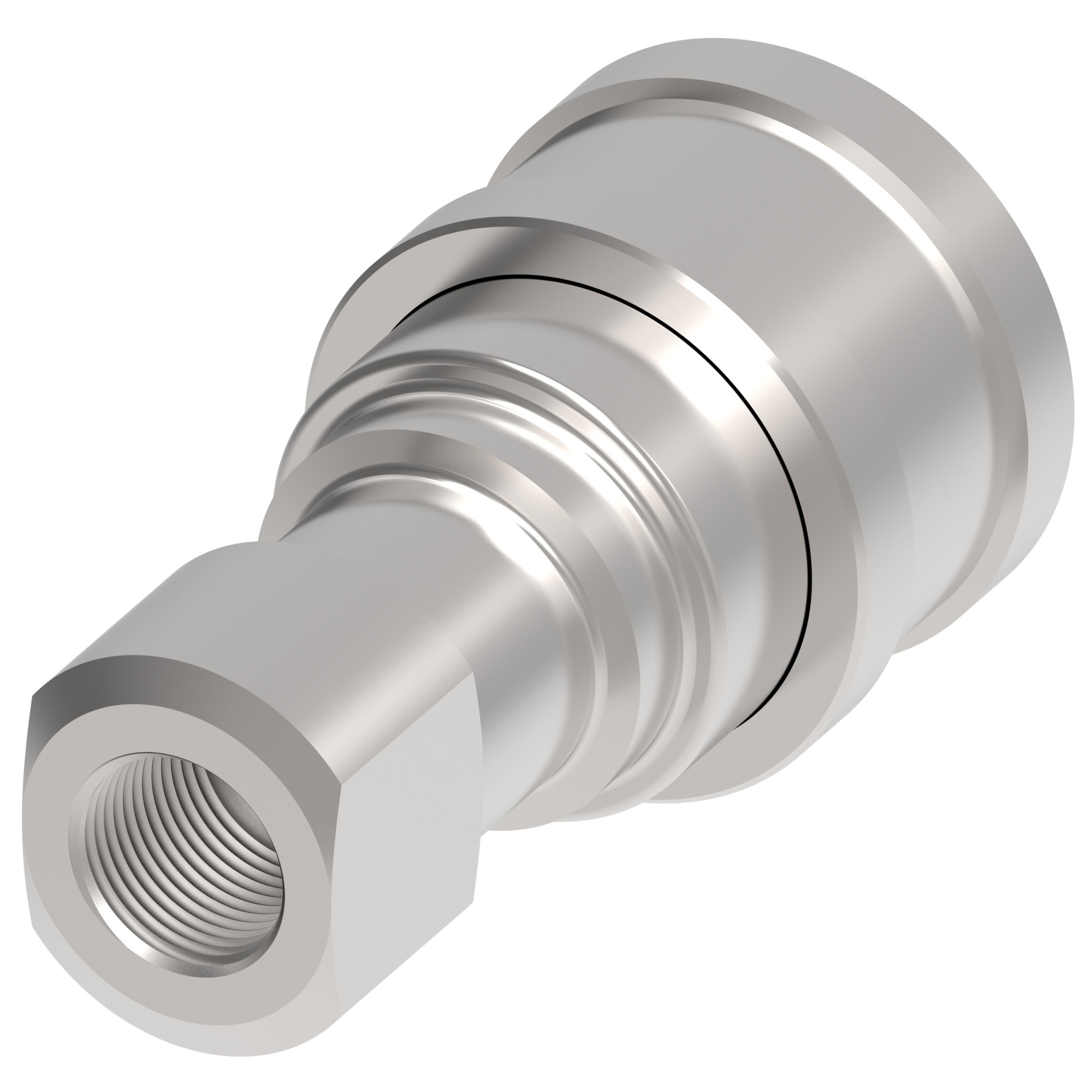

COUPLING,HK,F,1/4,SS,-6UNF,EPDM

MPN: LL2H6192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL2H6192?

Danfoss COUPLING,HK,F,1/4,SS,-6UNF,EPDM, manufacturer part number LL2H6192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	1.20
Air inclusion max in3	0.07
Angle shape	Straight
Body size	1/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	9/16"
End Type 1	Female ORB port ISO 11926-1
Flow rate GPM	3.00
Flow rate LPM	11.36
Fluid loss cc	0.90000
Fluid loss in3	0.05500
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Female half
Product material	Stainless steel
Seal material	Ethylene propylene (EPDM)
Valve type	2 way
Working pressure max psi	3700
Working pressure max BAR	255.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
