Danfoss LL20K61BS

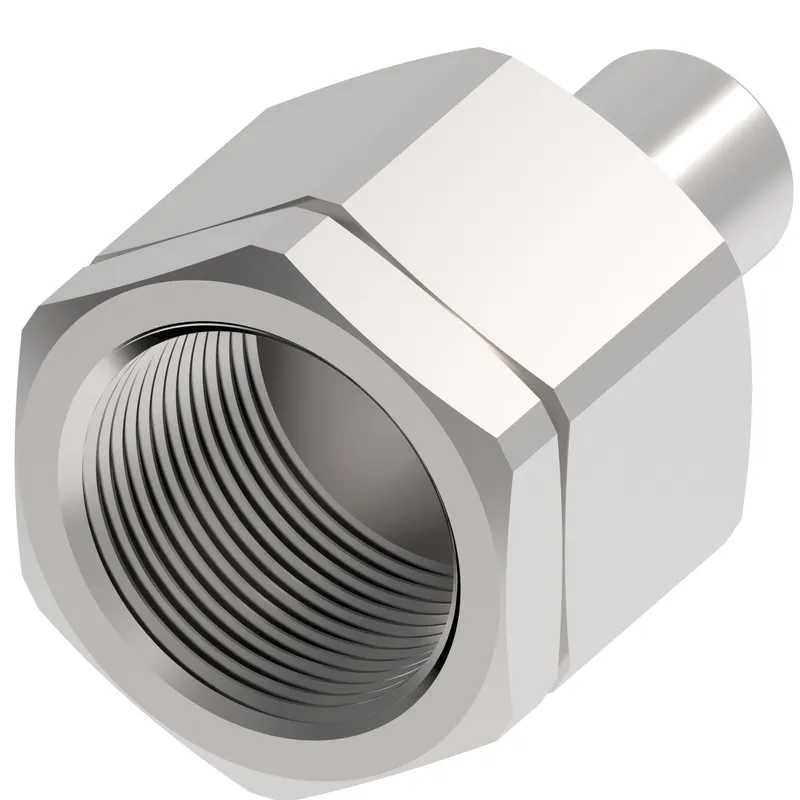

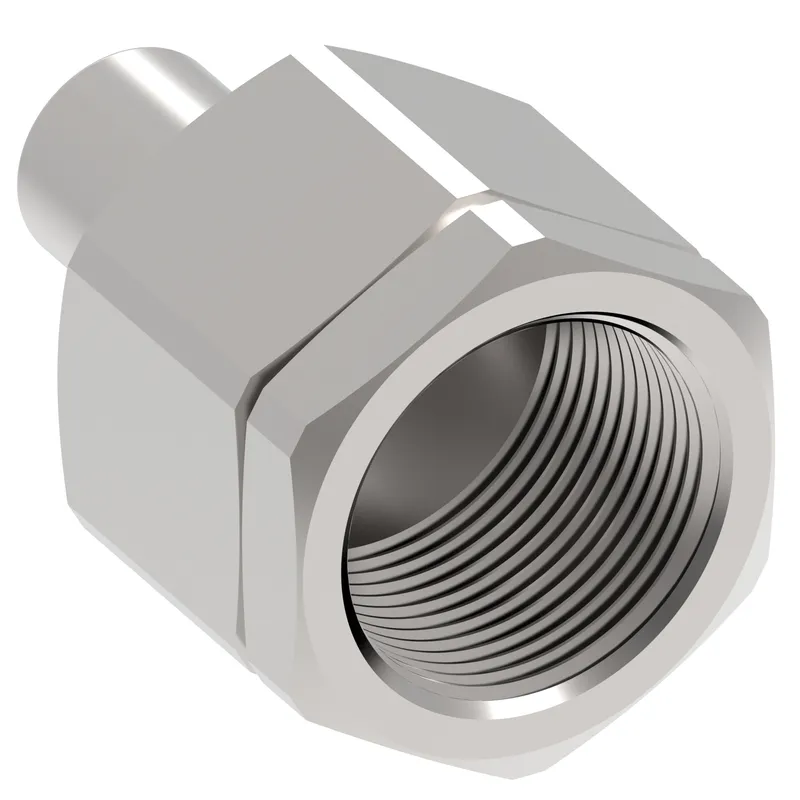

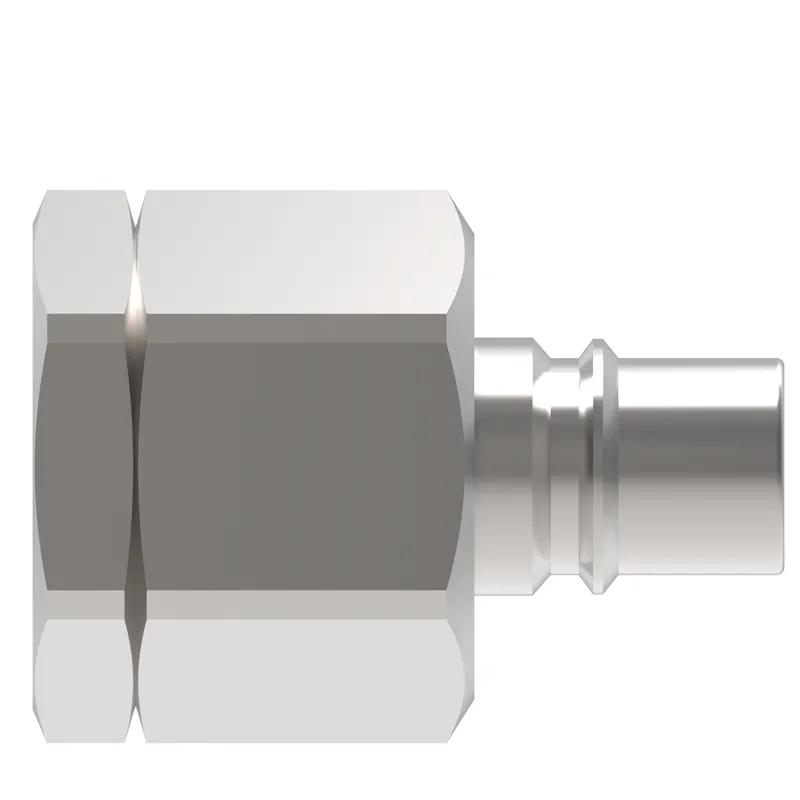

COUPLING,HK,M,2"1/2,303,-48BSPP,NBR

MPN: LL20K61BS
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL20K61BS?

Danfoss COUPLING,HK,M,2"1/2,303,-48BSPP,NBR, manufacturer part number LL20K61BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	9.90
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	2 1/2"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-48
End Type 1	Female BSPP port washer seal.
Flow rate GPM	200.00
Fluid compatibility	Hydraulic service
Fluid loss cc	209.90000
Hex size 1 IN	4.000
Item type	Male half
Latch type	Push/pull
Product material	303 Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 3
Valve type	2 way
Working pressure max psi	305
Working temperature max F	250
Working temperature min F	-40
