Danfoss LL1K11NV

Cplng HK Series MALE STAINLESS NO VALV

MPN: LL1K11NV
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

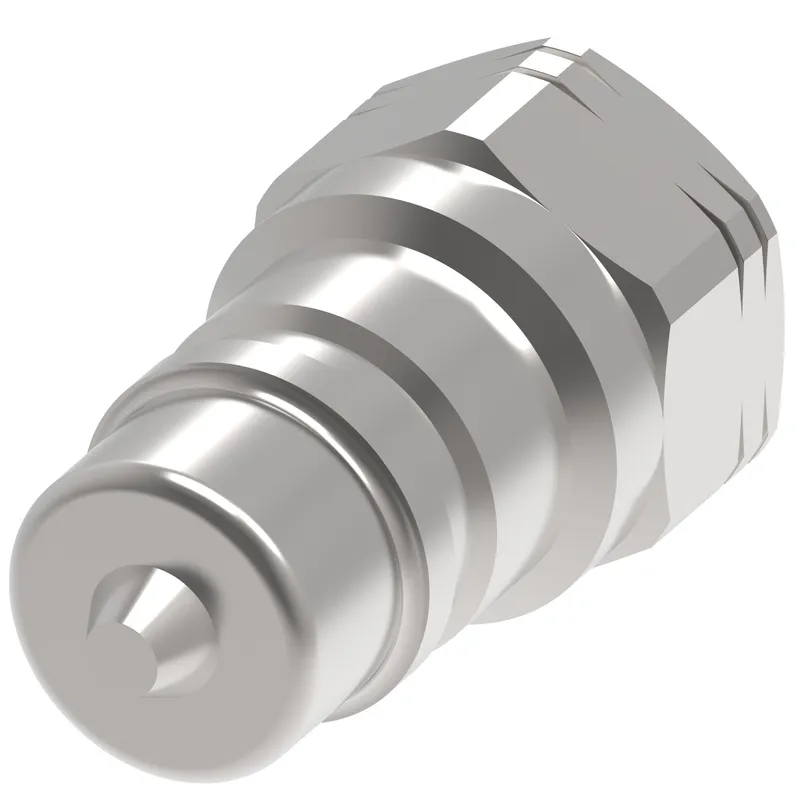

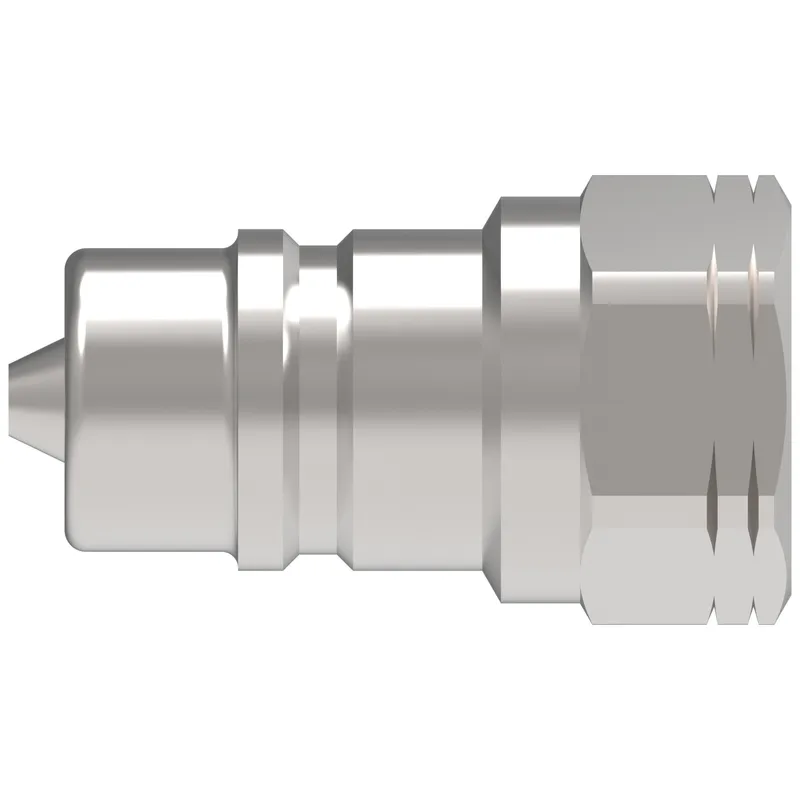

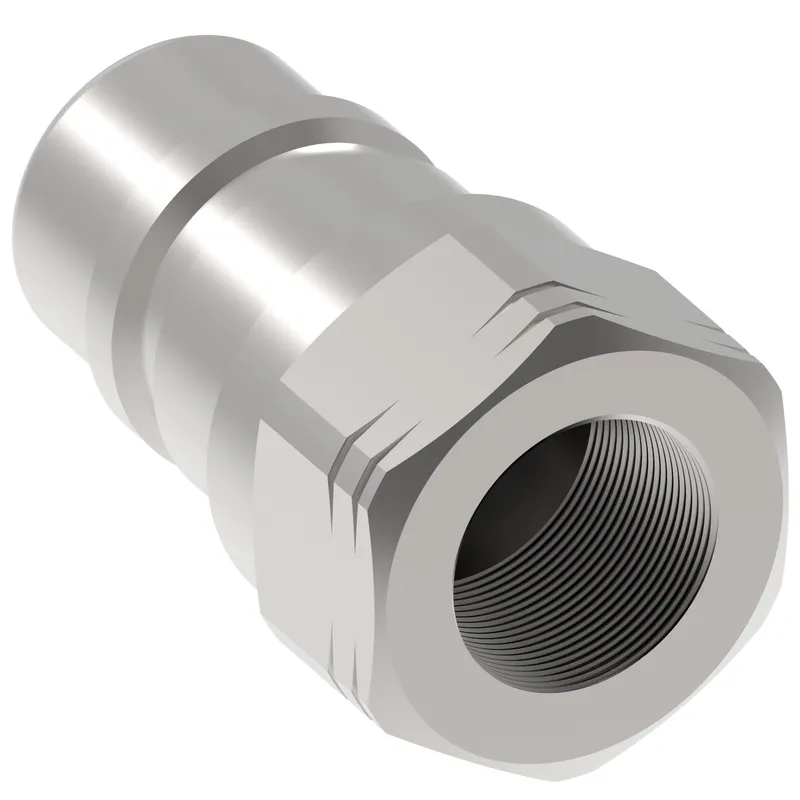

What is the Danfoss LL1K11NV?

Danfoss Cplng HK Series MALE STAINLESS NO VALV, manufacturer part number LL1K11NV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.60
Air inclusion max in3	0.04
Angle shape	Straight
Body size	1/8
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 2	-2
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	0.80
Flow rate LPM	3.03
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Hex size 1 IN	0.560
Hex size 1 MM	14.224
Item type	Male half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	1/8-27 NPTF
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

LL1K11NV: frequently asked questions

When can LL1K11NV be shipped?

LL1K11NV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LL1K11NV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LL1K11NV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LL1K11NV, subject to availability and destination.
