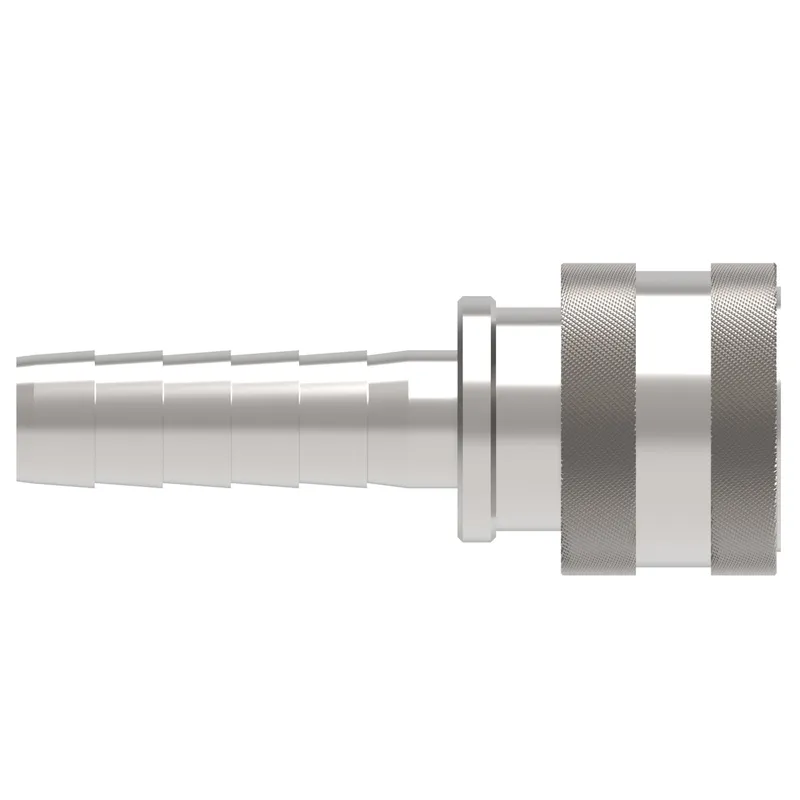

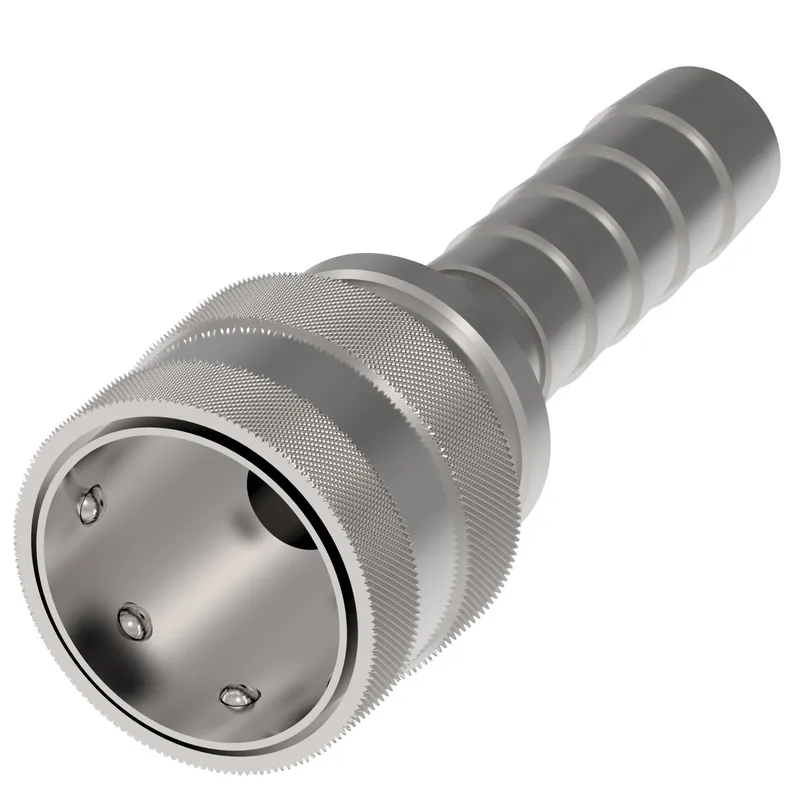

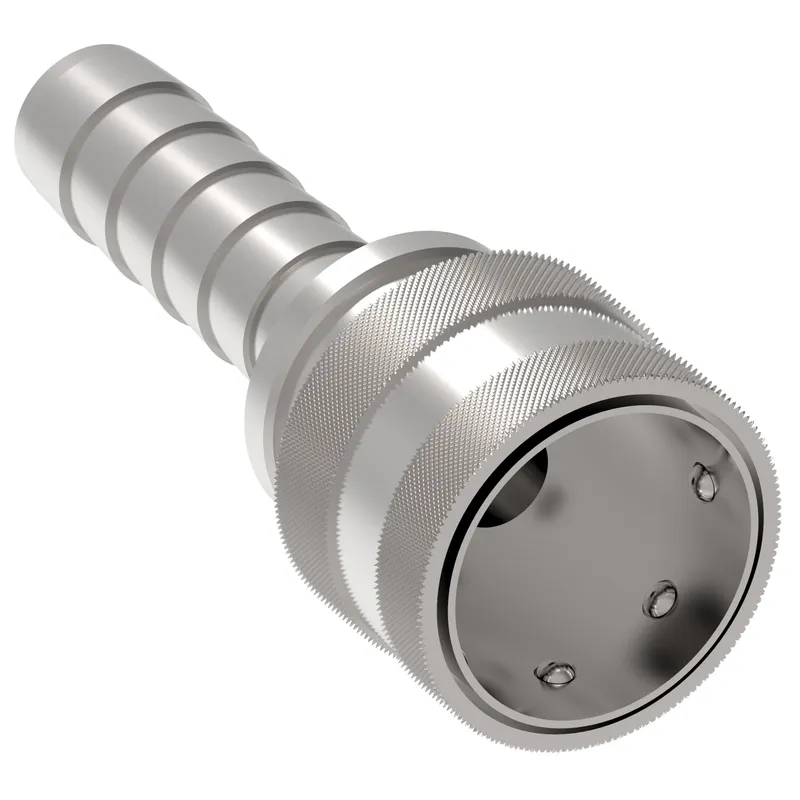

Danfoss LL16S51143OC

Cplng, SOCKET OC (OXYGEN CLEAN)

MPN: LL16S51143OC
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL16S51143OC?

Danfoss Cplng, SOCKET OC (OXYGEN CLEAN), manufacturer part number LL16S51143OC. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146207302
Angle shape	Straight
Body size	2"
Brand	Danfoss
Burst pressure min bar	386
Burst pressure min psi	5600
Connection style	Manual connect
End size 2	-32
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	490.00
Flow rate LPM	1854.85
Fluid compatibility	Versatile fluid
Hex size 1 IN	3.000
Hex size 1 MM	76.200
Item type	Female half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	1500
Working pressure max BAR	103.00
Working temperature max C	200
Working temperature max F	392
Working temperature min C	-20
Working temperature min F	-4
