SOCKET-PERM, 1S/08, AN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Marine and military |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LA7304069-08 be shipped?
LA7304069-08 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LA7304069-08 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LA7304069-08 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LA7304069-08, subject to availability and destination.

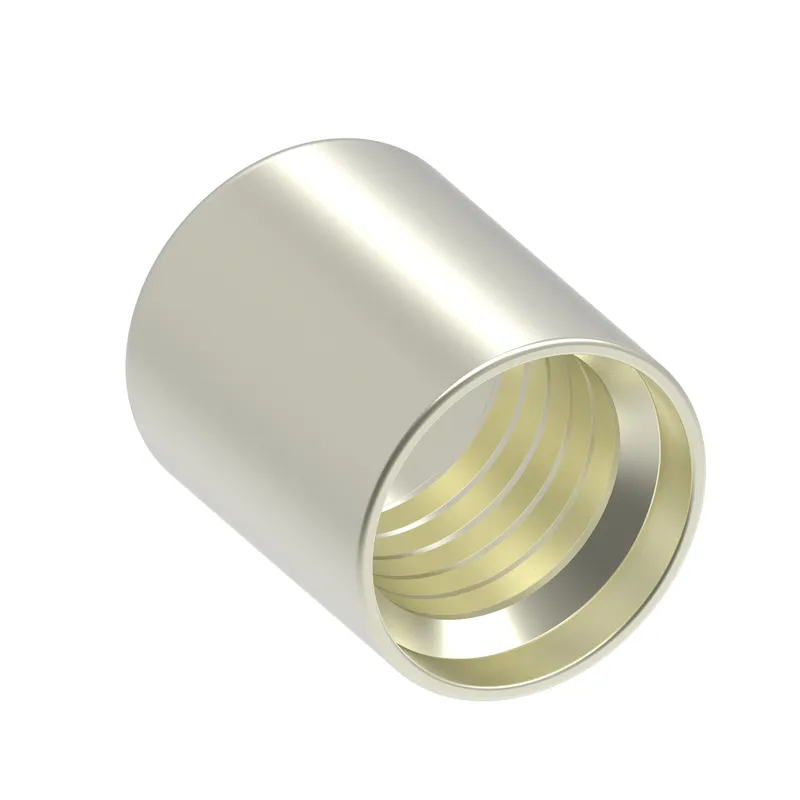

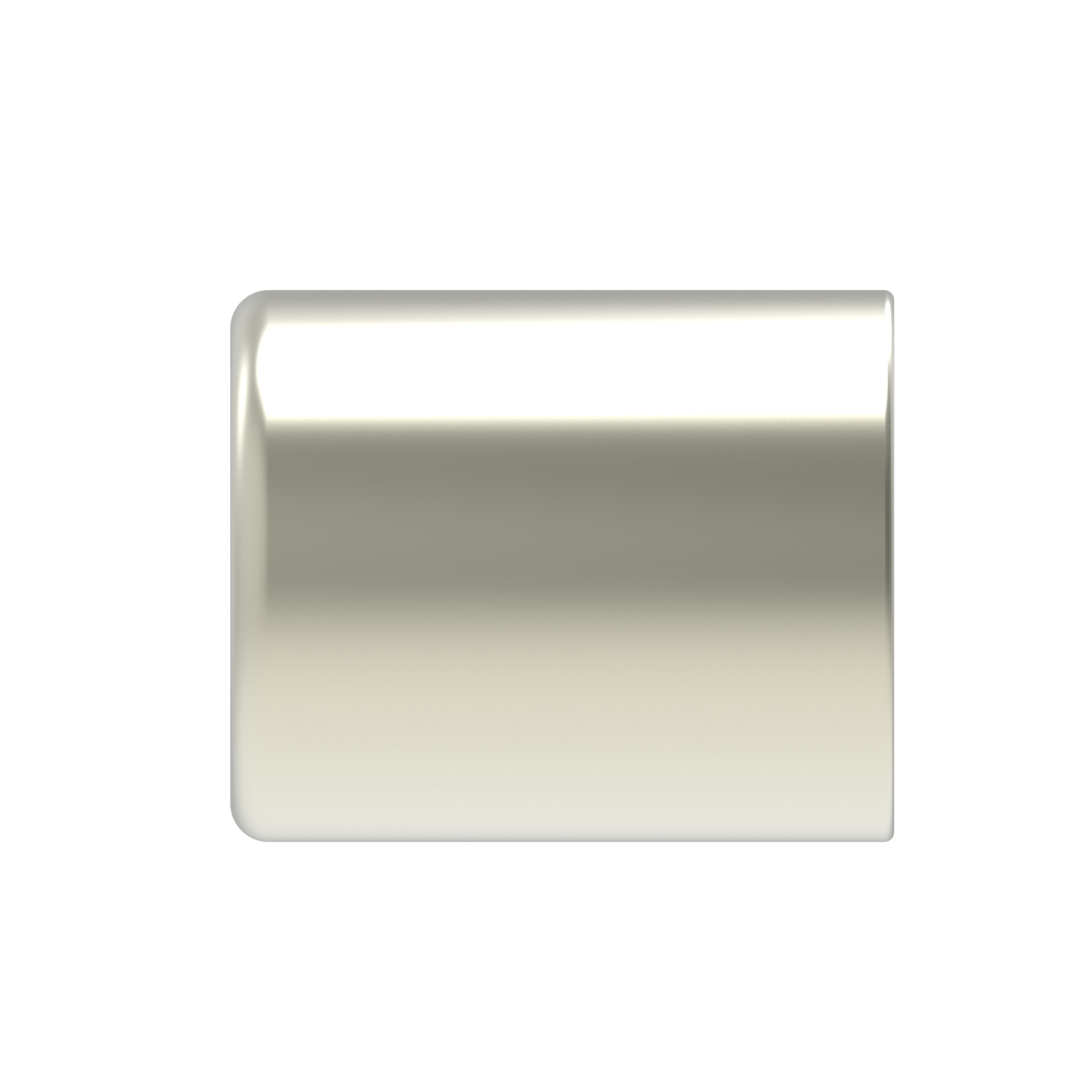

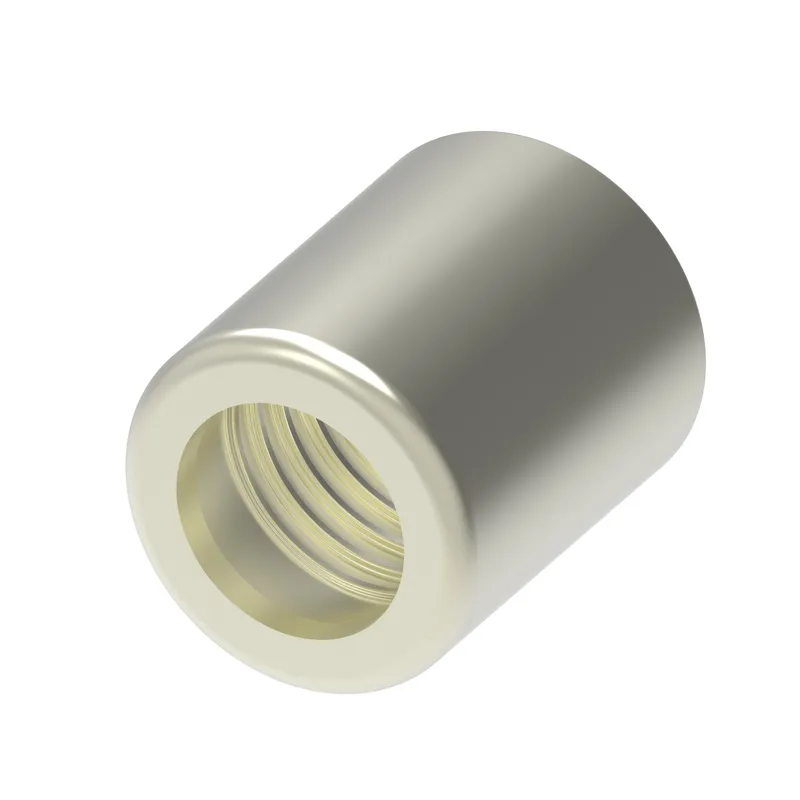

Danfoss SOCKET-PERM, 1S/08, AN, manufacturer part number LA7304069-08. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.354 |
| A dimension MM | 34.400 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Compatible hoses | FN781 |
| Construction Style | Crimp |
| End size 1 | -8 |
| Finish plating | Passivate |
| Hose size | -8 |
| Inside diameter IN | 0.732 |
| Inside diameter MM | 18.600 |
| Product height in | 1.125 |
| Product height mm | 28.575 |
| Product length in | 1.354 |
| Product length mm | 34.392 |
| Product material | 304 Stainless steel |
| Product width in | 1.125 |
| Product width mm | 28.575 mm |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
