Danfoss LA07071V0

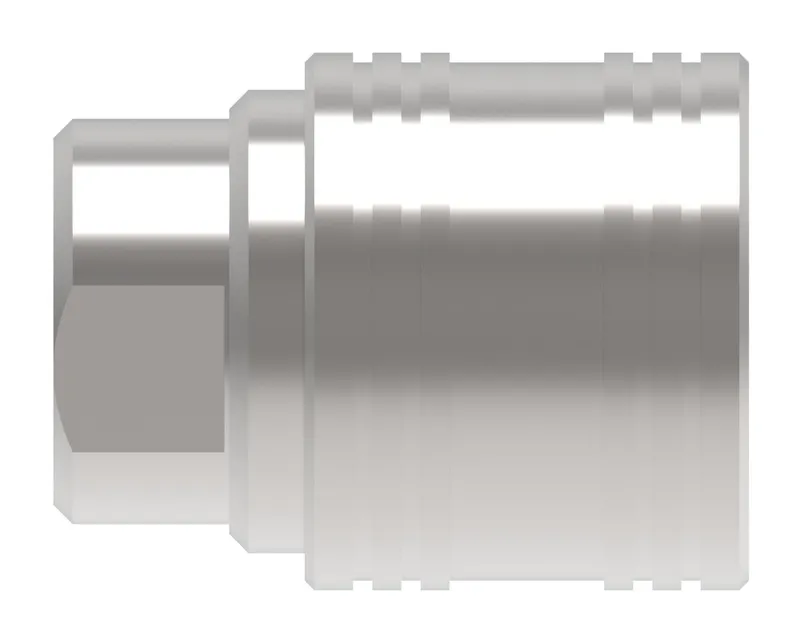

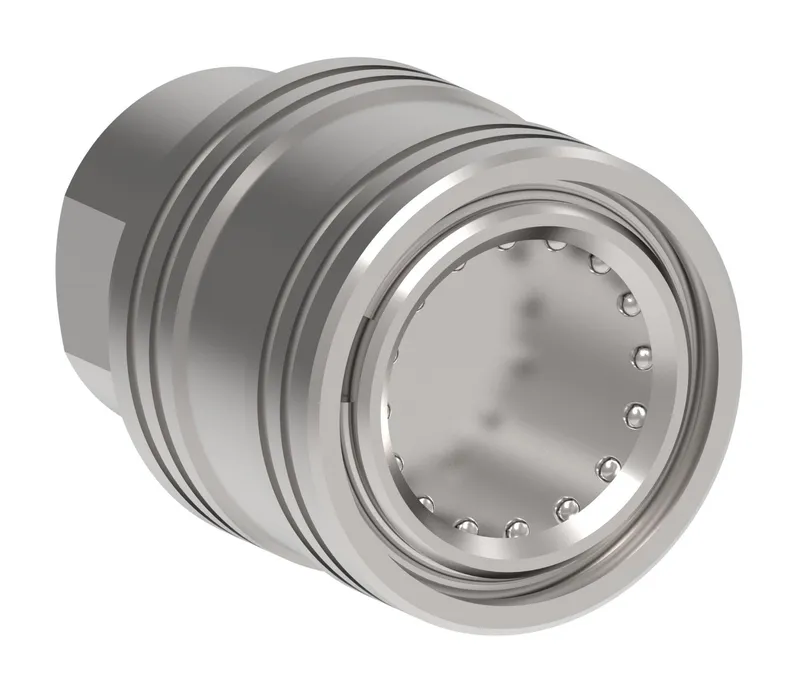

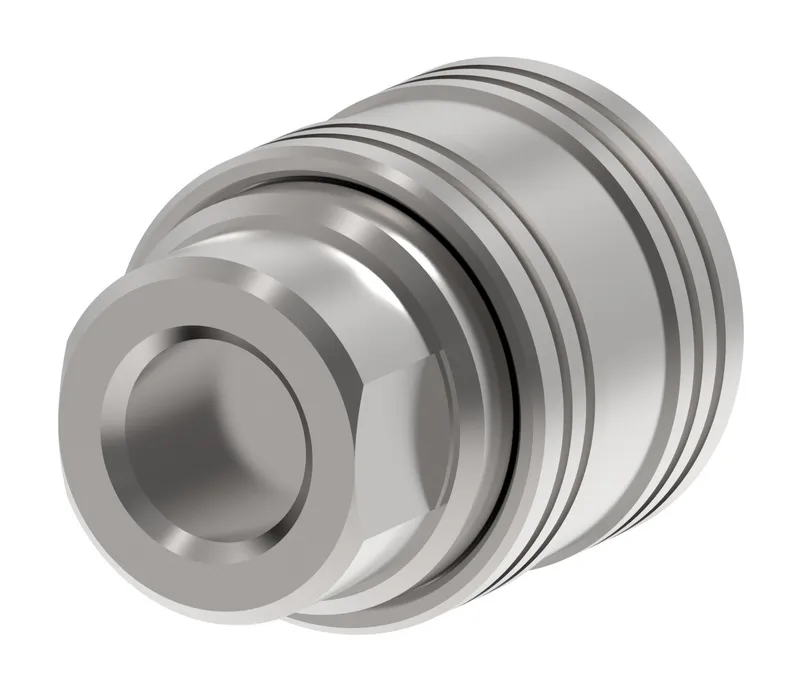

COUPLING,L7000,F,1"1/2,CS,-24BSP,FKM

MPN: LA07071V0
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LA07071V0?

Danfoss COUPLING,L7000,F,1"1/2,CS,-24BSP,FKM, manufacturer part number LA07071V0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Application	Fluid transfer, Max flow capacity, Refrigerant circuits
Body size	1 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 1	-24
End Type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Hex size 1 IN	2.560
Item type	Female half
Latch type	Push to connect
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Sub brand	Gromelle
Thread size 1	G 1 1/2
Valve type	Straight thru
Working pressure max psi	345
Working temperature max F	392
Working temperature min F	-4
