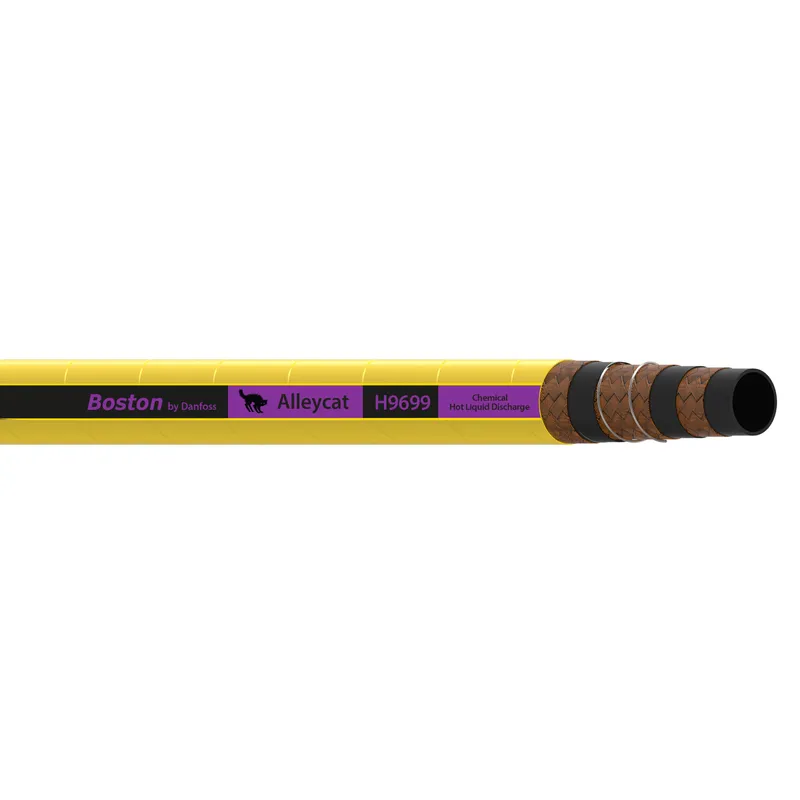

Danfoss H969932

HOSE-BOS, H9699, -32, CHEMICAL, YW, 50FT

MPN
H969932
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H969932?

Danfoss HOSE-BOS, H9699, -32, CHEMICAL, YW, 50FT, manufacturer part number H969932. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789271082
Abrasion resistanceStandard
ApplicationHot liquid transfer
Bend radius min (inch)16.000
Bend radius min (mm)406.400
BrandBoston by Danfoss
Burst pressure (bar)164
Burst pressure (psi)2400
ColorYellow
Construction3 Ply braid
Cover materialEPDM
Inside diameter (inch)2.00
Inside diameter (mm)50.80
Lay line styleInk transfer
Length (in)600.00000
Length (mm)15240.00000
Outside diameter (inch)2.69
Outside diameter (mm)68.33
Package formBulk
Product height in2.000
Product height mm50.800
Product width in2.000
Product width mm50.800 mm
Qualified hose fittingsCam and groove
Reinforcement materialFabric
SeriesH9699 Alleycat
Size-32
Tube materialEPDM
Working pressure max (bar)41
Working pressure max (psi)600
Working temperature max (C)149
Working temperature max (F)300.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H969932: frequently asked questions

When can H969932 be shipped?

H969932 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H969932 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H969932 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H969932, subject to availability and destination.
