Danfoss H962220

HOSE-BOS, H9622, -20, AIR/MULTI, YW

MPN
H962220
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

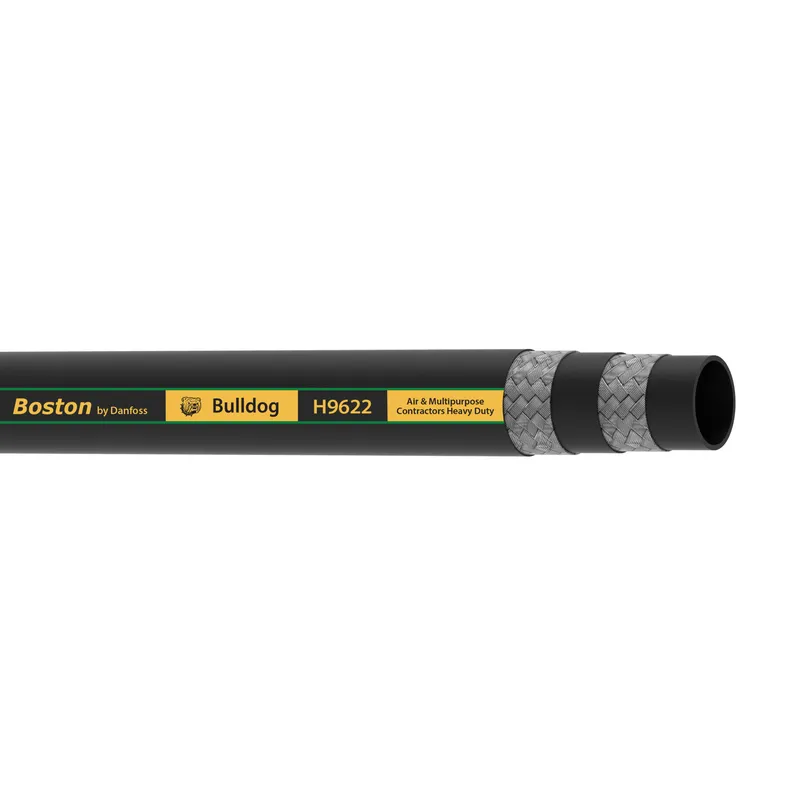

What is the Danfoss H962220?

Danfoss HOSE-BOS, H9622, -20, AIR/MULTI, YW, manufacturer part number H962220. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267924
Abrasion resistanceStandard
ApplicationPneumatic tools
BrandBoston by Danfoss
Burst pressure (bar)140
Burst pressure (psi)2000
ColorYellow
CompliancesASTM D380
ConductivityConductive
Construction1 Wire Braid
Cover materialChloroprene (CR)
Inside diameter (inch)1.25
Inside diameter (mm)31.80
Lay line styleInk transfer
Outside diameter (inch)1.72
Outside diameter (mm)43.69
Package formBulk
Product height in1.250
Product height mm31.800
Product width in1.250
Product width mm31.800 mm
Qualified hose fittings430 U
Reinforcement materialBrass plated steel wire
SeriesH9622 Series
Size-20
Tube materialNitrile (NBR)
Working pressure max (bar)35
Working pressure max (psi)500
Working temperature max (C)93
Working temperature max (F)200.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H962220: frequently asked questions

When can H962220 be shipped?

H962220 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H962220 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H962220 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H962220, subject to availability and destination.
