Danfoss H88124-100

HOSE-WTH, H881, -24, 100FT, RL, R19/2SC

MPN
H88124-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

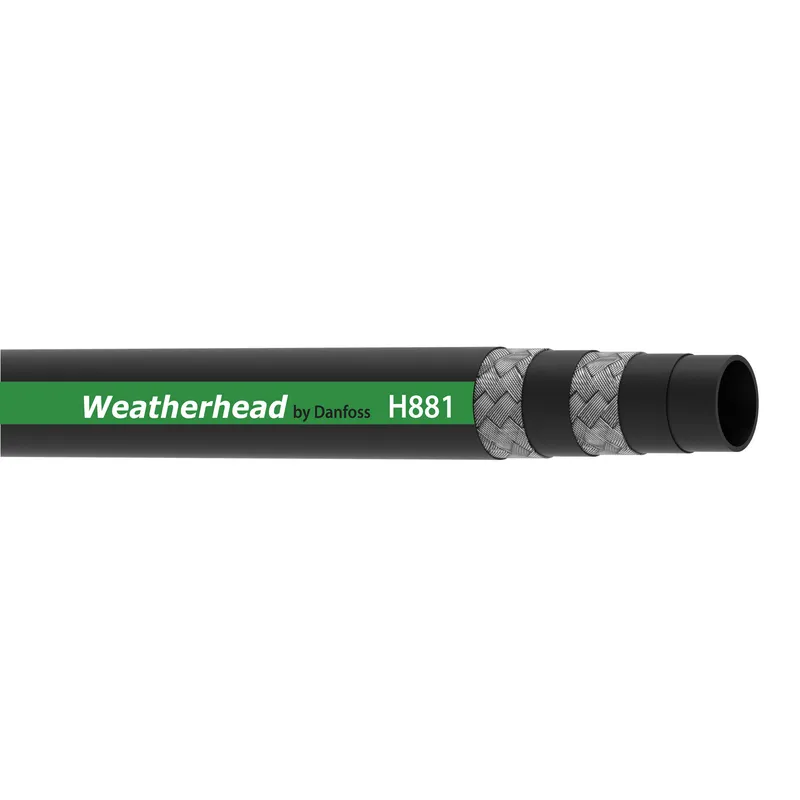

What is the Danfoss H88124-100?

Danfoss HOSE-WTH, H881, -24, 100FT, RL, R19/2SC, manufacturer part number H88124-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Abrasion resistanceStandard
ApplicationGeneral industrial use
Bend radius min (inch)9.840
Bend radius min (mm)250.000
BrandWeatherhead by Danfoss
Burst pressure (bar)552
Burst pressure (psi)8000
ColorBlack
CompliancesISO 18752-DC Performance
Conditional temp range260F with petrol based
ConductivityConductive
Construction2 Wire Braid
Cover materialStyrene Butadiene Rubber (SBR)
Impulse cycle (cycles)100000
Inside diameter (inch)1.50
Inside diameter (mm)38.10
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)2.04
Outside diameter (mm)51.82
Package formReel
Product height in1.500
Product height mm38.100
Product width in1.500
Product width mm38.1
Qualified hose fittingsBarbed inserts
Reinforcement materialBrass plated steel wire
SeriesH881 Series
Size-24
Tube materialSynthetic Rubber
Tube wall thickness (inch)0.54
Tube wall thickness (mm)13.72
Vacuum rating (inHg)24
Vacuum rating (mmHg)599.43
Working pressure max (bar)138
Working pressure max (psi)2000
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-46
Working temperature min (F)-50.0
