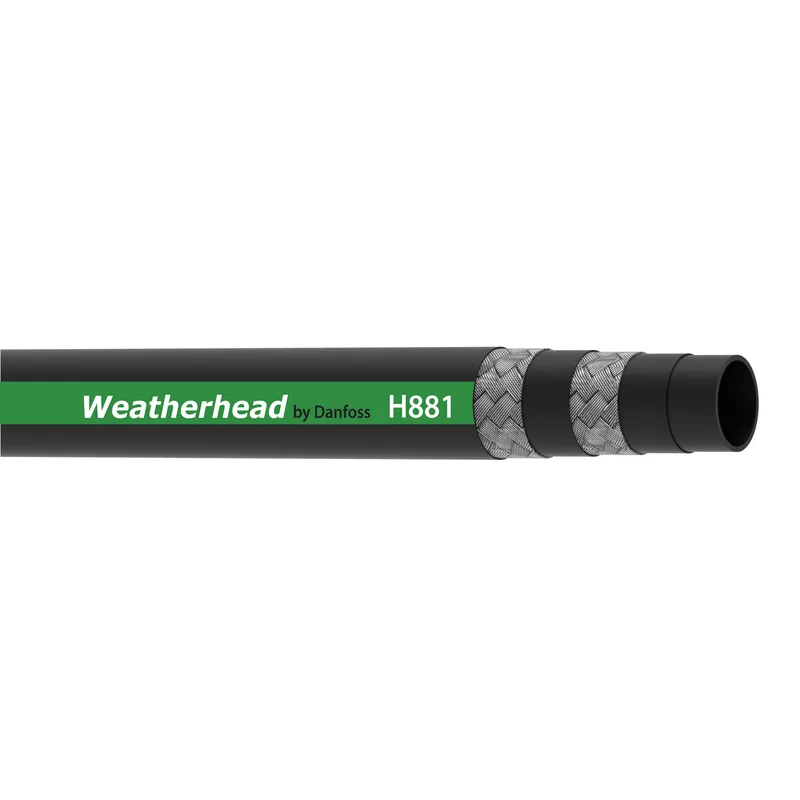

Danfoss H88108

HOSE-WTH, H881, -8, R19/2SC

MPN
H88108
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H88108?

Danfoss HOSE-WTH, H881, -8, R19/2SC, manufacturer part number H88108. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Abrasion resistanceStandard
ApplicationGeneral industrial use
Bend radius min (inch)2.360
Bend radius min (mm)60.000
BrandWeatherhead by Danfoss
Burst pressure (bar)1440
Burst pressure (psi)20880
ColorBlack
CompliancesISO 18752-DC Performance
Conditional temp range260F with petrol based
ConductivityConductive
Construction2 Wire Braid
Cover materialStyrene Butadiene Rubber (SBR)
Impulse cycle (cycles)100000
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk transfer
Outside diameter (inch)0.82
Outside diameter (mm)20.83
Package formBulk
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.7
Qualified hose fittingsBarbed inserts
Reinforcement materialBrass plated steel wire
SeriesH881 Series
Size-8
Tube materialSynthetic Rubber
Vacuum rating (inHg)24
Vacuum rating (mmHg)599.43
Working pressure max (bar)360
Working pressure max (psi)5220
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-46
Working temperature min (F)-50.0

H88108: frequently asked questions

When can H88108 be shipped?

H88108 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H88108 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H88108 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H88108, subject to availability and destination.
