Danfoss H835920-150

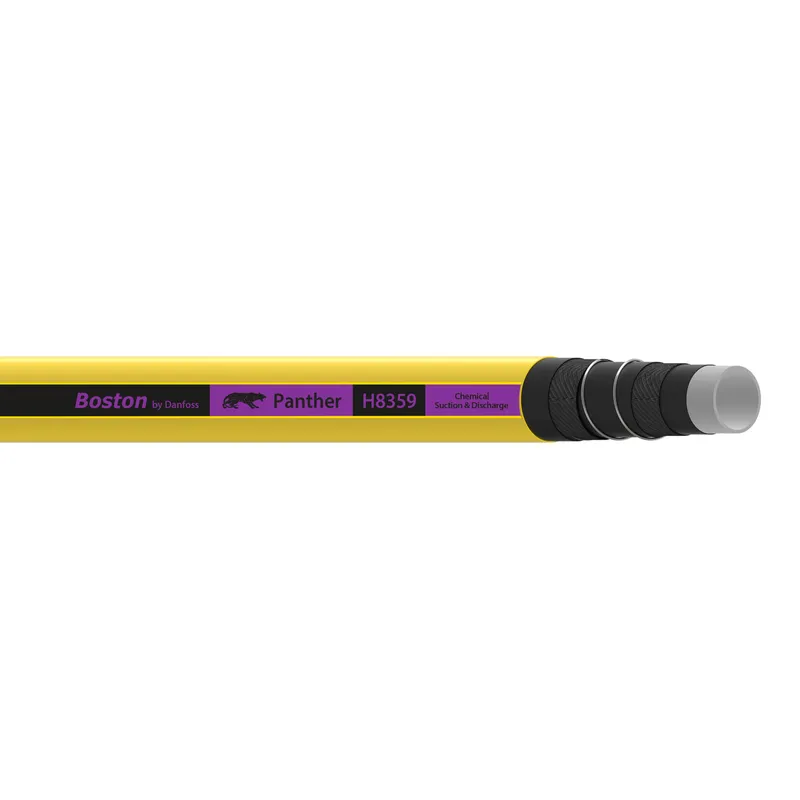

HOSE-BOS,H8359,-20,CHEMICAL,YW,150FT

MPN
H835920-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H835920-150?

Danfoss HOSE-BOS,H8359,-20,CHEMICAL,YW,150FT, manufacturer part number H835920-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789298645
Abrasion resistanceStandard
ApplicationChemical transfer
Bend radius min (inch)6.690
Bend radius min (mm)170.000
BrandBoston by Danfoss
Burst pressure (bar)69
Burst pressure (psi)1000
ColorYellow
ConductivityConductive
Construction2 Wire Braid
Cover materialEPDM
Inside diameter (inch)1.25
Inside diameter (mm)31.80
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)1.88
Outside diameter (mm)47.75
Package formReel
Product height in1.250
Product height mm31.800
Product width in1.250
Product width mm31.800 mm
Qualified hose fittingsCam and groove
Reinforcement materialBrass plated steel wire
SeriesH8359 Panther
Size-20
Tube materialUHMW
Tube wall thickness (inch)0.19
Tube wall thickness (mm)4.70
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)17
Working pressure max (psi)250
Working temperature max (C)66
Working temperature max (F)150.0
Working temperature min (C)-42
Working temperature min (F)-45.0
