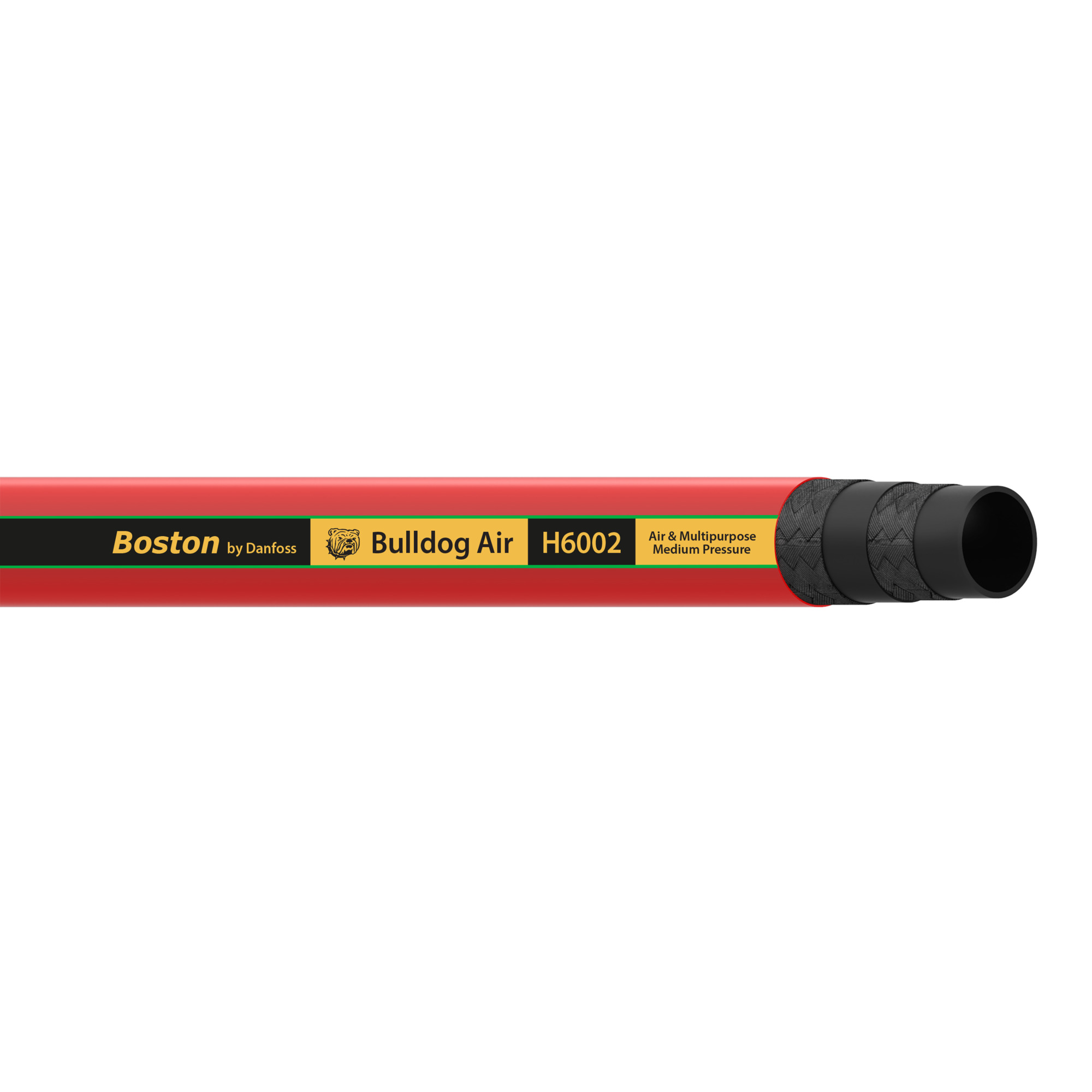

Danfoss H600224-100

HOSE-BOS,H6002,-24,AIR/MULTI,RD,100FT

MPN
H600224-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H600224-100?

Danfoss HOSE-BOS,H6002,-24,AIR/MULTI,RD,100FT, manufacturer part number H600224-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267726
Abrasion resistanceStandard
ApplicationForestry
BrandBoston by Danfoss
Burst pressure (bar)112
Burst pressure (psi)1600
ColorRed
CompliancesISO 18752-DC Performance
Construction2 Ply braid
Cover materialChloroprene (CR)
Inside diameter (inch)1.50
Inside diameter (mm)38.10
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)2.10
Outside diameter (mm)53.34
Package formReel
Product height in1.500
Product height mm38.100
Product width in1.500
Product width mm38.100 mm
Qualified hose fittings1A/Z Series
Reinforcement materialFabric
SeriesH6002 Bulldog Air
Size-24
Tube materialNitrile (NBR)
Working pressure max (bar)28
Working pressure max (psi)400
Working temperature max (C)93
Working temperature max (F)200.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H600224-100: frequently asked questions

When can H600224-100 be shipped?

H600224-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H600224-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H600224-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H600224-100, subject to availability and destination.
