Danfoss H45412-250R

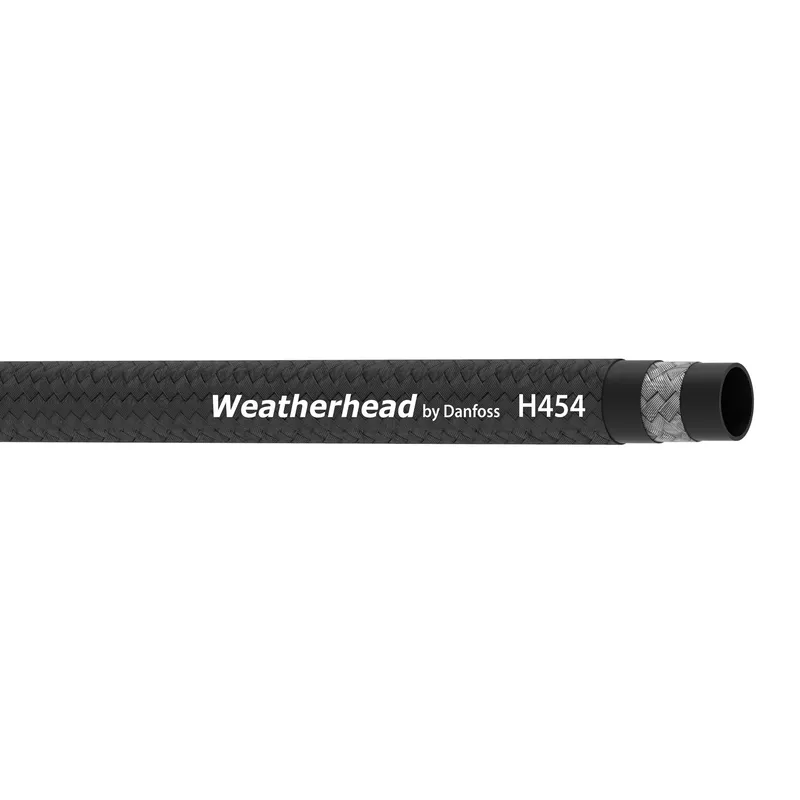

HOSE-WTH, H454, -12, 250FT, RL, R1/1SN

MPN
H45412-250R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H45412-250R?

Danfoss HOSE-WTH, H454, -12, 250FT, RL, R1/1SN, manufacturer part number H45412-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789273192
Abrasion resistancePremium
ApplicationConstruction
Bend radius min (inch)4.720
Bend radius min (mm)120.000
BrandWeatherhead by Danfoss
Burst pressure (bar)828
Burst pressure (psi)12000
ColorBlack
ConductivityConductive
Construction2 Wire Braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk wheel
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)1.13
Outside diameter (mm)28.60
Package formReel
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH454 Series
Size-12
Tube materialNitrile (NBR)
Working pressure max (bar)207
Working pressure max (psi)3000
Working temperature max (C)121
Working temperature max (F)250.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H45412-250R: frequently asked questions

When can H45412-250R be shipped?

H45412-250R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H45412-250R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H45412-250R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H45412-250R, subject to availability and destination.
