Danfoss H42520-150

HOSE-WTH, H425, -20, 150FT, RL, R2/2SN

MPN
H42520-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

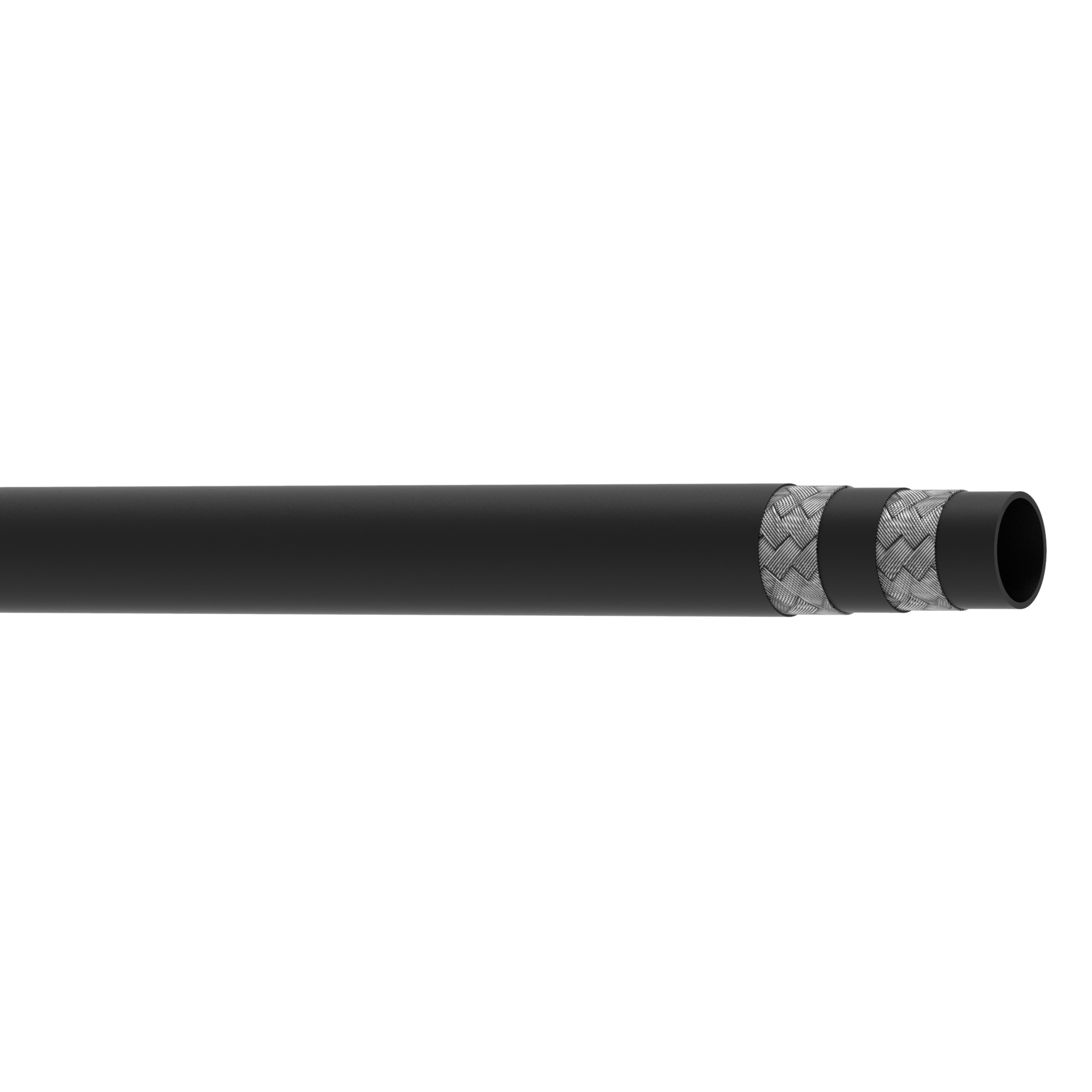

What is the Danfoss H42520-150?

Danfoss HOSE-WTH, H425, -20, 150FT, RL, R2/2SN, manufacturer part number H42520-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Abrasion resistancePremium
ApplicationAgriculture
Bend radius min (inch)16.540
Bend radius min (mm)420.000
BrandWeatherhead by Danfoss
Burst pressure (bar)452
Burst pressure (psi)6600
CertificationsMSHA Approved
ColorBlack
CompliancesSAE 100R2AT
Construction2 Wire Braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)1.25
Inside diameter (mm)31.80
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)1.95
Outside diameter (mm)49.60
Package formReel
Product height in1.250
Product height mm31.800
Product width in1.250
Product width mm31.8
Qualified hose fittingsCompression
Reinforcement materialBrass plated steel wire
SeriesH425 Series
Size-20
Tube materialNitrile (NBR)
Tube wall thickness (inch)0.32
Tube wall thickness (mm)8.00
Working pressure max (bar)113
Working pressure max (psi)1650
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H42520-150: frequently asked questions

When can H42520-150 be shipped?

H42520-150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H42520-150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H42520-150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H42520-150, subject to availability and destination.
