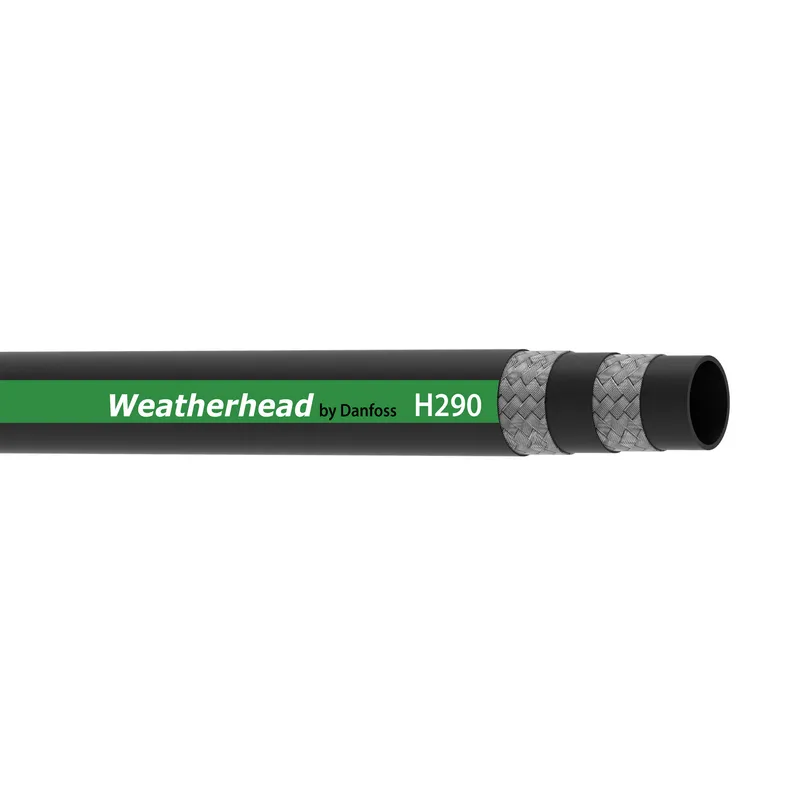

Danfoss H29004-500R

HOSE-WTH, H290, -4, 500FT, RL, R2/2SN

MPN
H29004-500R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H29004-500R?

Danfoss HOSE-WTH, H290, -4, 500FT, RL, R2/2SN, manufacturer part number H29004-500R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267252
Abrasion resistancePremium
ApplicationGeneral industrial use
Bend radius min (inch)3.940
Bend radius min (mm)100.000
BrandWeatherhead by Danfoss
Burst pressure (bar)1792
Burst pressure (psi)26000
CertificationsUSCG
ColorBlack
CompliancesEN853 2SN
Conditional temp range-40F to 158F for water based
ConductivityConductive
Construction2 Wire Braid
Cover materialNitrile (NBR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.25
Inside diameter (mm)6.40
Lay line styleInk transfer
Length (in)6000.00000
Outside diameter (inch)0.59
Outside diameter (mm)15.10
Package formReel
Product height in0.250
Product height mm6.400
Product width in0.250
Product width mm6.4
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH290 Series
Size-4
Tube materialNitrile (NBR)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.00
Working pressure max (bar)448
Working pressure max (psi)6500
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H29004-500R: frequently asked questions

When can H29004-500R be shipped?

H29004-500R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H29004-500R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H29004-500R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H29004-500R, subject to availability and destination.
