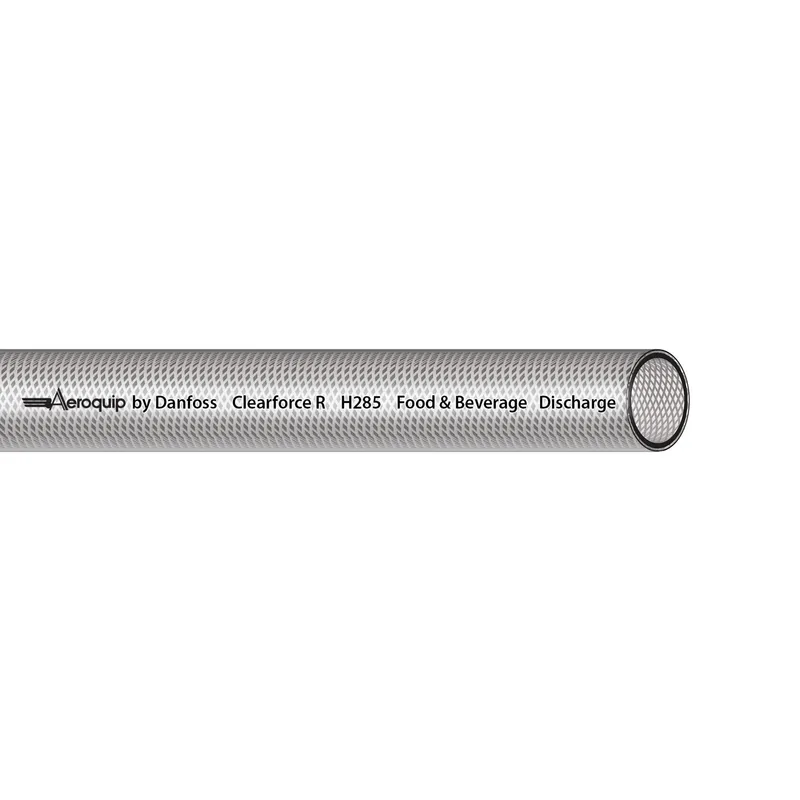

Danfoss H28503-300R

HOSE-BOS, H285, -3, FOOD/BEV, CL, 300FT

MPN
H28503-300R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H28503-300R?

Danfoss HOSE-BOS, H285, -3, FOOD/BEV, CL, 300FT, manufacturer part number H28503-300R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789269942
Abrasion resistancePremium
ApplicationFertilizers and pesticides
Bend radius min (inch)0.750
Bend radius min (mm)19.050
BrandBoston by Danfoss
Burst pressure (bar)84
Burst pressure (psi)1200
CertificationsFDA Approved
ColorClear
CompliancesFDA Approved
ConductivityNon-conductive
Construction1 Ply braid
Cover materialPolyvinyl chloride (PVC)
Inside diameter (inch)0.19
Inside diameter (mm)4.80
Lay line styleInk jet
Length (in)3600.00000
Length (mm)91440.00000
Outside diameter (inch)0.37
Outside diameter (mm)9.40
Package formReel
Product height in0.190
Product height mm4.800
Product width in0.190
Product width mm4.800 mm
Qualified hose fittingsE Series
Reinforcement materialFabric
SeriesH285 Series
Size-3
Tube materialPolyvinyl chloride (PVC)
Working pressure max (bar)21
Working pressure max (psi)305
Working temperature max (C)65
Working temperature max (F)150.0
Working temperature min (C)-9
Working temperature min (F)15.0

H28503-300R: frequently asked questions

When can H28503-300R be shipped?

H28503-300R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H28503-300R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H28503-300R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H28503-300R, subject to availability and destination.
