Danfoss H27504YW-500R

HOSE-BOS, H275, -4, AIR/MULTI, YW, 500FT

MPN
H27504YW-500R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

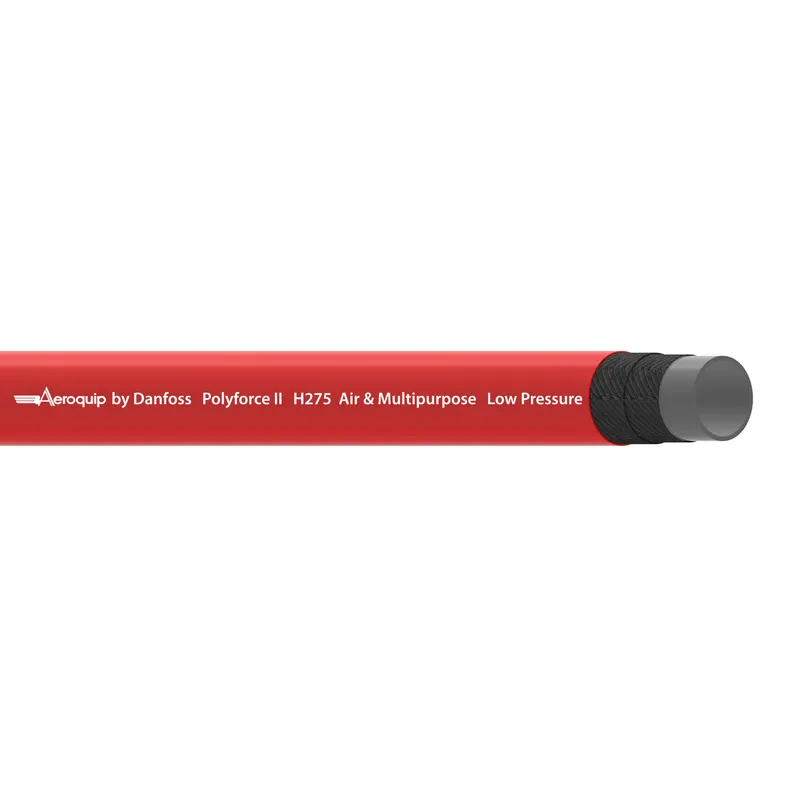

What is the Danfoss H27504YW-500R?

Danfoss HOSE-BOS, H275, -4, AIR/MULTI, YW, 500FT, manufacturer part number H27504YW-500R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC815628028592
Abrasion resistancePremium
ApplicationLubrication systems
Bend radius min (inch)0.630
Bend radius min (mm)15.900
BrandBoston by Danfoss
Burst pressure (bar)69
Burst pressure (psi)1000
ColorYellow
CompliancesASTM D380
ConductivityConductive
Construction1 Ply spiral
Cover materialPolyvinyl chloride (PVC)
Inside diameter (inch)0.25
Inside diameter (mm)6.40
Lay line styleInk jet
Length (in)6000.00000
Outside diameter (inch)0.47
Outside diameter (mm)11.94
Package formReel
Product height in0.250
Product height mm6.400
Product width in0.250
Product width mm6.400 mm
Qualified hose fittingsE Series
Reinforcement materialFabric
SeriesH275 Series
Size-4
Tube materialPolyvinyl chloride (PVC)
Working pressure max (bar)21
Working pressure max (psi)300
Working temperature max (C)65
Working temperature max (F)150.0
Working temperature min (C)-23
Working temperature min (F)-10.0

H27504YW-500R: frequently asked questions

When can H27504YW-500R be shipped?

H27504YW-500R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H27504YW-500R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H27504YW-500R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H27504YW-500R, subject to availability and destination.
