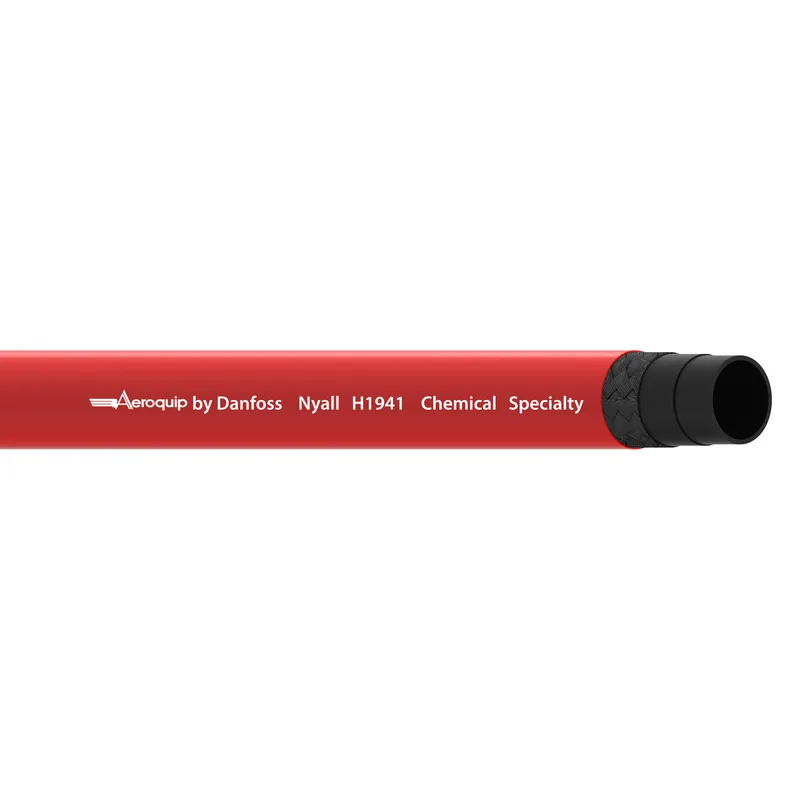

Danfoss H194106RD-500R

HOSE-BOS, H1941, -6, CHEMICAL, BK, 500FT

MPN
H194106RD-500R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H194106RD-500R?

Danfoss HOSE-BOS, H1941, -6, CHEMICAL, BK, 500FT, manufacturer part number H194106RD-500R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267566
Abrasion resistanceStandard
ApplicationChemical transfer
BrandBoston by Danfoss
Burst pressure (bar)140
Burst pressure (psi)2000
ColorBlack
CompliancesASTM D380
ConductivityConductive
Construction1 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)0.38
Inside diameter (mm)9.50
Lay line styleInk jet
Length (in)6000.00000
Outside diameter (inch)0.69
Outside diameter (mm)17.53
Package formReel
Product height in0.380
Product height mm9.500
Product width in0.380
Product width mm9.500 mm
Qualified hose fittingsTTC12
Reinforcement materialFabric
SeriesH1941 Nyall
Size-6
Tube materialNylon 11
Working pressure max (bar)35
Working pressure max (psi)500
Working temperature max (C)71
Working temperature max (F)160.0
Working temperature min (C)-34
Working temperature min (F)-30.0

H194106RD-500R: frequently asked questions

When can H194106RD-500R be shipped?

H194106RD-500R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H194106RD-500R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H194106RD-500R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H194106RD-500R, subject to availability and destination.
