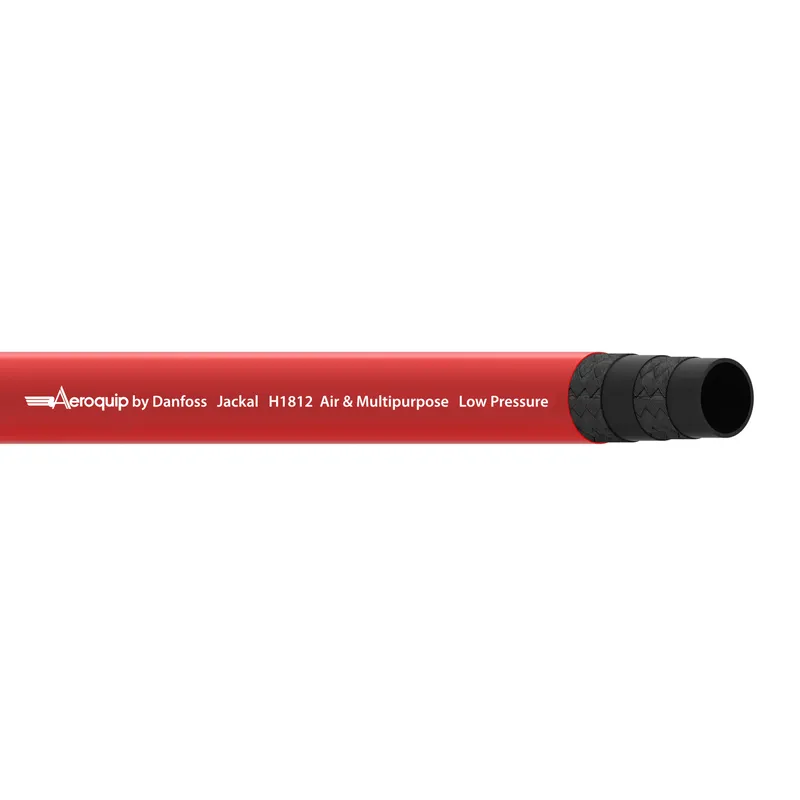

Danfoss H181220-300R

HOSE-BOS,H1812,-20,AIR/MULTI,RD,300FT

MPN
H181220-300R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H181220-300R?

Danfoss HOSE-BOS,H1812,-20,AIR/MULTI,RD,300FT, manufacturer part number H181220-300R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789266071
Abrasion resistanceStandard
ApplicationWater based fluids
BrandBoston by Danfoss
Burst pressure (bar)69
Burst pressure (psi)1000
ColorRed
ConductivityConductive
Construction2 Ply braid
Cover materialDura-Tuff (Vinyl nitrile)
Inside diameter (inch)1.25
Inside diameter (mm)31.80
Lay line styleInk jet
Length (in)3600.00000
Length (mm)91440.00000
Outside diameter (inch)1.75
Outside diameter (mm)44.45
Package formReel
Product height in1.250
Product height mm31.800
Product width in1.250
Product width mm31.800 mm
Qualified hose fittings4T
Reinforcement materialFabric
SeriesH1812 Jackal
Size-20
Tube materialEPDM
Working pressure max (bar)17
Working pressure max (psi)250
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H181220-300R: frequently asked questions

When can H181220-300R be shipped?

H181220-300R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H181220-300R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H181220-300R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H181220-300R, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss H181208-C3 – HOSE-BOS, H1812, -8, AIR/MULTI, RD, 3FT
Danfoss
H181208-C3

HOSE-BOS, H1812, -8, AIR/MULTI, RD, 3FT

Danfoss H181210-500R – HOSE-BOS,H1812,-10,AIR/MULTI,RD,500FT
Danfoss
H181210-500R

HOSE-BOS,H1812,-10,AIR/MULTI,RD,500FT

Danfoss H181212-500R – HOSE-BOS,H1812,-12,AIR/MULTI,RD,500FT
Danfoss
H181212-500R

HOSE-BOS,H1812,-12,AIR/MULTI,RD,500FT

Danfoss H181216-300R – HOSE-BOS,H1812,-16,AIR/MULTI,RD,300FT
Danfoss
H181216-300R

HOSE-BOS,H1812,-16,AIR/MULTI,RD,300FT

Danfoss H181224-300R – HOSE-BOS,H1812,-24,AIR/MULTI,RD,300FT
Danfoss
H181224-300R

HOSE-BOS,H1812,-24,AIR/MULTI,RD,300FT

Danfoss H19004 – HOSE-WTH, H190, -4, R1/1SN
Danfoss
H19004

HOSE-WTH, H190, -4, R1/1SN

Danfoss H19004-250R – HOSE-WTH, H190, -4, 250FT, RL, R1/1SN
Danfoss
H19004-250R

HOSE-WTH, H190, -4, 250FT, RL, R1/1SN

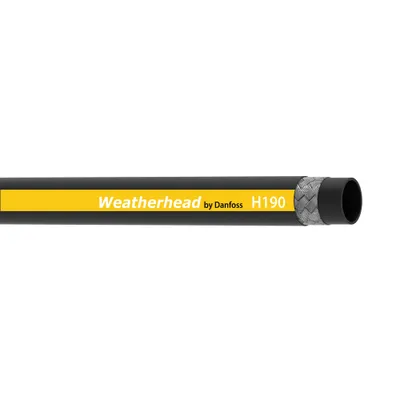

Danfoss H19006 – HOSE-WTH, H190, -6, R1/1SN
