What is the Danfoss H18016?

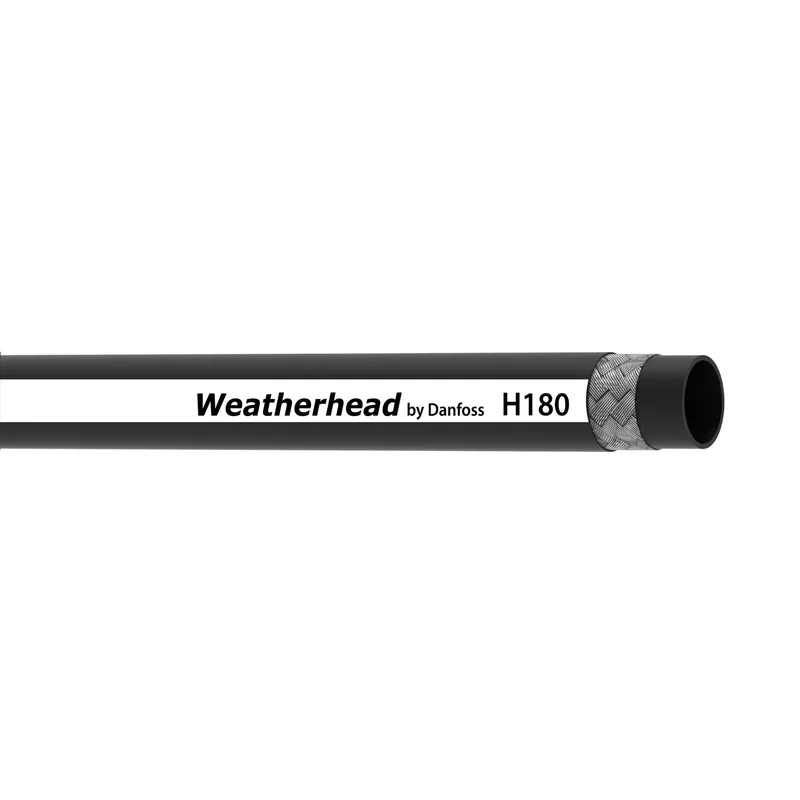

Danfoss HOSE-WTH, H180, -16, R1/1SC, manufacturer part number H18016. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC815628027090
Abrasion resistanceStandard
ApplicationWater
Bend radius min (inch)5.910
Bend radius min (mm)150.000
BrandWeatherhead by Danfoss
Burst pressure (bar)414
Burst pressure (psi)600
CertificationsUSCG
ColorBlack
CompliancesISO 1436-1 Type 1SN
Construction1 Wire Braid
Cover materialNitrile (NBR)
Impulse cycle (cycles)300000
Inside diameter (inch)1.00
Inside diameter (mm)25.40
Lay line styleInk transfer
Outside diameter (inch)1.34
Outside diameter (mm)34.00
Package formBulk
Product height in1.000
Product height mm25.400
Product width in1.000
Product width mm25.4
Qualified hose fittings1SA
Reinforcement materialBrass plated steel wire
SeriesH180 Hose
Size-16
Tube materialNitrile (NBR)
Vacuum rating (inHg)24
Vacuum rating (mmHg)599.44
Working pressure max (bar)103
Working pressure max (psi)1500
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-46
Working temperature min (F)-50.0
