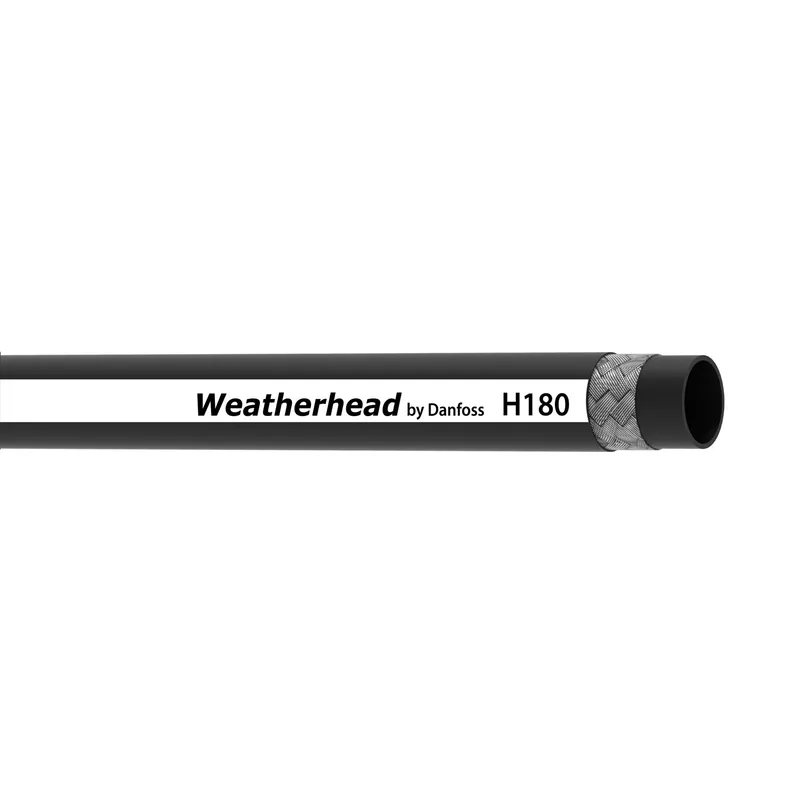

Danfoss H18006

HOSE-WTH, H180, -6, R1/1SC

MPN
H18006
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H18006?

Danfoss HOSE-WTH, H180, -6, R1/1SC, manufacturer part number H18006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC815628026994
Abrasion resistanceStandard
ApplicationWater
Bend radius min (inch)2.480
Bend radius min (mm)63.000
BrandWeatherhead by Danfoss
Burst pressure (bar)940
Burst pressure (psi)13600
CertificationsUSCG
ColorBlack
CompliancesISO 1436-1 Type 1SN
Construction1 Wire Braid
Cover materialNitrile (NBR)
Impulse cycle (cycles)300000
Inside diameter (inch)0.38
Inside diameter (mm)9.50
Lay line styleInk transfer
Outside diameter (inch)0.64
Outside diameter (mm)16.30
Package formBulk
Product height in0.380
Product height mm9.500
Product width in0.380
Product width mm9.5
Qualified hose fittings1SA
Reinforcement materialBrass plated steel wire
SeriesH180 Hose
Size-6
Tube materialNitrile (NBR)
Vacuum rating (inHg)24
Vacuum rating (mmHg)599.44
Working pressure max (bar)235
Working pressure max (psi)3400
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-46
Working temperature min (F)-50.0

H18006: frequently asked questions

When can H18006 be shipped?

H18006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H18006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H18006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H18006, subject to availability and destination.
