Danfoss H177704-500R

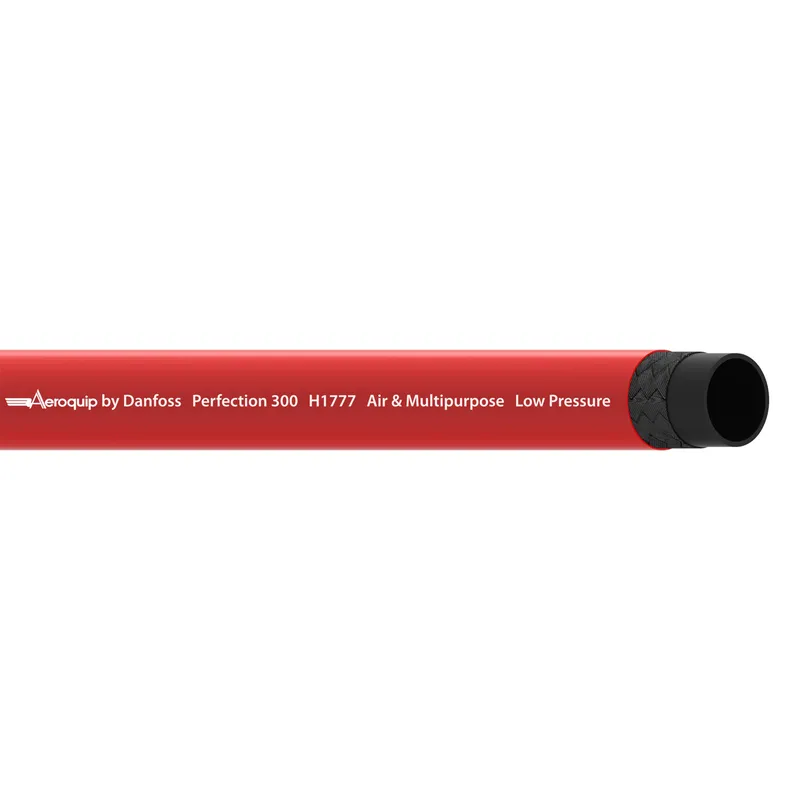

HOSE-BOS,H1777,-4,AIR/MULTI,RD,500FT

MPN
H177704-500R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H177704-500R?

Danfoss HOSE-BOS,H1777,-4,AIR/MULTI,RD,500FT, manufacturer part number H177704-500R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267528
Abrasion resistanceStandard
ApplicationWater
BrandBoston by Danfoss
Burst pressure (bar)90
Burst pressure (psi)1300
ColorRed
CompliancesASTM D380
ConductivityConductive
Construction1 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)0.25
Inside diameter (mm)8.40
Lay line styleInk jet
Length (in)6000.00000
Outside diameter (inch)0.51
Outside diameter (mm)12.95
Package formReel
Product height in0.250
Product height mm8.400
Product width in0.250
Product width mm8.400 mm
Qualified hose fittingsU Series
Reinforcement materialFabric
SeriesH1777 Series
Size-4
Tube materialNitrile (NBR)
Tube wall thickness (inch)0.13
Tube wall thickness (mm)3.18
Working pressure max (bar)22
Working pressure max (psi)325
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H177704-500R: frequently asked questions

When can H177704-500R be shipped?

H177704-500R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H177704-500R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H177704-500R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H177704-500R, subject to availability and destination.
