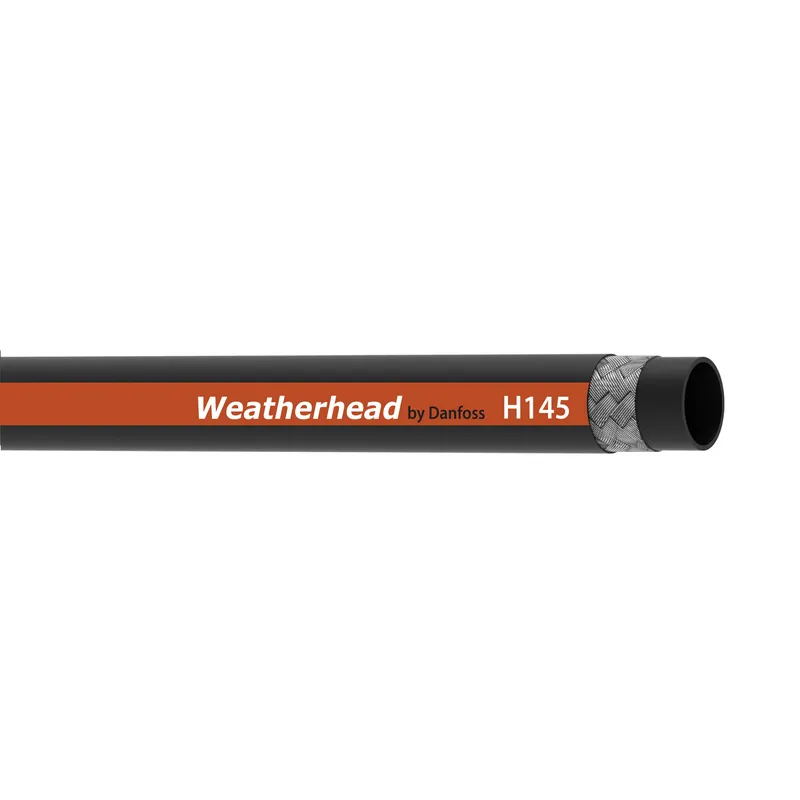

Danfoss H14512-250RM50

HOSE-WTH, H145, -12, 250FT, RL, R17

MPN
H14512-250RM50
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H14512-250RM50?

Danfoss HOSE-WTH, H145, -12, 250FT, RL, R17, manufacturer part number H14512-250RM50. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789321121
Abrasion resistanceUltra
ApplicationGeneral industrial use
Bend radius min (inch)4.720
Bend radius min (mm)120.000
BrandWeatherhead by Danfoss
Burst pressure (bar)840
Burst pressure (psi)12200
CertificationsUSCG
ColorBlack
CompliancesSAE 100R17
ConductivityConductive
Construction2 Wire Braid
Cover materialChloroprene (CR)
Impulse cycle (cycles)200000
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk transfer
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)1.12
Outside diameter (mm)28.45
Package formReel
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittings104 N
Reinforcement materialBrass plated steel wire
SeriesH145 Series
Size-12
Tube materialNitrile (NBR)
Tube wall thickness (inch)0.20
Tube wall thickness (mm)5.16
Working pressure max (bar)210
Working pressure max (psi)3050
Working temperature max (C)100
Working temperature max (F)212.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H14512-250RM50: frequently asked questions

When can H14512-250RM50 be shipped?

H14512-250RM50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H14512-250RM50 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H14512-250RM50 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H14512-250RM50, subject to availability and destination.
