Danfoss H11512-550R

HOSE-BOS, H115, -5, AIR/MULTI, RD, 550FT

MPN
H11512-550R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

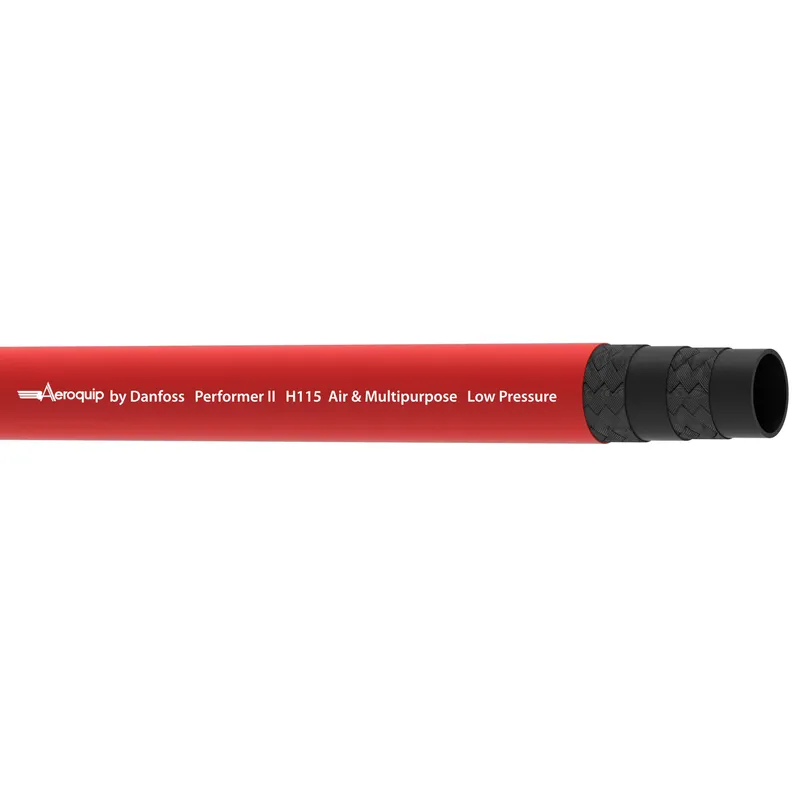

What is the Danfoss H11512-550R?

Danfoss HOSE-BOS, H115, -5, AIR/MULTI, RD, 550FT, manufacturer part number H11512-550R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975011157
Abrasion resistanceStandard
ApplicationAir
Bend radius min (inch)3.500
Bend radius min (mm)88.900
BrandBoston by Danfoss
Burst pressure (bar)83
Burst pressure (psi)1200
ColorRed
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)0.31
Inside diameter (mm)7.90
Lay line styleInk jet
Length (in)6600.00000
Outside diameter (inch)0.66
Outside diameter (mm)16.70
Package formReel
Product height in0.310
Product height mm7.900
Product width in0.310
Product width mm7.900 mm
Qualified hose fittingsDanfoss quick disconnect
Reinforcement materialFabric
SeriesH115 Series
Size-5
Tube materialNitrile (NBR)
Working pressure max (bar)21
Working pressure max (psi)300
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H11512-550R: frequently asked questions

When can H11512-550R be shipped?

H11512-550R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H11512-550R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H11512-550R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H11512-550R, subject to availability and destination.
