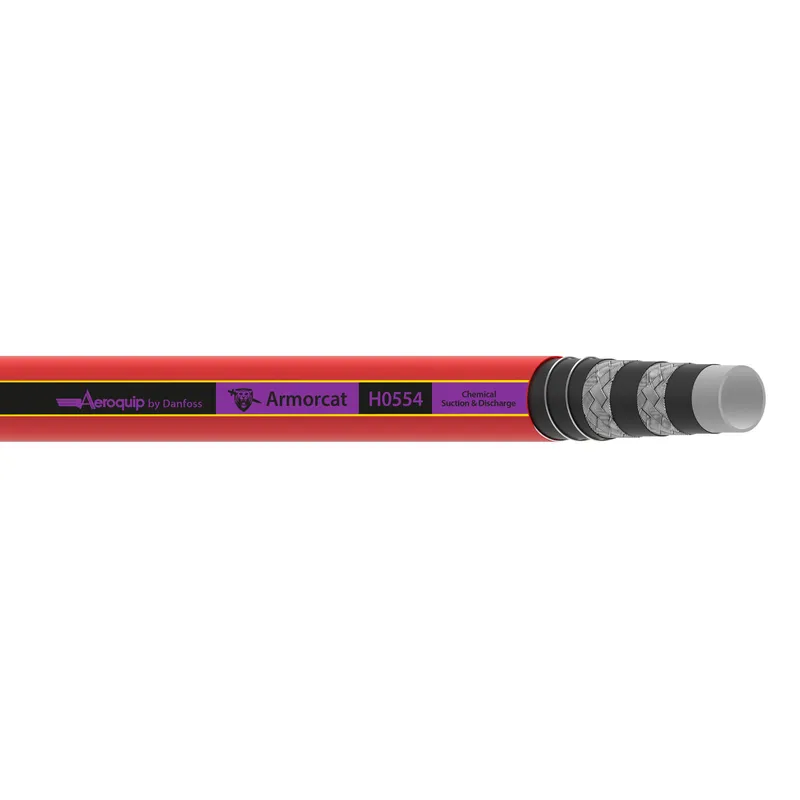

Danfoss H055424-150

HOSE-BOS,H0554,-24,CHEMICAL,RD,150FT

MPN
H055424-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H055424-150?

Danfoss HOSE-BOS,H0554,-24,CHEMICAL,RD,150FT, manufacturer part number H055424-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789270399
Abrasion resistanceStandard
ApplicationWater discharge
Bend radius min (inch)8.000
Bend radius min (mm)203.200
BrandBoston by Danfoss
Burst pressure (bar)140
Burst pressure (psi)2000
CertificationsFDA Approved
ColorRed
CompliancesASTM D380
ConductivityConductive
Construction2 Wire Braid
Cover materialEPDM
Inside diameter (inch)1.50
Inside diameter (mm)38.10
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)1.97
Outside diameter (mm)50.04
Package formReel
Product height in1.500
Product height mm38.100
Product width in1.500
Product width mm38.100 mm
Qualified hose fittingsCam and groove
Reinforcement materialBrass plated steel wire
SeriesH0554 Series
Size-24
Tube materialUHMW
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)35
Working pressure max (psi)500
Working temperature max (C)80
Working temperature max (F)176.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H055424-150: frequently asked questions

When can H055424-150 be shipped?

H055424-150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H055424-150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H055424-150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H055424-150, subject to availability and destination.
