Danfoss H052348GN

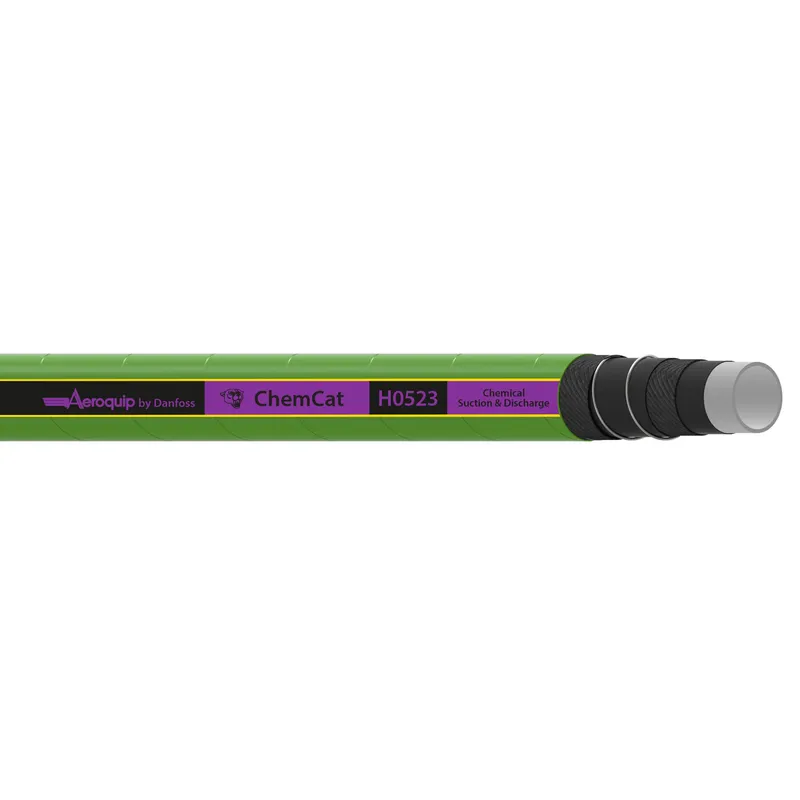

HOSE-BOS, H0523, -48, CHEMICAL, GRN

MPN
H052348GN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H052348GN?

Danfoss HOSE-BOS, H0523, -48, CHEMICAL, GRN, manufacturer part number H052348GN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789275035
Abrasion resistanceStandard
ApplicationFood transfer
Bend radius min (inch)9.020
Bend radius min (mm)229.000
BrandBoston by Danfoss
Burst pressure (bar)69
Burst pressure (psi)1000
ColorGreen
CompliancesASTM D380
ConductivityConductive
Construction4 Ply braid
Cover materialEPDM
Impulse cycle (cycles)150000
Inside diameter (inch)3.00
Inside diameter (mm)76.20
Lay line styleInk transfer
Outside diameter (inch)3.63
Outside diameter (mm)92.20
Package formBulk
Product height in3.000
Product height mm76.200
Product width in3.000
Product width mm76.200 mm
Qualified hose fittingsU Series
Reinforcement materialFabric
SeriesH0523 Series
Size-48
Tube materialUHMW
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)17
Working pressure max (psi)250
Working temperature max (C)80
Working temperature max (F)176.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H052348GN: frequently asked questions

When can H052348GN be shipped?

H052348GN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H052348GN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H052348GN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H052348GN, subject to availability and destination.
