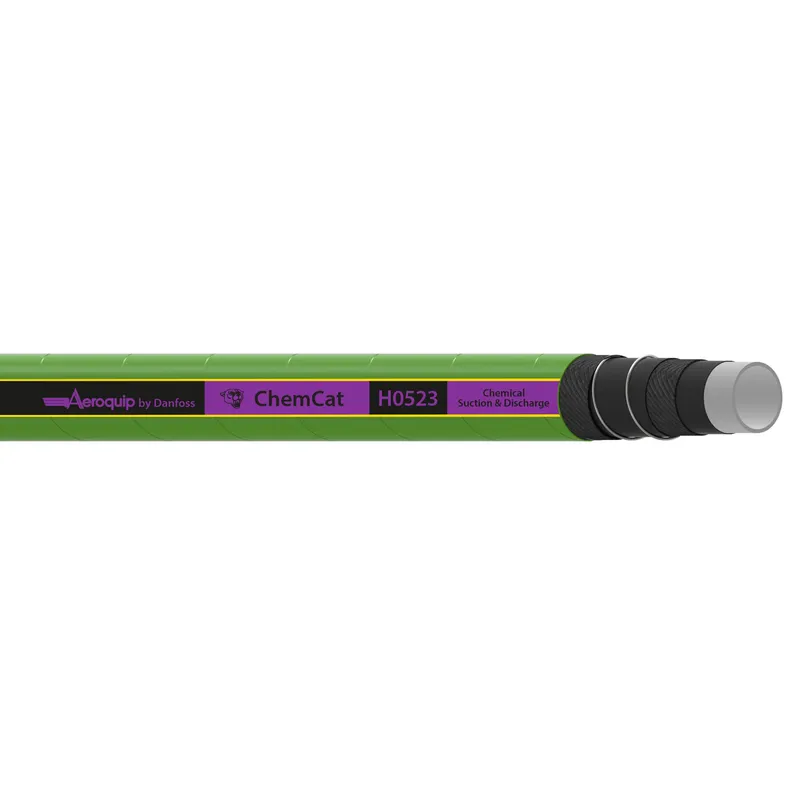

Danfoss H052324GN-100

HOSE-BOS,H0523,-24,CHEMICAL,GRN,100FT

MPN
H052324GN-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H052324GN-100?

Danfoss HOSE-BOS,H0523,-24,CHEMICAL,GRN,100FT, manufacturer part number H052324GN-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789355171
Abrasion resistanceStandard
ApplicationFood transfer
Bend radius min (inch)7.520
Bend radius min (mm)191.000
BrandBoston by Danfoss
Burst pressure (bar)83
Burst pressure (psi)1200
ColorGreen
CompliancesASTM D380
ConductivityConductive
Construction4 Ply braid
Cover materialEPDM
Impulse cycle (cycles)150000
Inside diameter (inch)1.50
Inside diameter (mm)38.10
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)2.13
Outside diameter (mm)54.10
Package formReel
Product height in1.500
Product height mm38.100
Product width in1.500
Product width mm38.100 mm
Qualified hose fittingsU Series
Reinforcement materialFabric
SeriesH0523 Series
Size-24
Tube materialUHMW
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)21
Working pressure max (psi)300
Working temperature max (C)80
Working temperature max (F)176.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H052324GN-100: frequently asked questions

When can H052324GN-100 be shipped?

H052324GN-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H052324GN-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H052324GN-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H052324GN-100, subject to availability and destination.
