Danfoss H03920-150

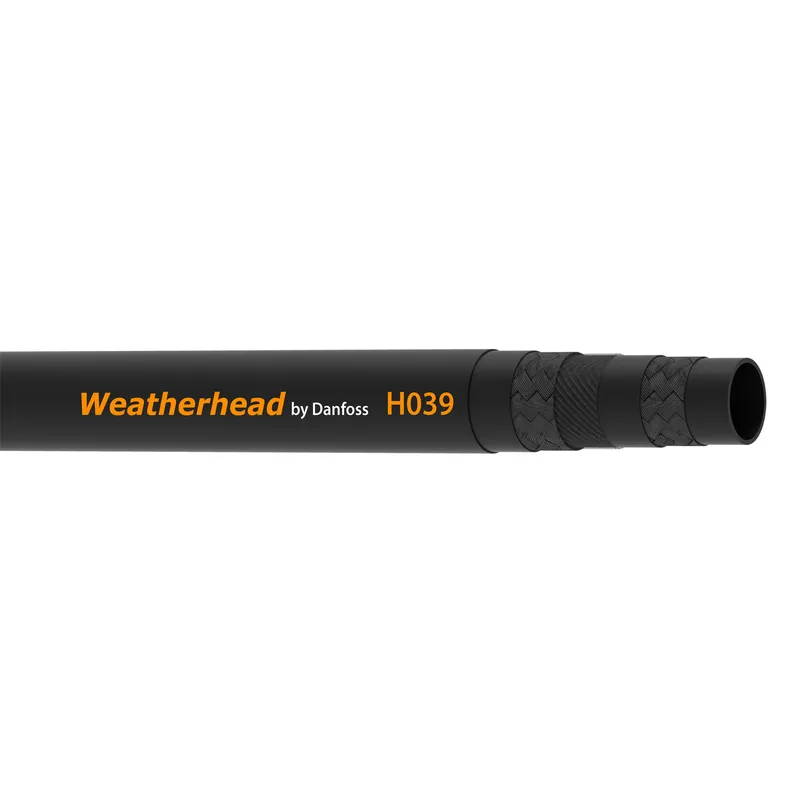

HOSE-WTH, H039, -20, 150FT, RL, R4

MPN
H03920-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H03920-150?

Danfoss HOSE-WTH, H039, -20, 150FT, RL, R4, manufacturer part number H03920-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC757522761802
Abrasion resistanceStandard
ApplicationPetroleum oilfield explore
Bend radius min (inch)2.360
Bend radius min (mm)60.000
BrandWeatherhead by Danfoss
Burst pressure (bar)56
Burst pressure (psi)820
CertificationsABS
ColorBlack
CompliancesSAE 100R4
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)1.25
Inside diameter (mm)31.80
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)1.76
Outside diameter (mm)44.70
Package formReel
Product height in1.250
Product height mm31.800
Product width in1.250
Product width mm31.8
Qualified hose fittingsFJ
Reinforcement materialFabric
SeriesH039 Series
Size-20
Tube materialChlorinated Polyethylene (CPE)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)14
Working pressure max (psi)205
Working temperature max (C)135
Working temperature max (F)275.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H03920-150: frequently asked questions

When can H03920-150 be shipped?

H03920-150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H03920-150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H03920-150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H03920-150, subject to availability and destination.
