Danfoss H034596-150

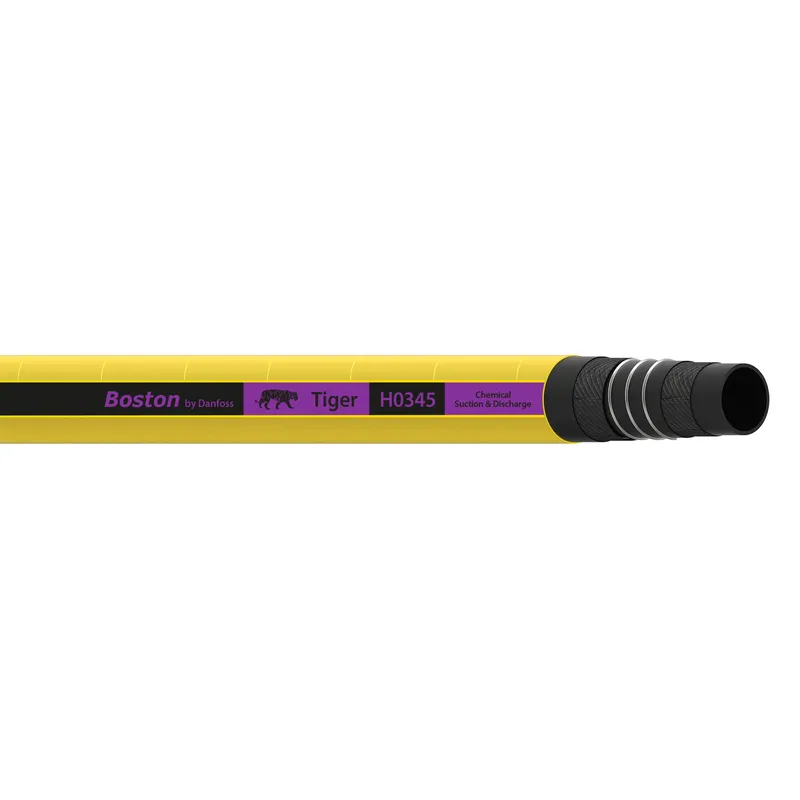

HOSE-BOS,H0345,-96,CHEMICAL,YW,150FT

MPN
H034596-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H034596-150?

Danfoss HOSE-BOS,H0345,-96,CHEMICAL,YW,150FT, manufacturer part number H034596-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789270115
Abrasion resistanceStandard
ApplicationLoading and unloading petrol
Bend radius min (inch)30.000
Bend radius min (mm)762.000
BrandBoston by Danfoss
Burst pressure (bar)52
Burst pressure (psi)750
ColorYellow
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialEPDM
Inside diameter (inch)6.00
Inside diameter (mm)152.40
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)7.21
Outside diameter (mm)183.13
Package formReel
Product height in6.000
Product height mm152.400
Product width in6.000
Product width mm152.400 mm
Qualified hose fittingsCam and groove
Reinforcement materialFabric
SeriesH0345 Series
Size-96
Tube materialEPDM
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)11
Working pressure max (psi)150
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-43
Working temperature min (F)-45.0

H034596-150: frequently asked questions

When can H034596-150 be shipped?

H034596-150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H034596-150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H034596-150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H034596-150, subject to availability and destination.
